Old 10-25-2009, 01:17 AM   #11
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Having the switch off on the compressor wouldn't cause the pump to over inflate. Not sure on all the years, but there is a control in the trunk right here.

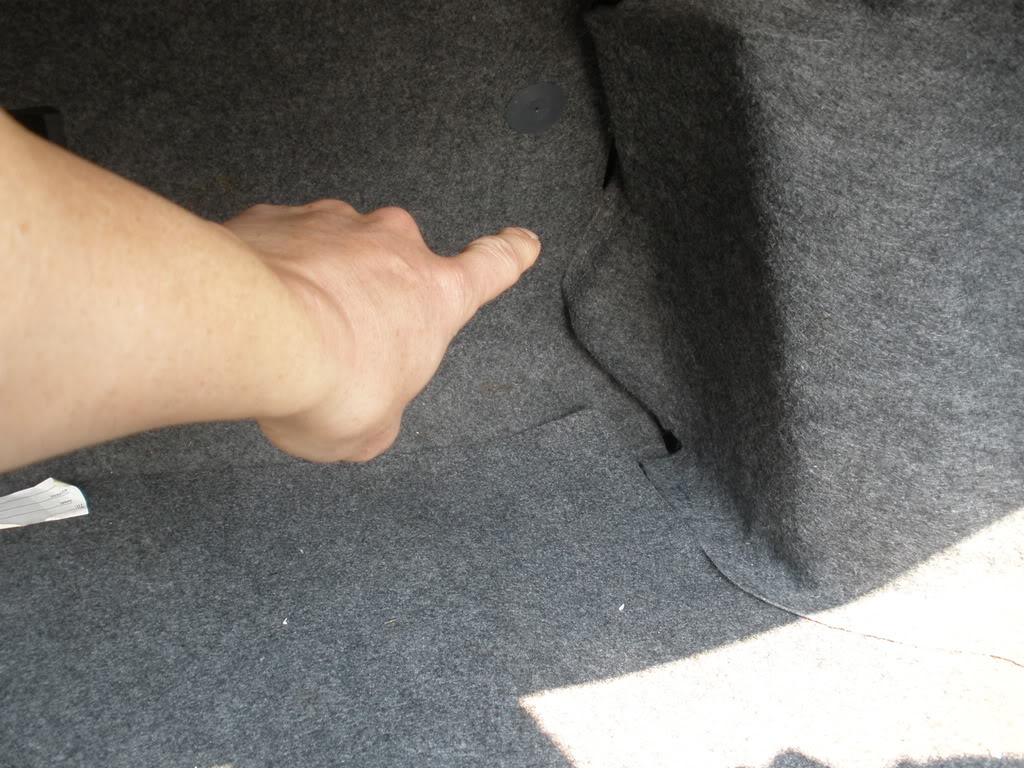

Name:  P9210002.jpg
Views: 10
Size:  165.7 KB

Pull back the liner and you should see it.

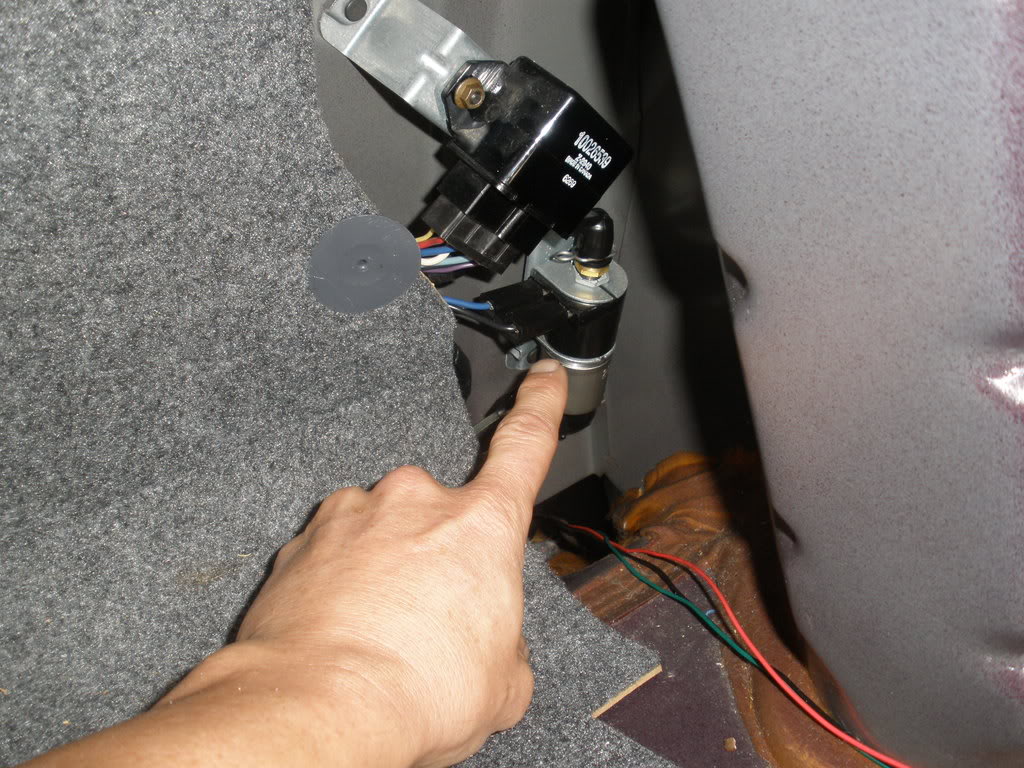

Name:  P9210001.jpg
Views: 11
Size:  166.2 KB

Now your year may be different. Now if that plug was some how hit hard and the plug was knocked out or damaged, it would cause the problem your having.
Danthurs is offline   Reply With Quote
Old 10-25-2009, 04:32 PM   #12
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
maxpower10 is on a distinguished road
Default No Button

Nope, no button to the left or right of the latch. Nice flat spot where one might be mounted but no button. I just saw the above pictures, I will have to look there next.

Last edited by maxpower10; 10-25-2009 at 04:33 PM.
maxpower10 is offline   Reply With Quote
Old 10-30-2009, 04:02 PM   #13
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
maxpower10 is on a distinguished road
Default 2005 Bonnevile SE Trunk Photos

Here is a link to some photos of my trunk.

http://picasaweb.google.com/Scott.Ke...eat=directlink

Thanks

Last edited by maxpower10; 10-30-2009 at 04:03 PM.
maxpower10 is offline   Reply With Quote
Old 10-30-2009, 04:21 PM   #14
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by 2kg4u View Post
The height sensor mechanism is just inboard and forward of the rear left tire. Remove the left rear tire and look for a mechanism with an arm (height sensor arm) coming out to the rear, and a rod (sensor link)attached to the arm. Look at the components to see if anything looks damaged, disconnected or out of place.

Accessory inflator button, RIM and height sensor mechanism are the most likely culprits.
Did you look at the height sensor mechanism?
2kg4u is offline   Reply With Quote
Old 01-03-2010, 10:00 AM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
maxpower10 is on a distinguished road
Default

It does not look damaged or unplugged.
maxpower10 is offline   Reply With Quote
Old 01-03-2010, 02:15 PM   #16
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

I would pull the ELC switch out and test it. It'* located in the left rear wheel well. I believe the switch is normally open and would probably indicate a closed at all position with a DMM.
Purplehazeir is offline   Reply With Quote
Old 01-04-2010, 01:15 AM   #17
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

I have the height lever and switch it connects to, and the Rear integration module out of a 00 SSEi. If you think it will work for you, I'd let them go cheap. $25 shipped. They should work, but I have not tested them personally.
JimmyFloyd is offline   Reply With Quote
Old 01-04-2010, 04:07 AM   #18
Member
Posts like a V-Tak

huntsville88SSE's Avatar

Join Date: Dec 2009
Location: Huntsville AL
Posts: 88
Thanks: 0
Thanked 0 Times in 0 Posts
huntsville88SSE is on a distinguished road
Default

Do the 88 SSE have the Same System.. Level the Shock.. My Left drive side look lower then the Right..
huntsville88SSE is offline   Reply With Quote
Old 01-04-2010, 02:52 PM   #19
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

I believe they have a similar system. They did have the rear air assist, and if you have the trunk inflator, there is a good chance you have it. i would also check the mounts and springs if they are not level side to side.
JimmyFloyd is offline   Reply With Quote
