Old 03-14-2006, 01:57 PM   #11
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Cold Solder Joint bud......think reflow solder...
BillBoost37 is offline
Old 03-14-2006, 04:30 PM   #12
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

What do you mean Bill? Quote " Cold Solder Joint bud......think reflow solder..".
jdq is offline
Old 03-14-2006, 04:32 PM   #13
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

Quote:
Originally Posted by jdq
What do you mean Bill? Quote " Cold Solder Joint bud......think reflow solder..".
cold solder joint is like a bad weld. you can see the weld, but it isn't holding anything. Reflowing is just reheating the solder so it makes a proper joint.
sonoma_zr2 is offline
Old 03-14-2006, 08:07 PM   #14
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

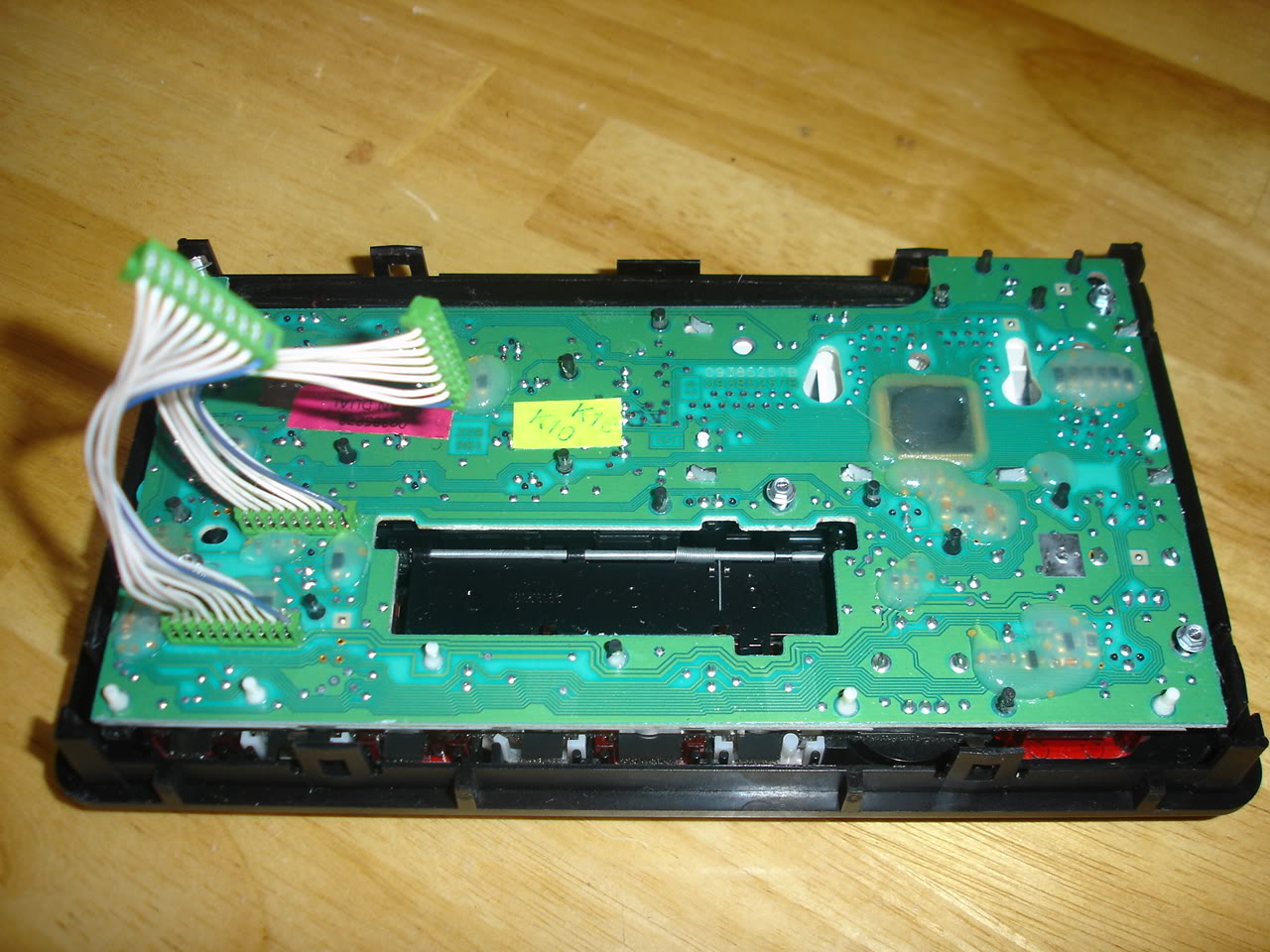

but look at this pic.. i didnt mess with any of the other circuits... where would i even begin to reflow?

Name:  DSC00313.jpg
Views: 42
Size:  201.2 KB
harofreak00 is offline
Old 03-14-2006, 08:10 PM   #15
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

resolder your 3 bulb leads. That'* where the cold solder joints will most likely be.
sonoma_zr2 is offline
Old 03-14-2006, 08:15 PM   #16
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

if all 3 bulbs work.. the circuit is complete....
harofreak00 is offline
Old 03-14-2006, 10:29 PM   #17
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Cold solder joints occur most often with larger connections - so, start with those....in particular the large ground connections. I'd also suggest trying all the connections to the LCD display. Sometimes, if you look real closely with a magnifying glass, you can see a little crack around the lead where it has broken loose from the solder. The connection could also have a duller appearance, rather than the shiny one of a good connection.

**Edit - Outstanding write-up!
Archon is offline
Old 06-13-2006, 02:54 AM   #18
Junior Member

Join Date: Jun 2006
Location: McMinnville, OR
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
ludwig67 is on a distinguished road
Default

I have similar problem. Only my display lights (center and right) are out. But your pictures don't display how you replaced the display lights, only the three along the bottom of the panel. How did you replace the 3 lamps in the display?
ludwig67 is offline
Old 06-13-2006, 03:11 AM   #19
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

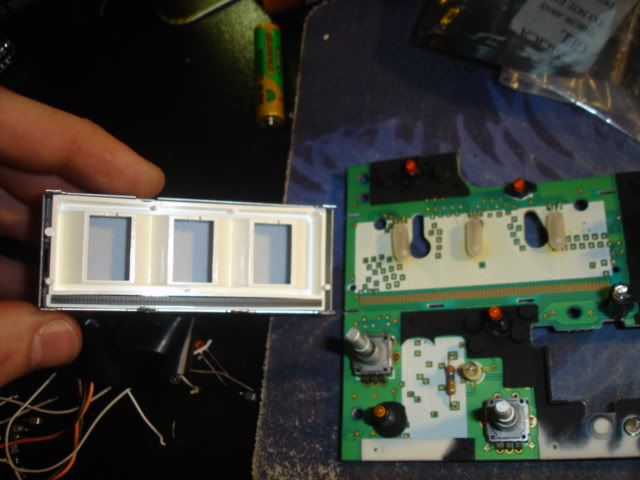

Name:  DSC00635.jpg
Views: 39
Size:  42.8 KB

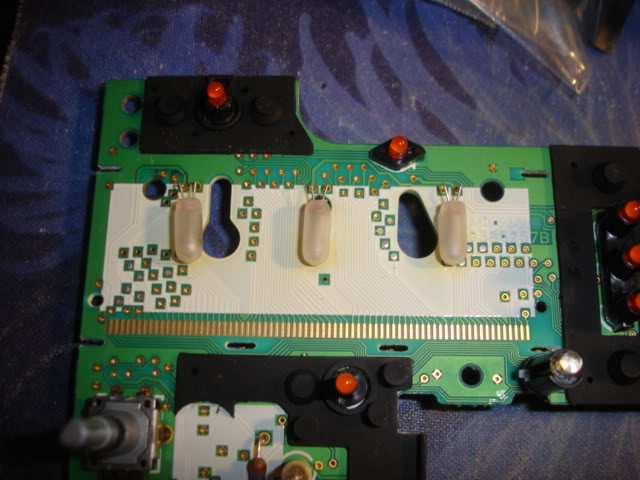

Name:  DSC00634.jpg
Views: 41
Size:  54.2 KB
harofreak00 is offline
Old 06-13-2006, 03:37 AM   #20
Junior Member

Join Date: Jun 2006
Location: McMinnville, OR
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
ludwig67 is on a distinguished road
Default

Thanks, that helps a lot. Kudos for the fantastic pics!
