Default the radio light fix 00+

basic rundown of what you are gonna see

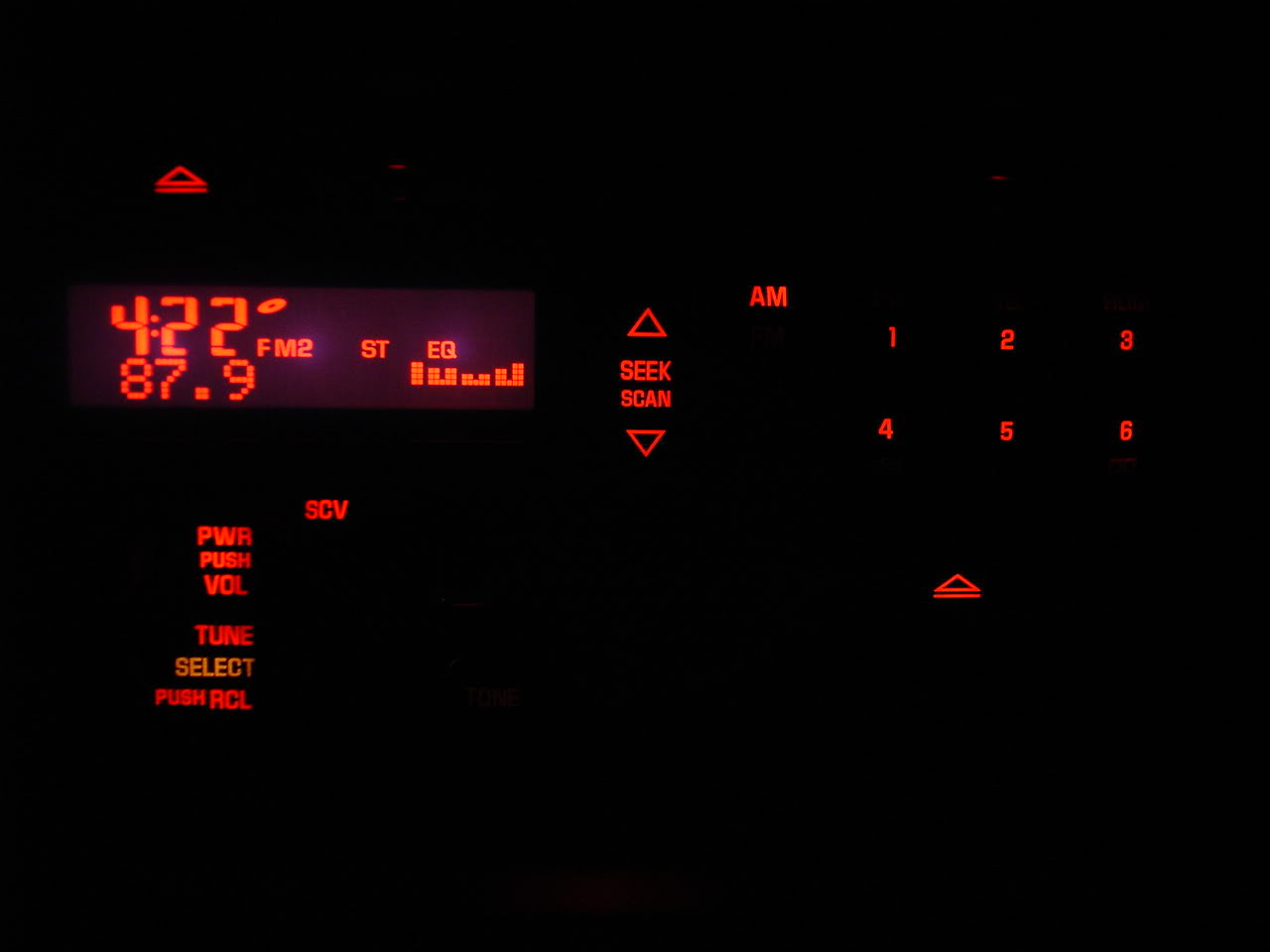

so your radio is missing bulbs....
Name:  DSC07533.jpg
Views: 82
Size:  37.9 KB

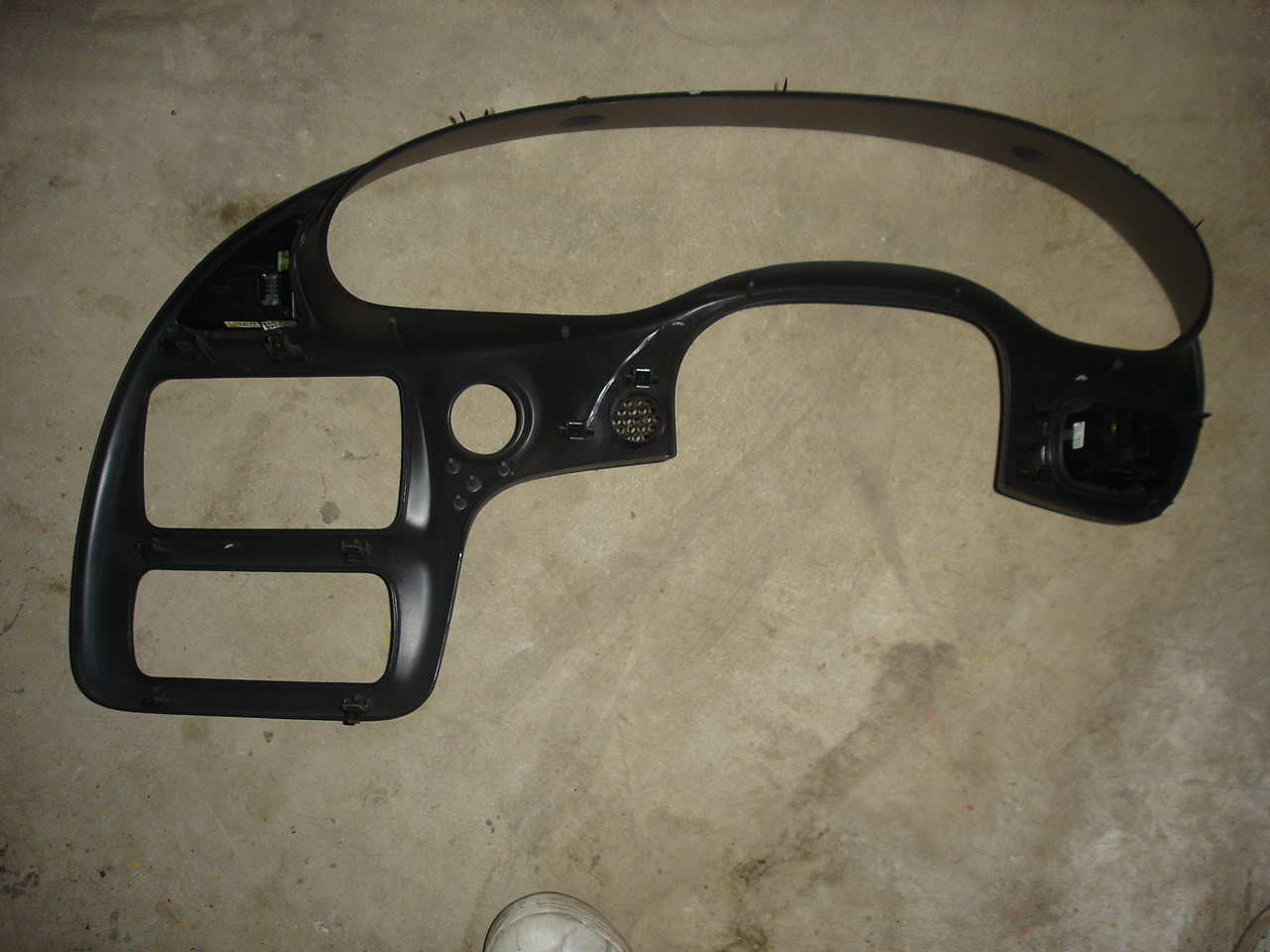

after pulling off the dash, no screws,
Name:  DSC00306.jpg
Views: 76
Size:  111.6 KB

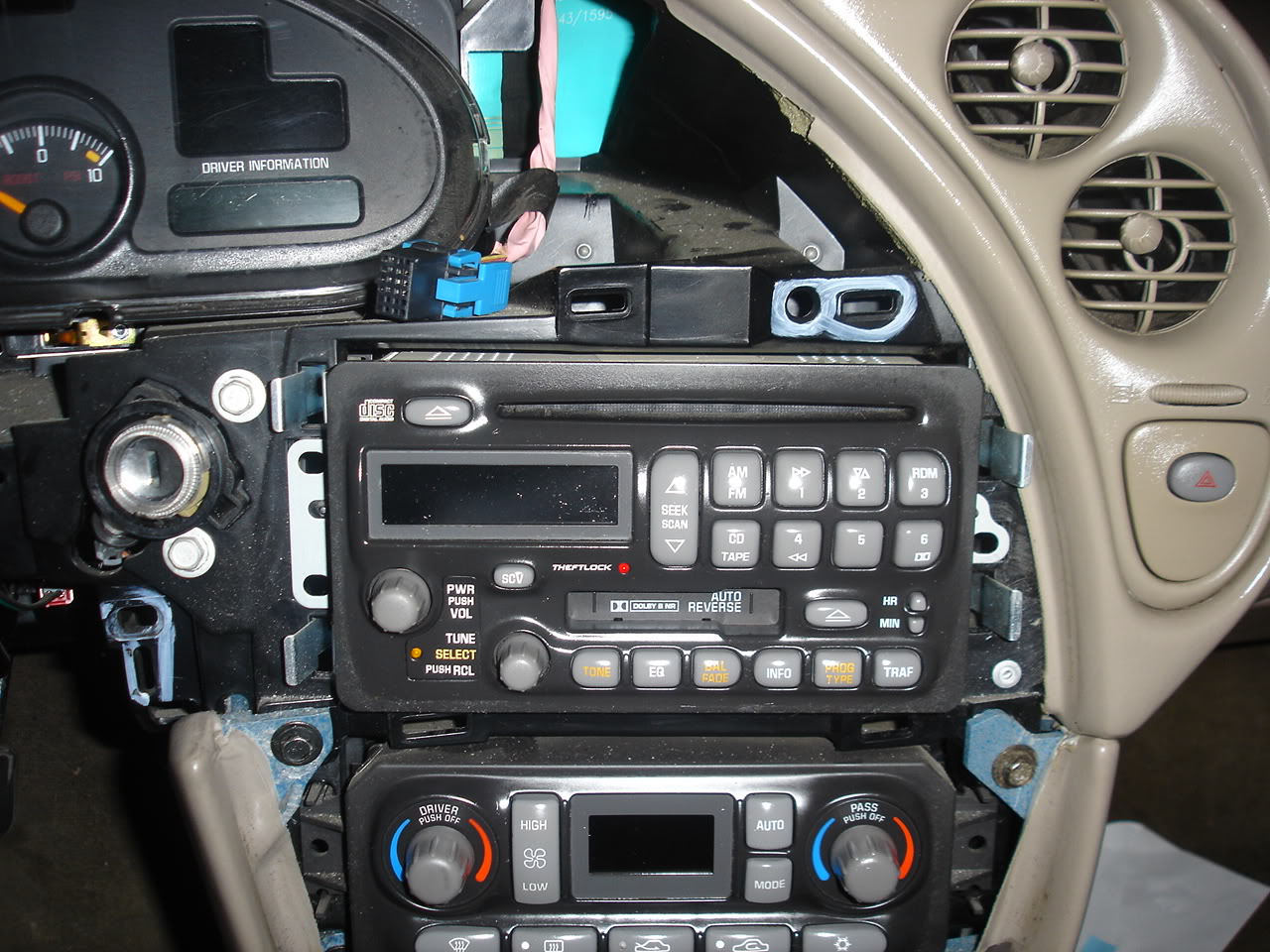

you will see that the radio just pulls right out with 4 clups
Name:  DSC00300.jpg
Views: 84
Size:  229.7 KB

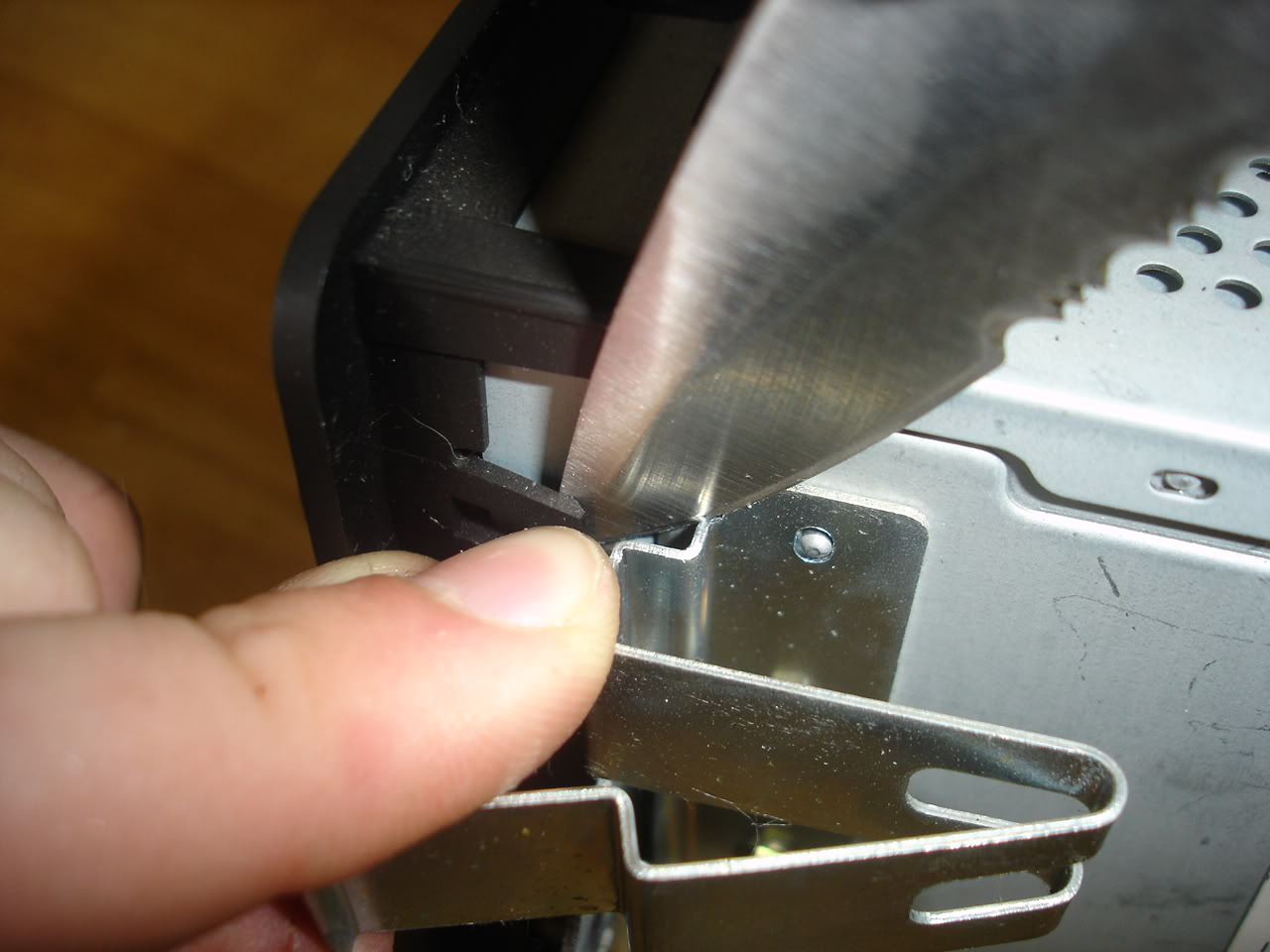

start taking apart the radio by prying all the tabs round the face
Name:  DSC00310.jpg
Views: 72
Size:  102.9 KB

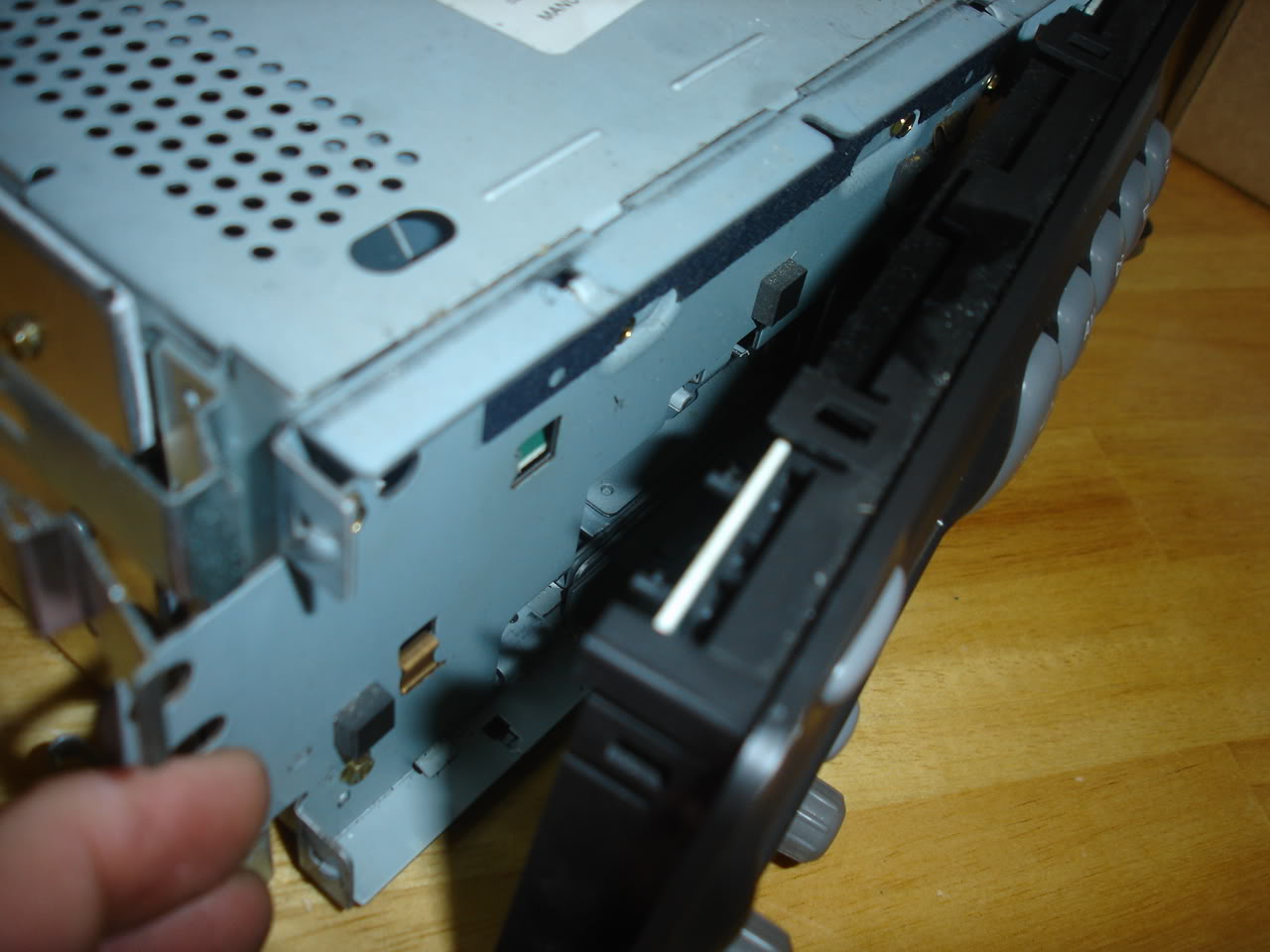

and the front comes off except for the 2 wire connectorsName:  DSC00311.jpg
Views: 73
Size:  103.9 KB

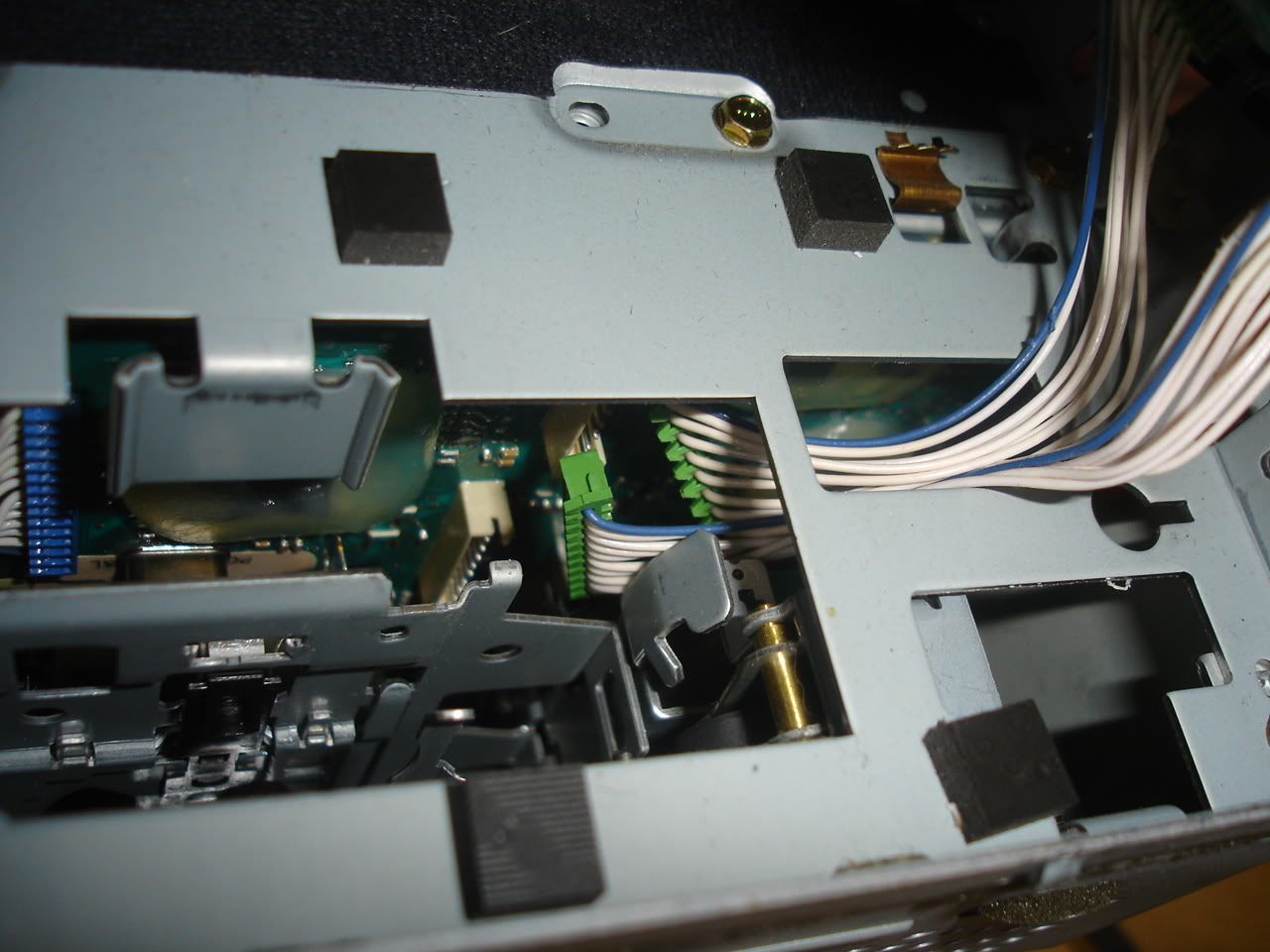

they are removed with a needle nose pliers inside the unit
Name:  DSC00312.jpg
Views: 75
Size:  128.5 KB

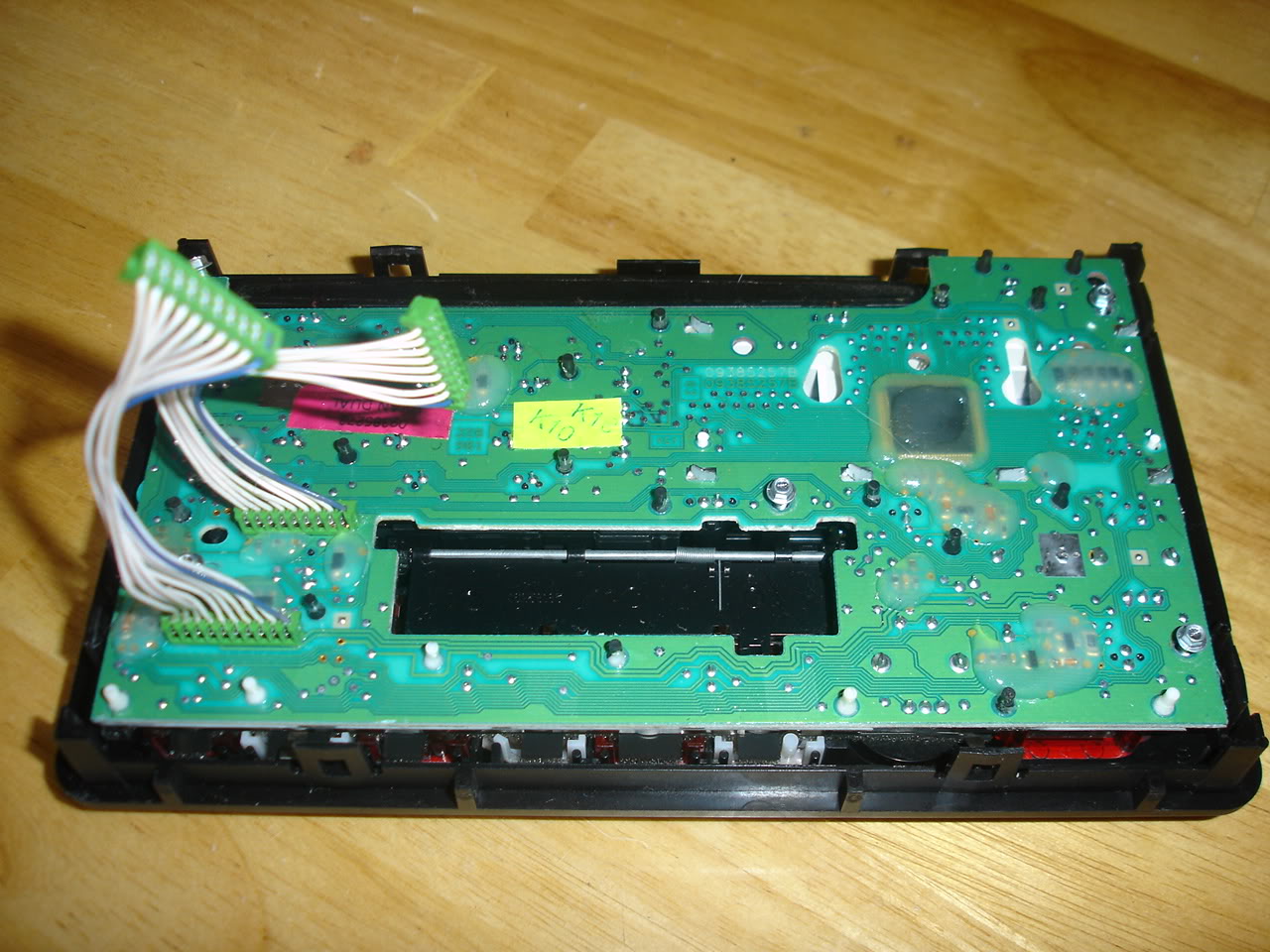

get the face off and it looks like this, remove the 5 small *** screws and it all comes apart
Name:  DSC00313.jpg
Views: 75
Size:  201.2 KB

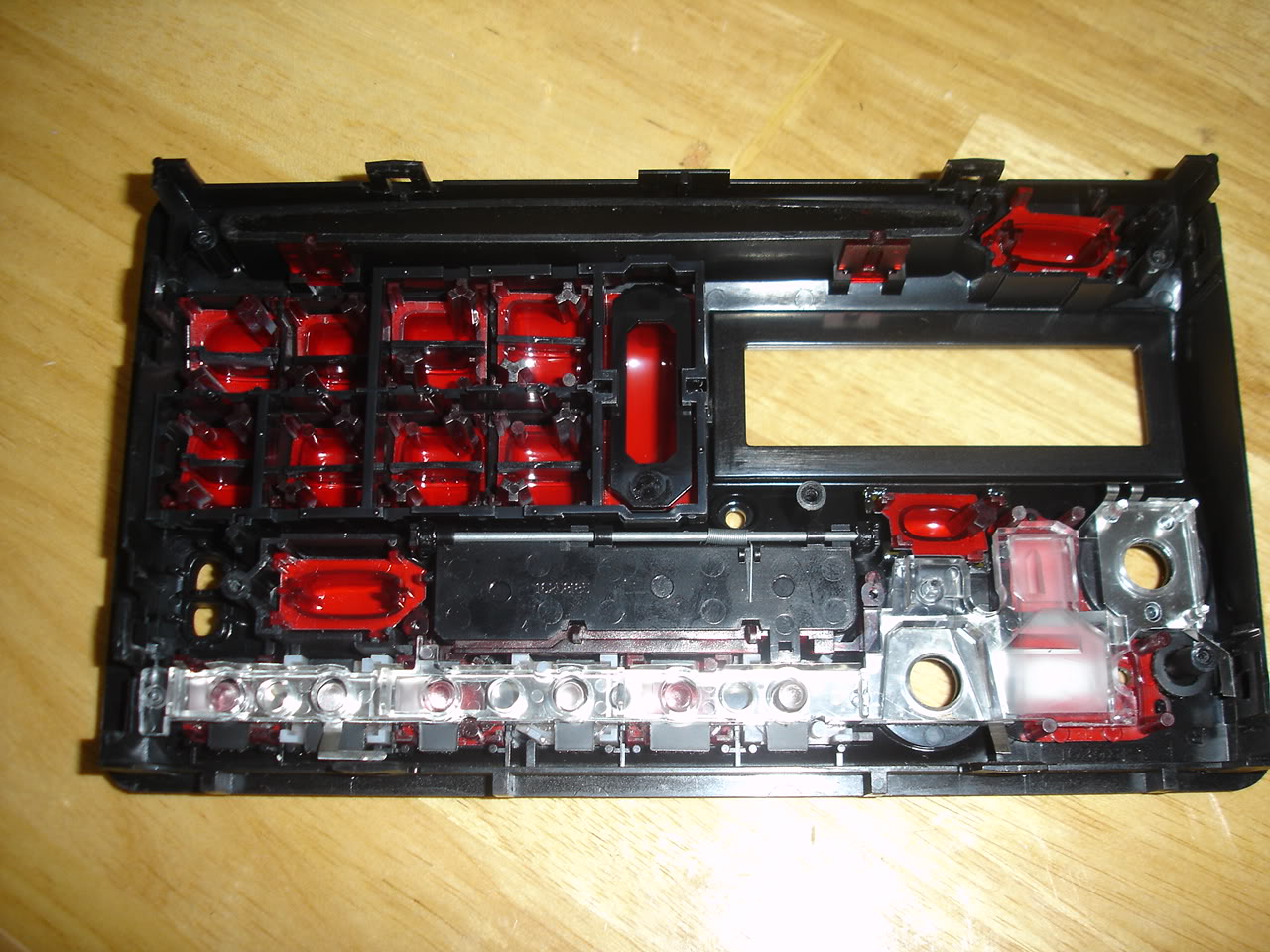

here is the back of the face buttons
Name:  DSC00314.jpg
Views: 79
Size:  213.8 KB

and here is what your working on
Name:  DSC00315.jpg
Views: 76
Size:  156.5 KB

i ordered these 3 bulbs from corvetteradios.com
99 to 04 Pontiac,Aztek,GranAm,Sunfire,Ponvan,Montana 3ea Delco Replacement Light Bulbs $20+ $2 *&H


and they sent me these :*
GM 95-02 10 Delco Display bulbs $20 $2 *&H


here was the difference i was looking at... and i said hell with it and put them in

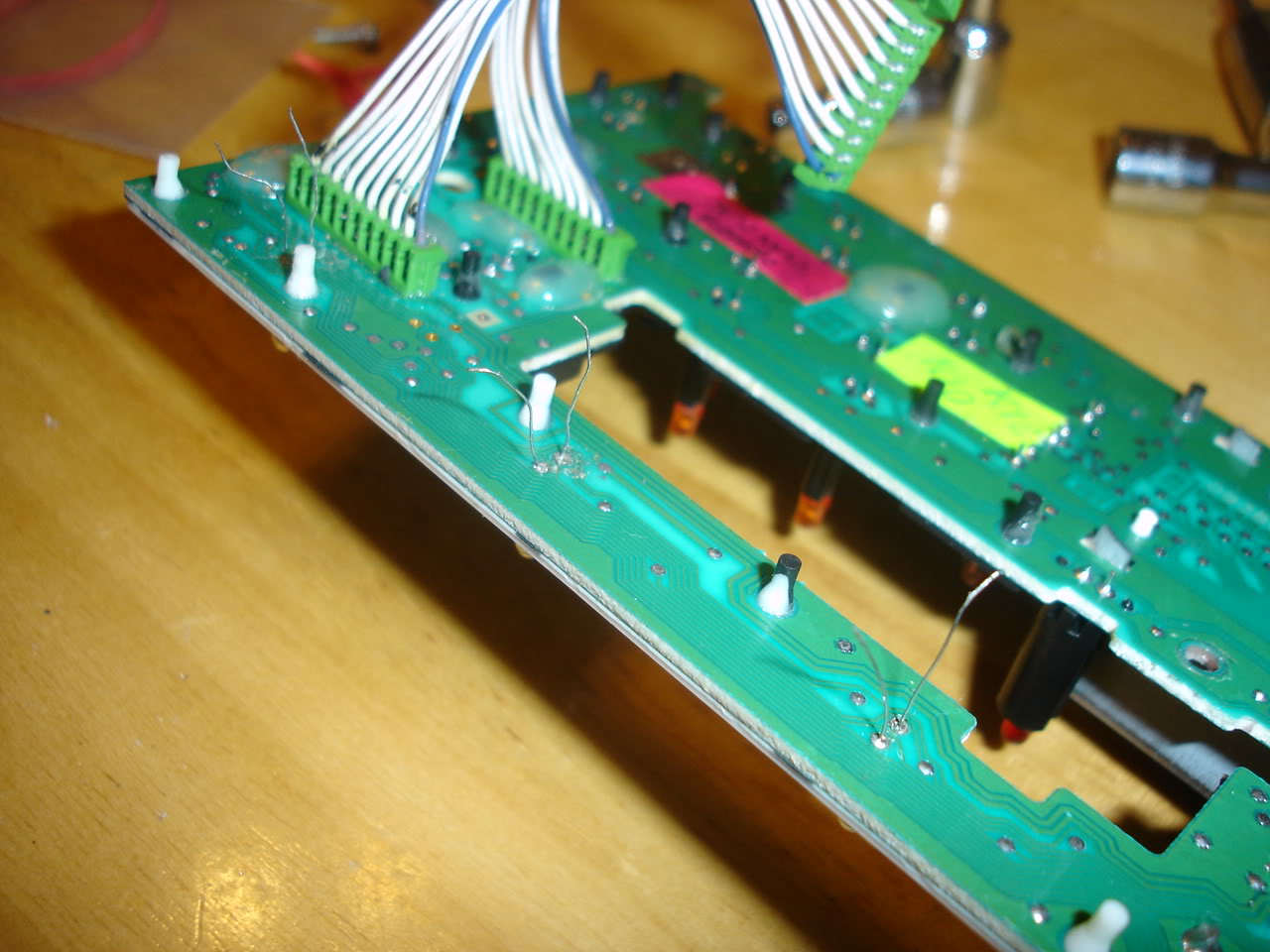

solder then to the board
Name:  DSC00321.jpg
Views: 75
Size:  140.7 KB

and put it back together
Name:  DSC00323.jpg
Views: 75
Size:  150.8 KB

and back in the car

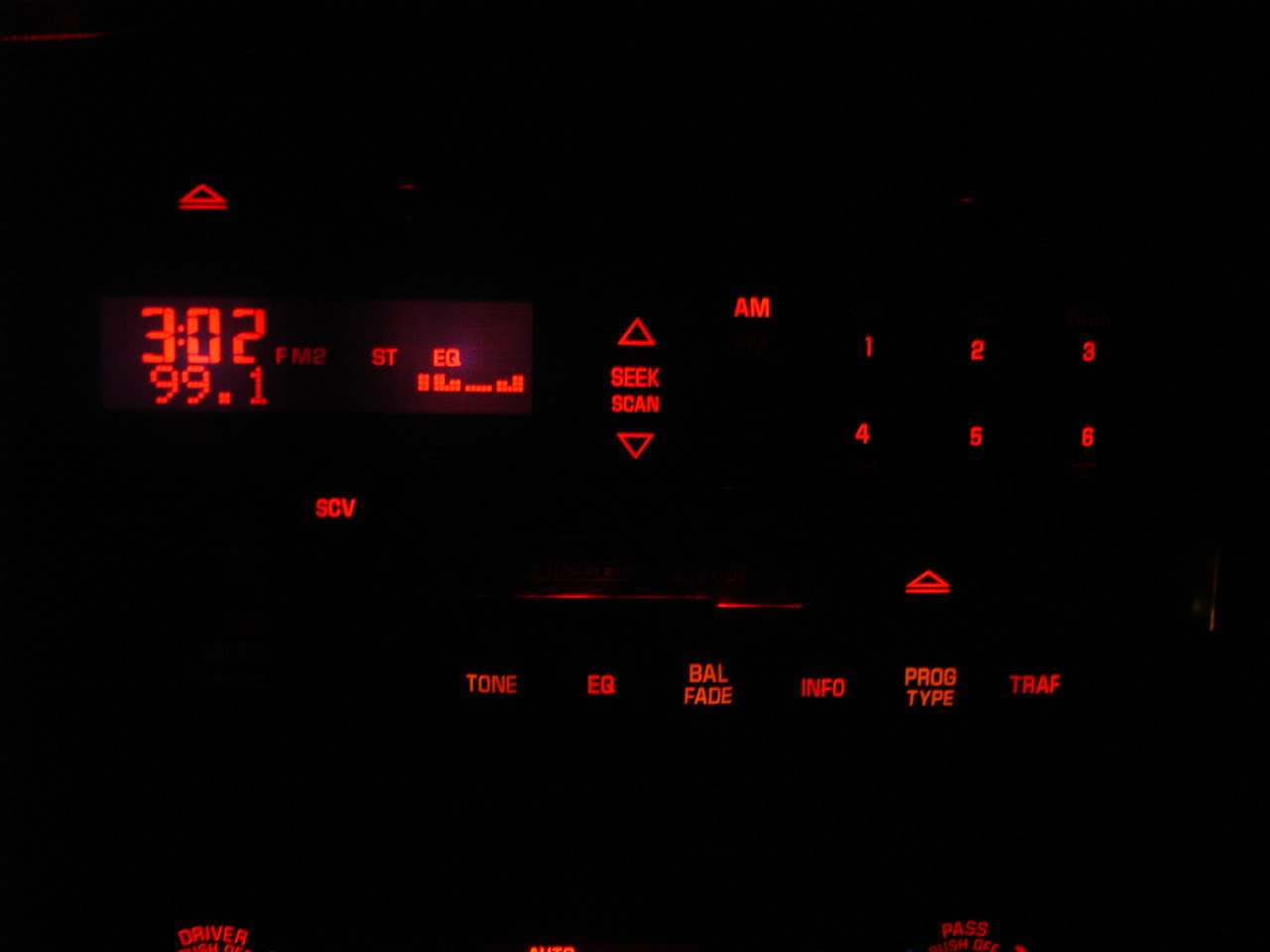

Name:  DSC00351.jpg
Views: 72
Size:  36.1 KB

2 problems!

something happened when i had it apart.. notice the display screen.. there isnt full light across is anymore, also i lost my volume and tune rotary buttons light... thinking this has something to do with the wires on the faceplate being incorrect...

also, i only replaced the 3 white bulbs, not any of the orange LED'* that light the numbers... radio shack did not have them, and i am going to order online... so you see in the last pic that the bottom row works fine, but some of the numbers are not lit.

i also replaced the red theftlock LED with a blue one

when i get the orange LED'* in... i will take it apart again and see why the display is not right
