Default pulling steering wheel on 00 bonnie

i have done this on other vehicles and it was NOT hard...

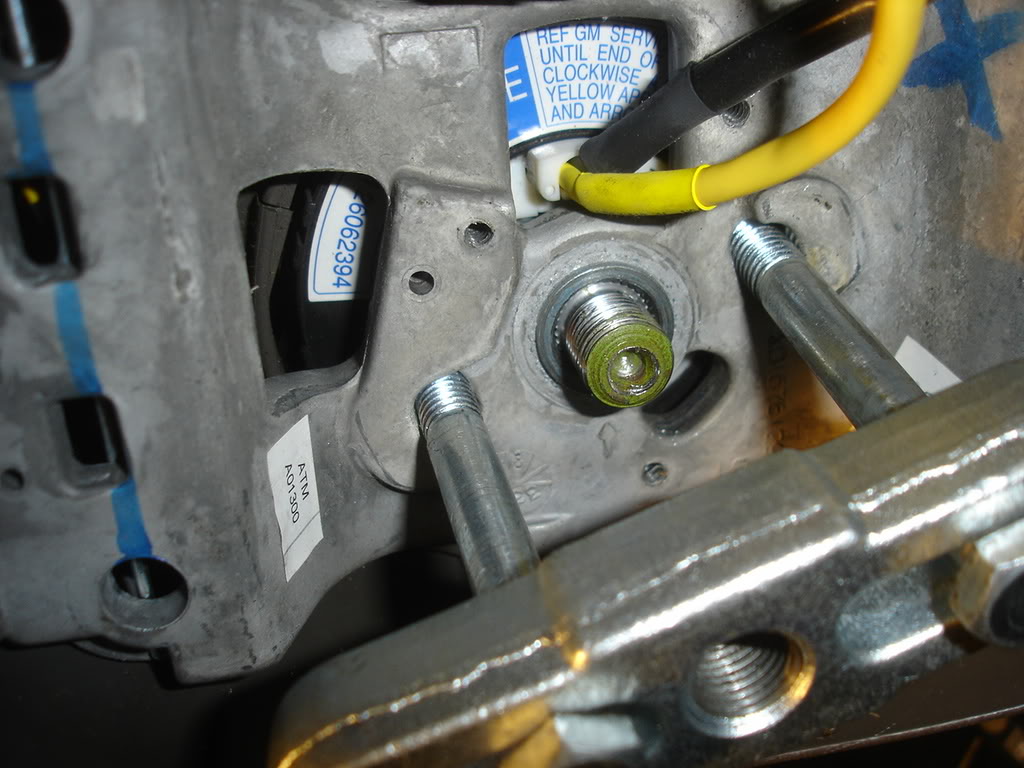

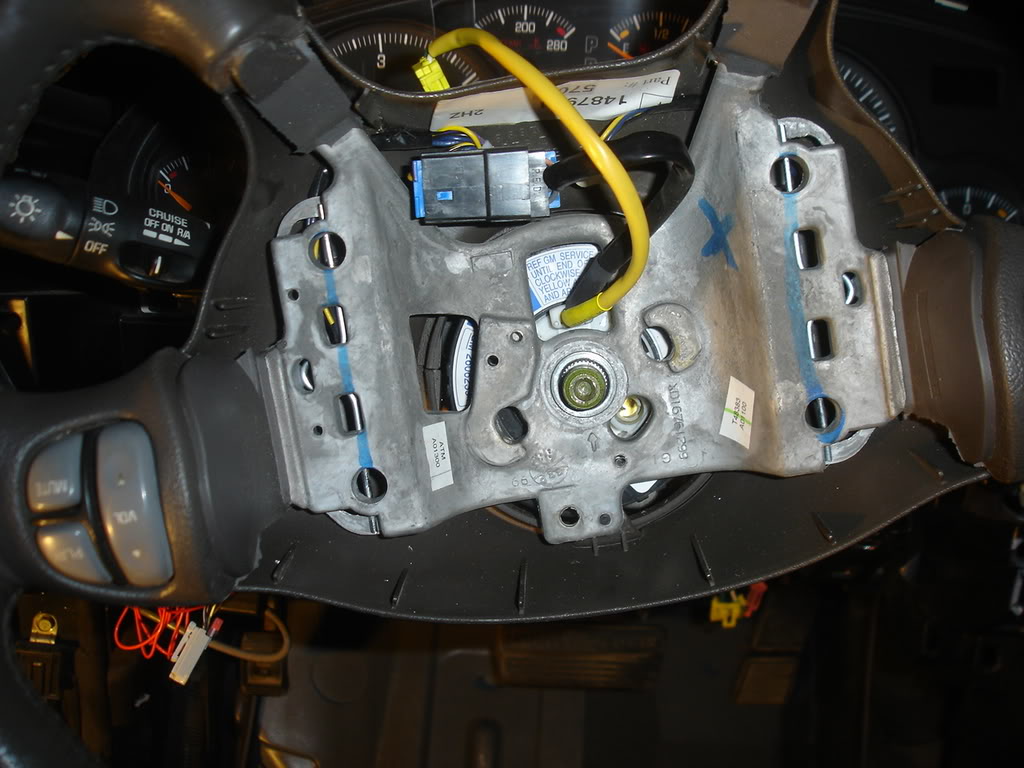

basically it comes down to, there are no threaded holes on the wheel to pull from, and there is no way to get a nut behind the hole.. i tired with some large bolts to grip the sides of the aluminum... it just stripped out once i put pressure on it..

im checking the all data right now, but any help is appreciated
Name:  DSC05927.jpg
Views: 5
Size:  149.3 KB
Name:  DSC05930.jpg
Views: 7
Size:  115.0 KB
Name:  DSC05926.jpg
Views: 7
Size:  114.3 KB
Name:  DSC05929.jpg
Views: 5
Size:  82.0 KB
harofreak00 is offline   Reply With Quote
Old 01-08-2007, 09:00 PM   #2
Senior Member
True Car Nut

Join Date: Aug 2004
Location: The South
Posts: 3,281
Thanks: 0
Thanked 0 Times in 0 Posts
Lowrider0308 is on a distinguished road
Default

can you put a nut on the back side of the steering wheel? If you can, you could always put 2 nuts per bolt, one infront and one behind the steering wheel to get the grip. This is assuming you can put a bolt on both sides.
Lowrider0308 is offline   Reply With Quote
Old 01-08-2007, 09:28 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
basically it comes down to, there are no threaded holes on the wheel to pull from, and there is no way to get a nut behind the hole.. i tired with some large bolts to grip the sides of the aluminum... it just stripped out once i put pressure on it..
harofreak00 is offline   Reply With Quote
Old 01-08-2007, 10:12 PM   #4
Senior Member
True Car Nut

Join Date: Aug 2004
Location: The South
Posts: 3,281
Thanks: 0
Thanked 0 Times in 0 Posts
Lowrider0308 is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
Quote:
Originally Posted by harofreak00
basically it comes down to, there are no threaded holes on the wheel to pull from, and there is no way to get a nut behind the hole.. i tired with some large bolts to grip the sides of the aluminum... it just stripped out once i put pressure on it..
how did i miss that? sorry
Lowrider0308 is offline   Reply With Quote
Old 01-08-2007, 10:12 PM   #5
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

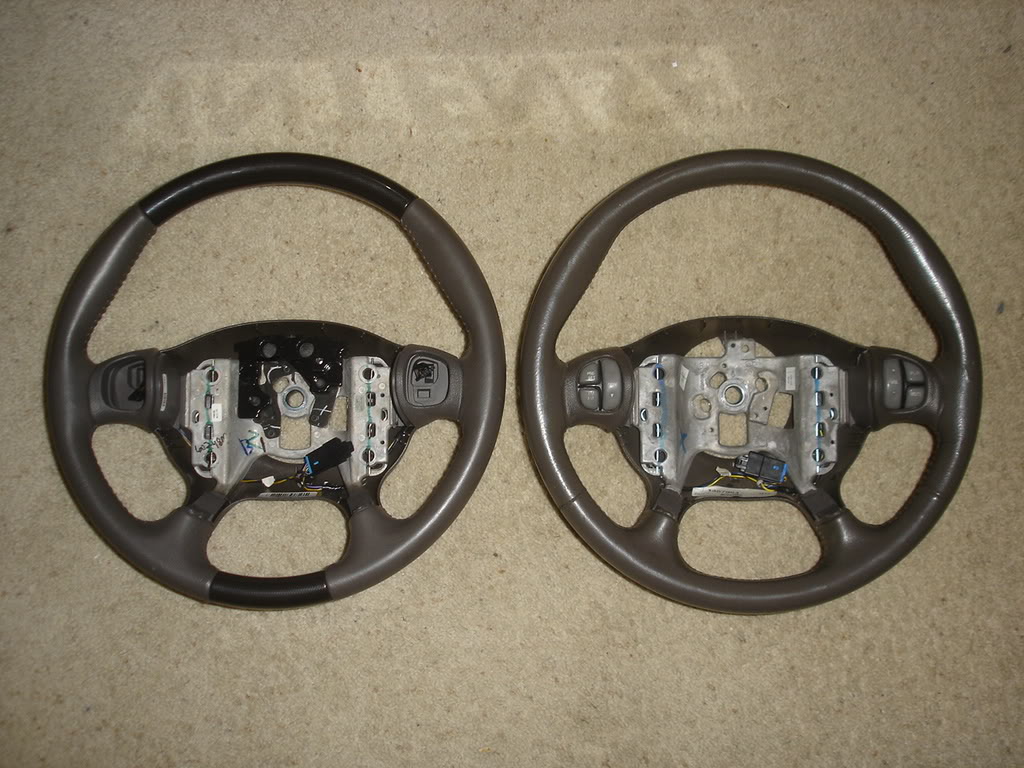

im sorry lowrider, i take that back.. you were exactly right..

after finding some really small nuts and bolts, i played some pinko, about 50 times, with a magnetic screwdriver in the hole... it worked like a charm


there is no way that is the correct way to do it, so if anyone knows the correcy way i would be interested to know

Name:  DSC05933.jpg
Views: 5
Size:  153.5 KB

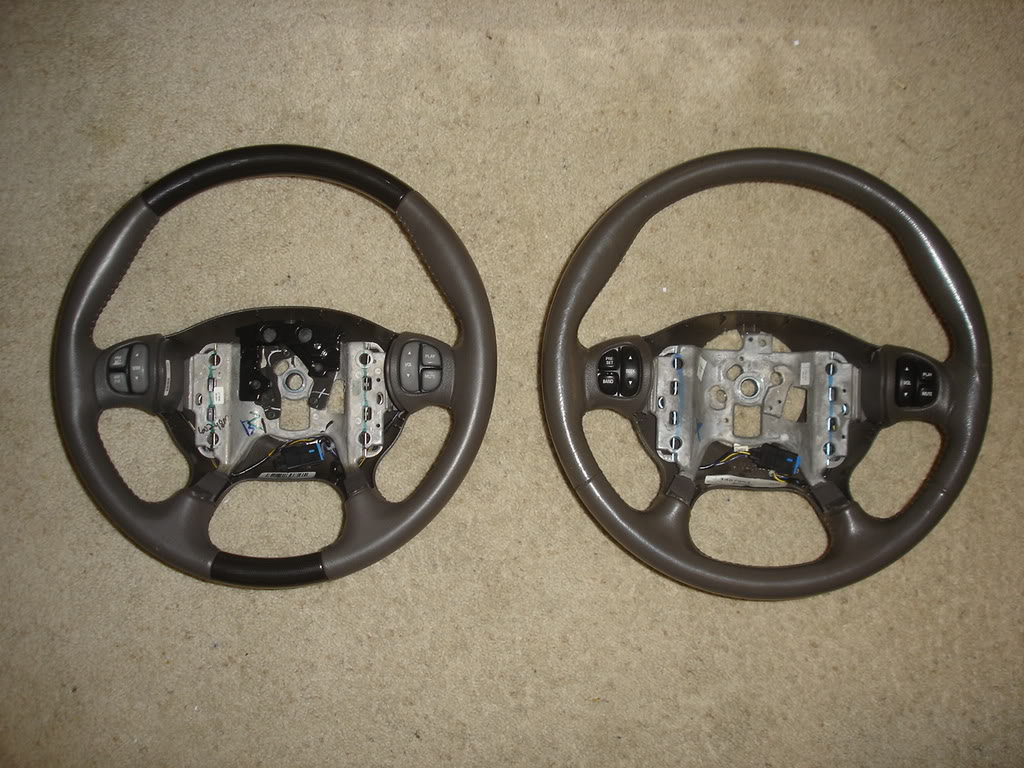

SWAP BUTTONS!

Name:  DSC05945.jpg
Views: 7
Size:  155.9 KB
harofreak00 is offline   Reply With Quote
Old 01-09-2007, 12:21 AM   #6
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I don't know if you found what you were looking for at alldata, but checking there it showed to do it about the way that you did. The difference was this:

* Tools Required
* J42578 Steering Wheel Puller Legs
* J1859-A Steering Wheel Puller

The diagram wasn't helpful, but it showed to do it like you did.

Name:  85096781.gif
Views: 5
Size:  8.5 KB

Edited and added image
