pulley p/n - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


2000-2005 Discuss your 2000-2005 Bonneville SE, SLE, and SSEi Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 04-10-2006, 12:23 AM   #1
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Feb 2003
Location: Sacramento, CA WCBF '06, '07 survivor
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
rrounds is on a distinguished road
Default pulley p/n

My wife said the car had no power, I looked under the hood and the */c belt and a pulley were gone. I can't find the pulley part number. The guy behind the parts counter has several part numbers. This is the pulley closer to the radiator (5" in front of the */c tensioner pulley and about 2" below it). Does anyone know of a site where I can see pictures of the pulley'* or does anyone know the part number for that pulley?

ROD

P.*.
For the first 119,000 miles all I had to do was change the oil and add gas, now at 120,000 I have to replace the half shafts, one front hub and now a pulley has fallen off. I just got the car back from the shop last week had the LIM gasket replaced. Hope this is it for the next 120,000 miles.
rrounds is offline   Reply With Quote
Old 04-10-2006, 01:47 AM   #2
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

Thats the a/c pulley.How bad was your LIM leaking .
jdq is offline   Reply With Quote
Old 04-10-2006, 08:59 AM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

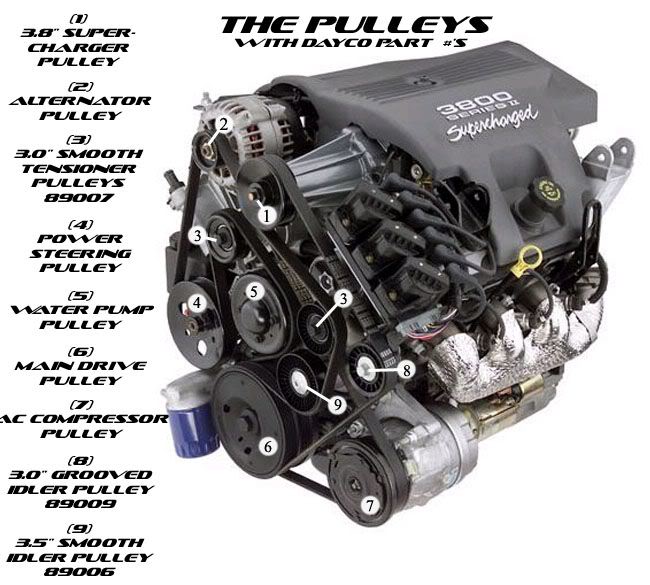

Which pulley?
Name:  S2L67.jpg
Views: 0
Size:  74.1 KB
willwren is offline   Reply With Quote
Old 04-10-2006, 12:28 PM   #4
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

OOPs idler pulley, I thought sc and a/c ran off same belt
jdq is offline   Reply With Quote
Old 04-10-2006, 01:03 PM   #5
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Feb 2003
Location: Sacramento, CA WCBF '06, '07 survivor
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
rrounds is on a distinguished road
Default

Willwren , Thank You Thank You Thank You !
its #8 , 3.0" grooved idler pulley.
how come the oil filter is on the front of the engine ?

ROD
rrounds is offline   Reply With Quote
Old 04-10-2006, 01:50 PM   #6
Senior Member
Posts like a Turbo

Join Date: Jul 2005
Location: Palatine, IL
Posts: 239
Thanks: 0
Thanked 1 Time in 1 Post
TommyGloves is on a distinguished road
Default

Quote:
Originally Posted by rrounds
how come the oil filter is on the front of the engine ?
That'* the engine layout used on the Grand Prix GTPs.
TommyGloves is offline   Reply With Quote
Old 04-10-2006, 02:00 PM   #7
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Feb 2003
Location: Sacramento, CA WCBF '06, '07 survivor
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
rrounds is on a distinguished road
Default

cool , thanks for the info. on the oil filter

ROD
rrounds is offline   Reply With Quote
