Default Oil filter - Intense'* offering

For years I've been using the AC Delco PF47 on all my 3800'*, but why does Intense offer the PF52? http://www.intense-racing.com/Mercha...roduct_Count=1

Was gonna tack on a little something to an order and I saw this and it confused me.
Allmachtige is offline   Reply With Quote
Old 11-19-2007, 12:04 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

The PF52 will fit just fine, in particular in the 2000+. It is larger, so has a larger filtering area, and allows a full 5 quarts without slightly overfilling.
Archon is offline   Reply With Quote
Old 11-19-2007, 12:10 AM   #3
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

The only downside to using this larger filter is that it hangs down about 1/2" lower than the frame so if you do bottom out...........you take your chances.
2000SilverBullet is offline   Reply With Quote
Old 11-19-2007, 12:15 AM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

This will give you an idea of how it fits, although due to the angle needed to take the picture, it shows a little lower than it actually is. I run that size on my car.
http://www.bonnevilleclub.com/forum/...=article&k=106
Archon is offline   Reply With Quote
Old 11-19-2007, 12:24 AM   #5
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

I like the idea of the larger capacity oil filter and I have tried it once but every time I looked under there and saw it peeking out hanging low I worried about it.

I suppose it depends a lot on the conditions of your roads.

We have some rough ones around here and when I travel away from home I don't want to take chances on hitting road debris. It wouldn't take much to punch a small hole and then......
2000SilverBullet is offline   Reply With Quote
Old 11-19-2007, 12:55 AM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: Oct 2002
Location: Genoa, Illinois
Posts: 4,013
Thanks: 0
Thanked 0 Times in 0 Posts
Allmachtige is on a distinguished road
Default

Yeah I'll pass on this larger filter. I live on a gravel drive and work in downtown where the roads are pure pothole madness.

Thanks for the info.
Allmachtige is offline   Reply With Quote
Old 11-19-2007, 01:31 AM   #7
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Guess you guys haven't been to Michigan lately.
Archon is offline   Reply With Quote
Old 11-19-2007, 03:01 AM   #8
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

how about like a shield rigged up over it? that'd help i imagine. kinda like the shield thats there to protect the compressor/belts/ac lines?
wjcollier07 is offline   Reply With Quote
Old 11-19-2007, 08:51 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Hopefully these out of car and same angle pics help you further. There'* very little difference in the amout the filter hangs down. You'll scrape your front bumper cover long before you bottom out the oil filter.

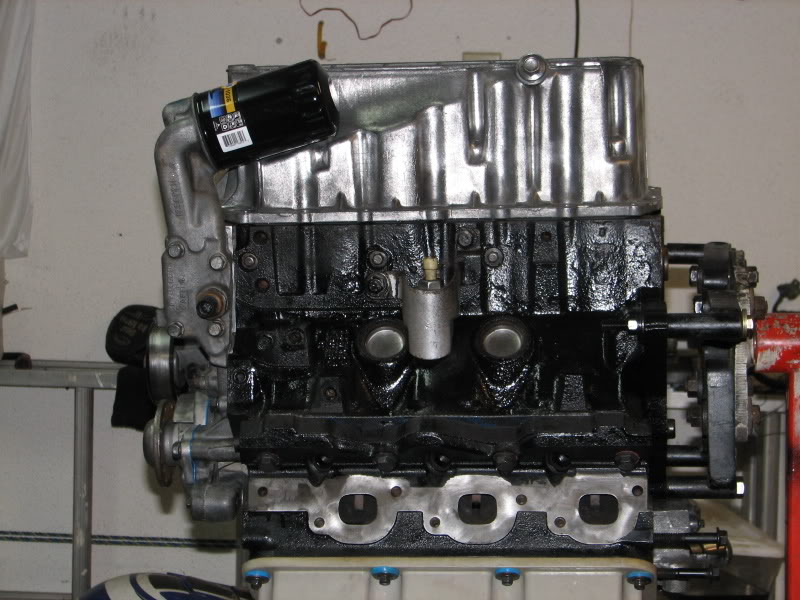

PF52 Sized Filter
Name:  IMG_1662.jpg
Views: 11
Size:  96.9 KB

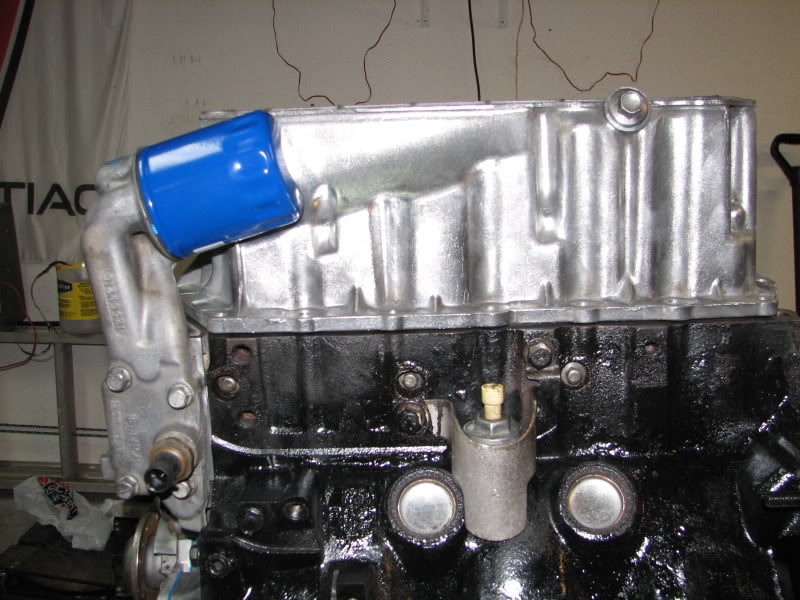

PF47 Sized Filter
Name:  IMG_1666.jpg
Views: 13
Size:  101.5 KB
BillBoost37 is offline   Reply With Quote
Old 11-19-2007, 08:56 AM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

A stone shield would help for the small stuff for sure. I've considered it myself, as the 'dangle angle' of the S1 is a bit more exposed with a bigger filter.

The filter I run is both larger in diameter and longer than a stock filter.

Quote:
Originally Posted by willwren
A stock PF47 (OEM) filter is roughly 3" long by 2.75" in diameter.
A K&N HP2001 (sold at INTENSE among other places) is roughly 5" long by 3" diameter.

Forgive me for the angles, I needed another person to shoot these pics:



















Bottom line is that it IS exposed. There is a chance you could take this sucker out with a road hazard or a deep pothole.

I'll probably fashion some sort of skid plate for this one when it goes in. But in the long run, the Zilla isn't a daily driver except in the late spring-early fall timeframe. Not much inclement weather or bad conditions.

For most 87-99'* here? Probably not a great idea.
