Red face Location of Oil Pan

I have a 01 Bonneville SE. My father has replace my front motor mount and now we are wondering about where the oil pan is located. My oil leaks and we are going to try and replace the gasket to see if that fixes it. I have an idea about which one it is but HE thinks it has something to do with the transmission???? I have never had to fill up my transmission fluid. Oil and power steering fluid is the only things that leak. PLEASE HELP ME. Point me to some pictures or maybe post some so I can show him.

Also help me locate my power steering leak.
bobbysgirl is offline   Reply With Quote
Old 04-03-2010, 03:54 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The engine oil pan is the lowest point on the engine. You will find the drain plug on the back side of it. the transmission oil pan is the flat pan that does not have a drain plug.

Can you tell about where the power steering is leaking? Is it from the tank or one of the lines?

If you need pictures yet, just ask, we have just about everything photographed.
Danthurs is offline   Reply With Quote
Old 04-03-2010, 04:03 PM   #3
Junior Member
Thread Starter

bobbysgirl's Avatar

Join Date: Apr 2009
Location: West Georgia
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
bobbysgirl is on a distinguished road
Default

Thanks so much for helping. I can't really see where the power steering is leaking. I know I have to put in fluid every 4-5 weeks. I will check everywhere I can though.
bobbysgirl is offline   Reply With Quote
Old 04-03-2010, 04:34 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Look for any pooling and then look above it.
Danthurs is offline   Reply With Quote
Old 04-03-2010, 05:53 PM   #5
Member
Posts like a V-Tak

Join Date: May 2009
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
enslow is on a distinguished road
Default

Power steering fluid:

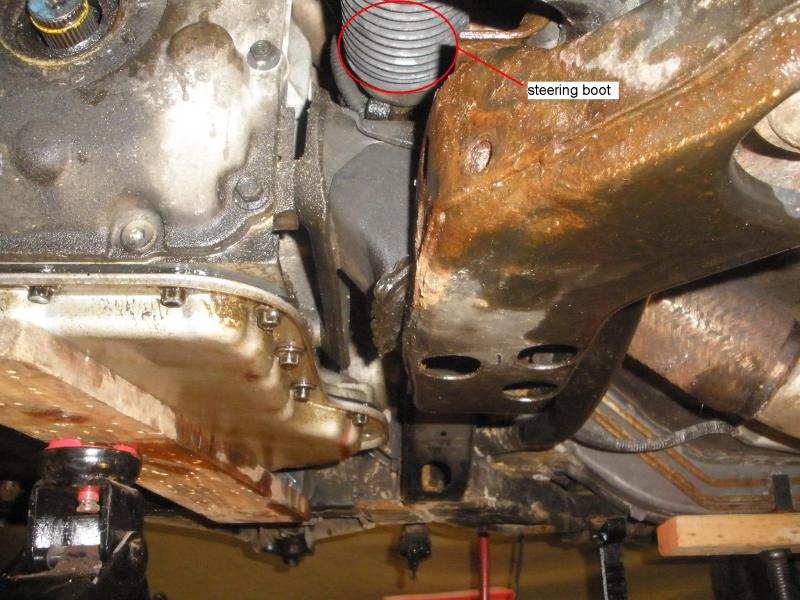

Look at the rubber boots on the ends of the steering rack. See image (original C/O Danthurs, I think). If they appear wet, I'm told that the rack must be replaced. I saw this on my Lesabre, so I figured I had nothing to lose so I added a bottle of power steering conditioner that conditions internal seals. So far it has worked and solved the leak.
Attached Thumbnails
Location of Oil Pan-steeringboot.jpg
enslow is offline   Reply With Quote
Old 04-03-2010, 05:58 PM   #6
Member
Posts like a V-Tak

Join Date: May 2009
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
enslow is on a distinguished road
Default

Oh yeah, power steering fluid and tranny fluid can look identical once it'* on the ground.
enslow is offline   Reply With Quote
Old 04-03-2010, 06:05 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Best thing to find out what your leaking is clean the floor real good. Then lay down some white cardboard or paper towels. Then look in the morning. Make a note of where the spots are, how big they are, and what color they are. Red, transmission fluid, brown, oil, clear, steering fluid, pink/orange/green, radiator fluid depending on the brand you have.
Danthurs is offline   Reply With Quote
Old 04-04-2010, 01:27 PM   #8
Junior Member
Thread Starter

bobbysgirl's Avatar

Join Date: Apr 2009
Location: West Georgia
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
bobbysgirl is on a distinguished road
Default

You guys are awesome. I will be trying all this and more. My Bonneville is paid for but it has so many problems. I want to fix all the mechanical problems then maybe make it look better cosmetically. All the guys on here make it easier on me.
bobbysgirl is offline   Reply With Quote
Old 04-04-2010, 01:48 PM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Start with general maintenance, fluids, plugs, etc. then pick something to fix and work on that. when done, move on to the next. don't look at all of it at once. It'* one issue, then another, not a whole bunch of things.
