LIM project question - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


2000-2005 Discuss your 2000-2005 Bonneville SE, SLE, and SSEi Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 11-12-2006, 01:14 PM   #11
Senior Member
Posts like a 4 Banger

Join Date: Oct 2006
Posts: 141
Thanks: 0
Thanked 0 Times in 0 Posts
motorhead is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Someone please find me 1 post here on the club where someones cover plate gasket leaked.
Quote:
Originally Posted by 2000SilverBullet
cough cough....mine leaked.
Thats OK Bill, you don't need to apologize.
motorhead is offline   Reply With Quote
Old 11-12-2006, 01:37 PM   #12
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by motorhead
Quote:
Originally Posted by BillBoost37
Someone please find me 1 post here on the club where someones cover plate gasket leaked.
Quote:
Originally Posted by 2000SilverBullet
cough cough....mine leaked.
Thats OK Bill, you don't need to apologize.
and motorhead you dont need to act like you know everything.....

and besides the fact out of 6000+ members we have seen one fail.....furthermore i dont believed that Paul ever before mentioned that he has had the leak in a prevoius post....

so your oringal post still isnt accurate as you are describing them as a consistant problem where as they are not
1993 SLE is offline   Reply With Quote
Old 11-12-2006, 01:42 PM   #13
Junior Member

Join Date: Aug 2005
Location: North of Buffalo, NY *** NEBF '05, '06, '07 *** ***ONBF & NYBF 06; 07*** ***WCBF 06***
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
singscountry1967 is on a distinguished road
Default

Let'* not get out of hand here guys... make suggestions and then debate the validity of them... but in a polite way.
singscountry1967 is offline   Reply With Quote
Old 11-12-2006, 02:35 PM   #14
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

I have never seen one of these gaskets leak a drop.... Its not a fact that they leak... They will 99.99 % of the never leak a drop.... If we want to talk intake gaskets then thats another story all together....


No more Posts on this Gasket.... we are done as far as that is conecerned

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 11-12-2006, 02:55 PM   #15
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Quote:
furthermore i dont believed that Paul ever before mentioned that he has had the leak in a prevoius post....
Cough, cough, no I posted pics and it was a long thread..

I don't know what you guys are talking about but I am convinced that they will leak. I don't have many miles and the two times I've had my TB off, there were signs of leakage. Like I said, I now always use additional RTV.

Swallow your pride and respect others opinions guys
2000SilverBullet is offline   Reply With Quote
Old 11-12-2006, 03:14 PM   #16
Senior Member
Posts like a 4 Banger

Join Date: Oct 2006
Posts: 141
Thanks: 0
Thanked 0 Times in 0 Posts
motorhead is on a distinguished road
Default

It'* not that they leak large amounts of coolant, they rarely "blow out". What happens is they will seep or sweat small amounts of coolant. Most of the time the coolant can't even make it to the bottom of the engine to form a drip because it cooks off the engine. But it can get to the point of producing that smell of burned coolant. If the guy has his intake off anyways for new LIM gaskets, why not just put a new gasket on the cover too and be done with it. It'* a very inexpensive gasket. I replace them on all the intake jobs I do.

To all you doubters out there, grab a small mirror and go out to your car. Take the air intake tube off and hold the mirror under the exhaust cross over pipe to see the reflection of the BOTTOM side of that cover plate. You will very likely see signs of coolant leaking, like white stains on the aluminum lower manifold, orange trails from the bottom of the cover plate or crusty orange fuzz gathering around the gasket of the cover plate.

Like I said, ití* usually not a big leak. Nothing detrimental, but if the guy has it apart anyway why not just replace the gasket?

Jeez, tough crowd here!
motorhead is offline   Reply With Quote
Old 11-12-2006, 04:59 PM   #17
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Yeah I just repaced mine when I pulled the intake apart for the parts cleaner.
Actually haven't put a gasket back in yet, but I ordered one from NAPA for $0.52 including tax.
I do remember Silverbullet'* thread....vaguely, but I do remember it.
For the cost I agree with Macdrive.... if the intake is off I'd definitely suggest replacing it knowing how hard it is to get at with the intake on the car and the exhaust crossover pipe in the way.
OLBlueEyesBonne is offline   Reply With Quote
Old 11-12-2006, 07:47 PM   #18
Mark Fahey
Guest

Posts: n/a
Default

Geez, I leave for the day for my grandson'* baptism and World War 3 breaks out. I'll replace the gasket as a precaution.
  Reply With Quote
Old 11-12-2006, 10:08 PM   #19
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

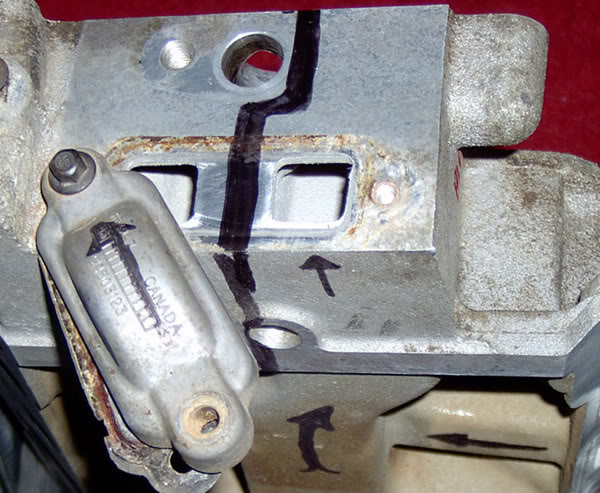

It has been a while since I have worked on an L67, but I'm pretty sure the part you are referring to is the same as the L36. If so, when you look at it closely, you will see that the cover is more than a plate. It is a convex casting viewed from the outside that forms a coolant passage. That cover allows coolant to flow from the interior chamber of the LIM, to the thermostat housing and thence out of the motor. There is actually more than just coolant underneath it, too. When it is removed, you will see two distinct coolant chambers divided vertically by the alumimum wall that isolates the thermostat housing. When a modification is made to block the coolant flow from the LIM through the throttle body, the passage created by the little cover becomes the sole path for coolant to travel out of the engine to the radiator.

Name:  L36LIMbypass-1.jpg
Views: 0
Size:  81.3 KB

A paper gasket with silicone beads for the cover is included in most UIM kits. I don't doubt that they can leak, but it is much more common for coolant to leak onto the cover from leaking gaskets above. This would give the appearance of a leaking cover, when, in fact, it was tight.
bill buttermore is offline   Reply With Quote
