Old 11-11-2006, 02:49 PM   #1
Mark Fahey
Guest

Posts: n/a
Default LIM project question

While I have everything apart, I'm going to tackle whatever additional repairs that are easier to do now rather than later. These include the supercharger coupler,valve cover gaskets, vacuum tees and possibly any idlers that typically go bad.
Of the four idlers/tensioners, any recommendations on which ones should be replaced?The car has 90,000 miles on it and although I haven't noticed any unusual noises, I thought I would replace and suspect ones as a precaution.
  Reply With Quote
Old 11-11-2006, 04:31 PM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

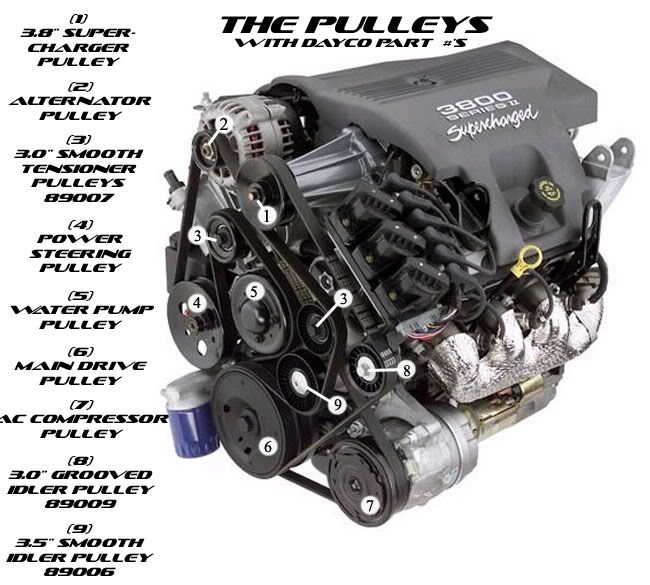

Name:  S2L67.jpg
Views: 4
Size:  74.1 KB

If you're going to be replacing pulleys, whiy not just do them all, then? They aren't that expensive, and all have about the same "miles" on them.

The #3 pulleys in the picture would be the ones to start with, then 8, then 9.
Archon is offline   Reply With Quote
Old 11-11-2006, 06:00 PM   #3
Mark Fahey
Guest

Posts: n/a
Default

Sounds reasonable. On a related note, I took the LIM in to have it tanked so I didn't have to mess with cleaning it. After I dropped it off, I got to thinking that on the end above the transmission, there is a cover plate. I don't know what is in there but will being put in the tank hurt anything(I did remove the temperature sensor)?
  Reply With Quote
Old 11-11-2006, 07:20 PM   #4
Senior Member
Posts like a 4 Banger

Join Date: Oct 2006
Posts: 141
Thanks: 0
Thanked 0 Times in 0 Posts
motorhead is on a distinguished road
Default

The cover plate is just a cover plate. Nothing under it but coolant. You will want to replace the gasket for this plate though, as they are known to leak over time/miles.
motorhead is offline   Reply With Quote
Old 11-12-2006, 01:25 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by motorhead
The cover plate is just a cover plate. Nothing under it but coolant. You will want to replace the gasket for this plate though, as they are known to leak over time/miles.
This statement is the largest pile of BS I've heard this week.

Someone please find me 1 post here on the club where someones cover plate gasket leaked.
BillBoost37 is offline   Reply With Quote
Old 11-12-2006, 02:39 AM   #6
Senior Member
Posts like a Camaro

Join Date: Dec 2005
Location: Clovis, CA
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
MACDRIVE is on a distinguished road
Default

Quote:
Originally Posted by motorhead
The cover plate is just a cover plate. Nothing under it but coolant. You will want to replace the gasket for this plate though, as they are known to leak over time/miles.
Quote:
Originally Posted by BillBoost37
Quote:
Originally Posted by motorhead
The cover plate is just a cover plate. Nothing under it but coolant. You will want to replace the gasket for this plate though, as they are known to leak over time/miles.
This statement is the largest pile of BS I've heard this week.


Someone please find me 1 post here on the club where someones cover plate gasket leaked.
You guys are at war with each other huh?

... ... ... ... ...
MACDRIVE is offline   Reply With Quote
Old 11-12-2006, 03:06 AM   #7
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Quote:
This statement is the largest pile of BS I've heard this week.

Someone please find me 1 post here on the club where someones cover plate gasket leaked.
cough cough....mine leaked.
I had to take it off a couple of years ago and change the gasket.
2000SilverBullet is offline   Reply With Quote
Old 11-12-2006, 04:03 AM   #8
Senior Member
Posts like a Camaro

Join Date: Dec 2005
Location: Clovis, CA
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
MACDRIVE is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
Quote:
This statement is the largest pile of BS I've heard this week.

Someone please find me 1 post here on the club where someones cover plate gasket leaked.
cough cough....mine leaked.
I had to take it off a couple of years ago and change the gasket.
I don't see why... the gasket can easily survive the alkaline caustic soda from the hot tank can't it? :P
MACDRIVE is offline   Reply With Quote
Old 11-12-2006, 11:33 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Good to know. I've had never heard or seen one. (Leave it to Paul)
BillBoost37 is offline   Reply With Quote
Old 11-12-2006, 12:10 PM   #10
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

That was the very first leak that this car had.
Not a big leak, just a drip every time I shut her down and it would accumulate on the trani.....you know the spot Boosty....the one you lost a bolt to during your LIM gasket change.

From then on, all coolant gaskets go on with a smear of hi temp RTV. I don't trust that tiny bead of red that runs around factory gaskets.
2000SilverBullet is offline   Reply With Quote
