Default LIM finally went at 200K miles...

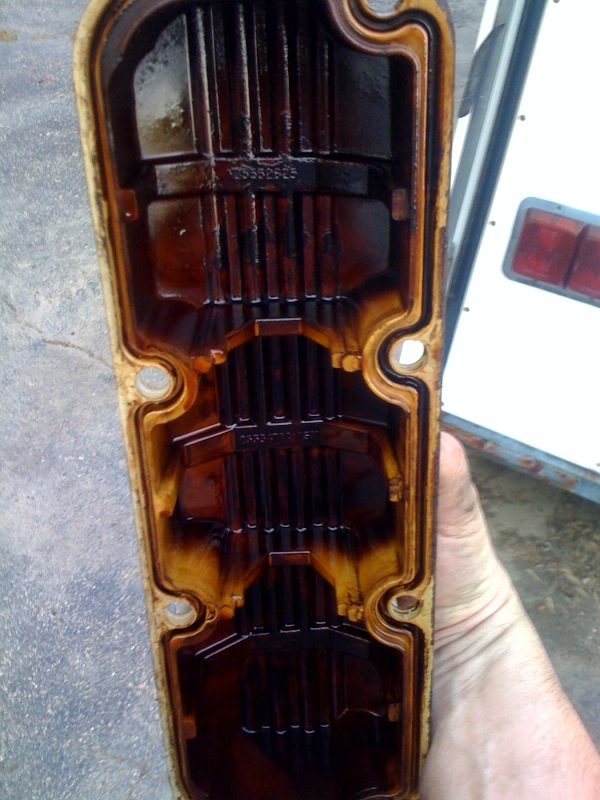

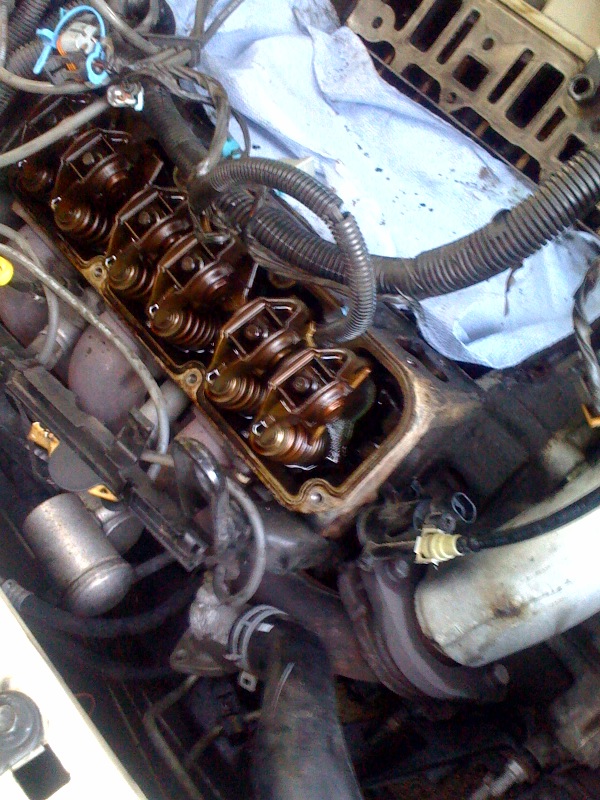

Coolant disappearing for the last week or so. Stopped at Oreillys to get the Felpro LIM kit (talk about serious gaskets!), coolant elbows, UIM kit, oil/filter, and coolant. $165 and 5 hours is all it takes... I had valve cover gaskets so did them while they were easiily accessible. Worst part of the job? the lower front stud on the throttle body. Taking it out was easy with the thermostat housing removed, back in was impossible unless the nut is taken off the stuf, which wouldn't budge. It took a new, shorter bolt to fix. Valve covers, lifter valley, and rockers all looked great and free of sludge.
Attached Thumbnails
LIM finally went at 200K miles...-rockers.jpg   LIM finally went at 200K miles...-valvecvr.jpg
Tedro951 is offline   Reply With Quote
Old 06-18-2010, 10:22 AM   #2
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Good job and thanks for posting the challenges.
GunsOfNavarone is offline   Reply With Quote
Old 06-18-2010, 12:01 PM   #3
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Sounds like you caught it right away. Good job!

I would recommend doing another oil and filter change after driving it for a week. Then...good to go for another 200K!
Purplehazeir is offline   Reply With Quote
Old 06-18-2010, 01:40 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2009
Location: Indy
Posts: 62
Thanks: 0
Thanked 0 Times in 0 Posts
Tedro951 is on a distinguished road
Default

Yeah, I plan to run the cheapest 10W30 I can get for a day, then swap for some Oreilly full synth. I normally use cheap, but they had 5 qts full synth and a mobil 1 filter for 17.99 and I couldn't pass it up.
I tried Castrol Edge for 10K miles and the consumption was too high. This stuff will prolly be the same..
Tedro951 is offline   Reply With Quote
Old 06-18-2010, 09:36 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

No better feeling then doing it yourself. Saved yourself several hundred bucks there.
Danthurs is offline   Reply With Quote
Old 06-21-2010, 12:29 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2009
Location: Indy
Posts: 62
Thanks: 0
Thanked 0 Times in 0 Posts
Tedro951 is on a distinguished road
Default

One thing I forgot. The thermostat Oring. It wasn't in either kit, and sure enough it had a small leak. Another trip up town, and 2.00 fixed it. I changed the oil and filter and will run it 1K, but I didn't see any real signs of oil contamination. Both LIM gaskets were breached at the coolant passage....couldn't miss it.
Tedro951 is offline   Reply With Quote
