Default JB Weld and Fuel

Does anyone know if JB Weld is resistant to fuel and if it could be used on a fuel rail to fix a leak. Wondering if fuel would destroy the integrity or if it would hold up to use. Any ideas or have tried it?
jshelton54 is offline   Reply With Quote
Old 01-15-2008, 10:27 PM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

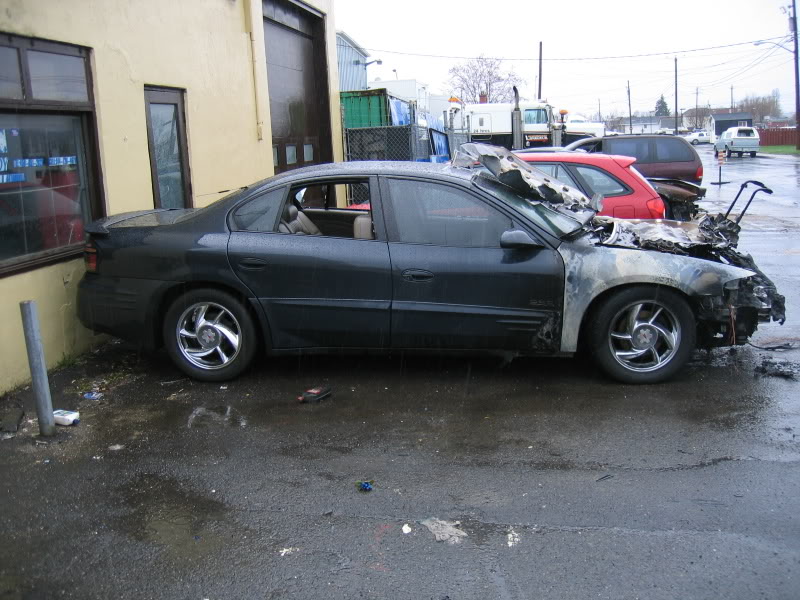

fuel rail leaks could end up like this=

Name:  IMG_0837.jpg
Views: 15
Size:  108.9 KB

I'd do it the correct way. whichever way this is.
Hans is offline   Reply With Quote
Old 01-15-2008, 10:31 PM   #3
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

That was electrical, wasn't it?

I think JB weld says it'* fine for fuel. But I wouldn't to risk it.
J Wikoff is offline   Reply With Quote
Old 01-15-2008, 10:37 PM   #4
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2006
Location: Meridian, ID
Posts: 508
Thanks: 0
Thanked 0 Times in 0 Posts
jshelton54 is on a distinguished road
Default

Ouch. That would suck.
jshelton54 is offline   Reply With Quote
Old 01-15-2008, 10:50 PM   #5
Junior Member

Join Date: May 2006
Location: BonnevilleHell
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
clm2112 is on a distinguished road
Default Re: JB Weld and Fuel

Quote:
Originally Posted by jshelton54
Does anyone know if JB Weld is resistant to fuel and if it could be used on a fuel rail to fix a leak. Wondering if fuel would destroy the integrity or if it would hold up to use. Any ideas or have tried it?
Yes, it resists gasoline pretty well (I've used it to patch punctures in motorcycle fuel tanks..years ago, now I solder them closed) but that said, I would not use it to repair a high pressure item, like a fuel injector rail.

If a seam is leaking, it can be brazed closed, or even silver-soldered closed. Brazed with brass or 50% silver solder, the break will be closed up and a very strong repair. (When I convert a rail from quick disconnects to AN fittings, I silver solder them on and pressure test them to 100psi with compressed air, no leaks, no worries
clm2112 is offline   Reply With Quote
Old 01-15-2008, 10:54 PM   #6
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

Quote:
Originally Posted by J Wikoff
That was electrical, wasn't it?
not sure if the cause was ever found. I know there was some speculation. I was just pointing out what could happen if fuel started spraying on jshelton'* headers if the job is not done properly.
Hans is offline   Reply With Quote
Old 01-15-2008, 11:05 PM   #7
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2006
Location: Meridian, ID
Posts: 508
Thanks: 0
Thanked 0 Times in 0 Posts
jshelton54 is on a distinguished road
Default Re: JB Weld and Fuel

Quote:
Originally Posted by clm2112
Quote:
Originally Posted by jshelton54
Does anyone know if JB Weld is resistant to fuel and if it could be used on a fuel rail to fix a leak. Wondering if fuel would destroy the integrity or if it would hold up to use. Any ideas or have tried it?
Yes, it resists gasoline pretty well (I've used it to patch punctures in motorcycle fuel tanks..years ago, now I solder them closed) but that said, I would not use it to repair a high pressure item, like a fuel injector rail.

If a seam is leaking, it can be brazed closed, or even silver-soldered closed. Brazed with brass or 50% silver solder, the break will be closed up and a very strong repair. (When I convert a rail from quick disconnects to AN fittings, I silver solder them on and pressure test them to 100psi with compressed air, no leaks, no worries
That sounds pretty good.
jshelton54 is offline   Reply With Quote
Old 01-15-2008, 11:33 PM   #8
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

I also wouldn't use JB weld to patch a high pressure leak.

Quote:
Originally Posted by Hans
Quote:
Originally Posted by J Wikoff
That was electrical, wasn't it?
not sure if the cause was ever found. I know there was some speculation. I was just pointing out what could happen if fuel started spraying on jshelton'* headers if the job is not done properly.
Mike'* car was found to be flooded at one time. The resulting electrical demons eventually took his car out.


Ed
McGrath is offline   Reply With Quote
Old 01-17-2008, 12:01 AM   #9
Senior Member
Posts like a Supercharger

Join Date: Oct 2006
Location: Alberta, Canada
Posts: 170
Thanks: 0
Thanked 0 Times in 0 Posts
Drunken Sailor is on a distinguished road
Default

JB weld won't hold against that much pressure when applied from the outside only. Been there, almost burned that. Replace the rail, it'* much safer anyway.
Drunken Sailor is offline   Reply With Quote
Old 01-17-2008, 12:25 AM   #10
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Do not use glue
Braze it
2000SilverBullet is offline   Reply With Quote
