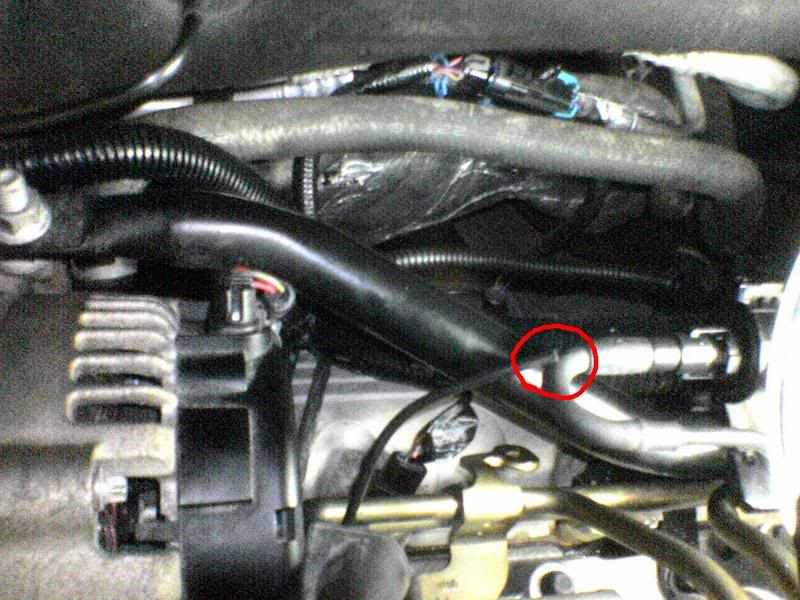

Jeeze so yeah I broke a vacuum line to pieces when I put the rockers in and I have no Idea what it connected to. It'* the line that is connected to that "T" coupler and goes back behind the motor along the rear fuel rail. I have looks for like 20 minutes and I can't find what it was attached to.

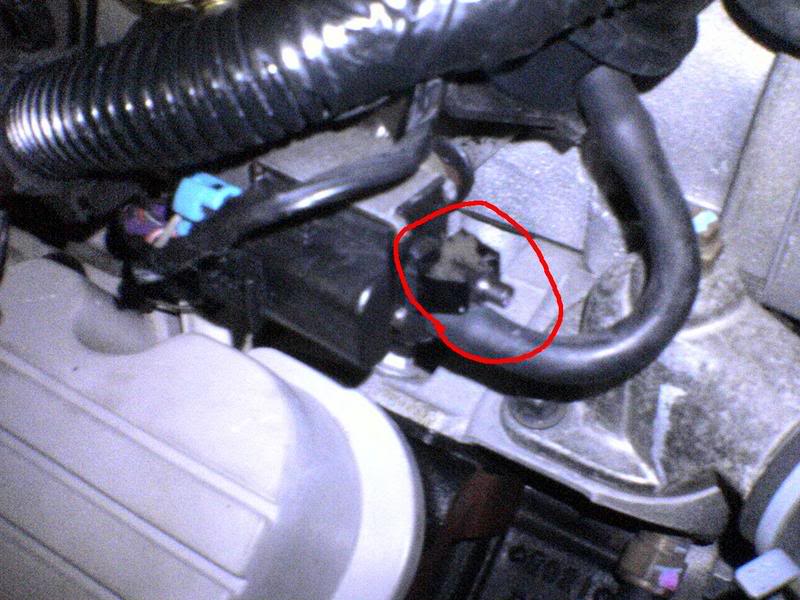

I also found a module on the opposite side of the engine that seems to be missing a vacuum line but when I connected the broken line to the module with a hose the boost gauge still did not work so they must connect to each other.

Please can someone post picture of an l67 up close so I can figure out what the deal is with my vacuum lines?

Name:  DSC00383.jpg
Views: 13
Size:  98.2 KB
Name:  DSC00382.jpg
Views: 13
Size:  80.2 KB
hugger10 is offline   Reply With Quote
Old 12-09-2006, 10:15 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

the second pic is a FILTER, and nothing get connected to it


can you get some rubber vaccume hose and connect the hard line to where its supposed to go??
1993 SLE is offline   Reply With Quote
Old 12-09-2006, 10:22 PM   #3
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

The other line in the back connects to the MAP sensor. It'* on the bottom of it, and can be a pain to get to. It'* easier if you remove the MAP sensot, or if you can find the other end of that hard line, put a rubber coupler between them.
Archon is offline   Reply With Quote
Old 12-09-2006, 10:28 PM   #4
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2006
Location: Robertsdale Alabama
Posts: 500
Thanks: 0
Thanked 0 Times in 0 Posts
hugger10 is on a distinguished road
Default

yea thats what I was planning to do, whats the MAP sensor? THanks
hugger10 is offline   Reply With Quote
Old 12-09-2006, 10:31 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Manifold Absolute Pressure. Your boost gauge runs off from it, so that'* why you're not getting a boost reading.
Archon is offline   Reply With Quote
Old 12-09-2006, 10:34 PM   #6
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2006
Location: Robertsdale Alabama
Posts: 500
Thanks: 0
Thanked 0 Times in 0 Posts
hugger10 is on a distinguished road
Default

oh, which little module is it? the round one or the rectangular one below it
hugger10 is offline   Reply With Quote
Old 12-09-2006, 10:50 PM   #7
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

The rectangular one below it. The round one is for the evap. system.
Archon is offline   Reply With Quote
Old 12-09-2006, 10:54 PM   #8
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2006
Location: Robertsdale Alabama
Posts: 500
Thanks: 0
Thanked 0 Times in 0 Posts
hugger10 is on a distinguished road
Default

hey man thanks I found it and fixed the vacuum tube but I have bad news. The vacuum gauge still doesn't work and it still nearly stalls once in a while while Idling. I don't know if I connected something back wrong or if there'* another leak somewhere... I'm scratching my head right now.
hugger10 is offline   Reply With Quote
Old 12-09-2006, 11:00 PM   #9
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Double check all of your vacuum fittings, and pay special attention to the T under the snout of the supercharger. Those are known to dry out and crack.
Archon is offline   Reply With Quote
Old 12-10-2006, 12:14 AM   #10
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Check the diagram in here to see the routing of vac lines. Although this is for an earlier year, the vac lines should be very similar, since it is for an L67. There are two map sensors that are connected to the t from under the SC snout.

http://www.bonnevilleclub.com/forum/...hlight=#755749
