Default Getting thru the Firewall (location)

ok guys im a expert in getting thru the 92-99 Firewall....but im totally a newb when it comes to my 03

Im looking for a place to pass a wire thru the Firewall into the Interior...want want to use an existing grommet or where other wires also run

Pics or a diagram would be awesome......


Thanks Guys
1993 SLE is offline   Reply With Quote
Old 04-23-2007, 05:18 PM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

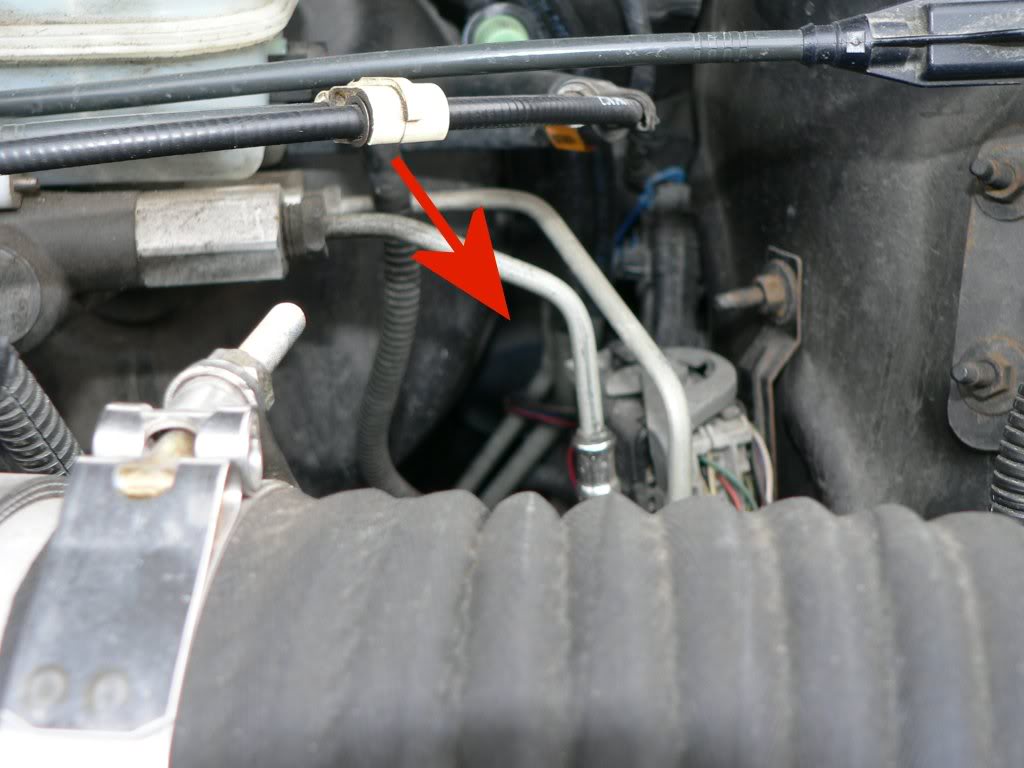

There'* a large rubber grommet tucked down a bit on the firewall alongside the brake booster. That'* where I ran the wires for my angel eyes. It'* a bit hard to get a picture if it, but this will give you an idea of where it is.
Name:  WirePassThru.jpg
Views: 17
Size:  73.5 KB
Archon is offline   Reply With Quote
Old 04-23-2007, 05:51 PM   #3
Senior Member
Posts like a Turbo

Join Date: Aug 2006
Location: bloomington, IN
Posts: 424
Thanks: 0
Thanked 0 Times in 0 Posts
Mista_SC is on a distinguished road
Default

there'* a passage through the passengers side as well, I used that side to put the switch in you have to take the glove box out to get to it though (to access from the inside) I didn't even try using the drivers side.
Mista_SC is offline   Reply With Quote
Old 04-23-2007, 05:56 PM   #4
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

I used the same location as Dick.

If you peel back the carpet on the drivers footwell a bit, and go under the rubber insulation its pretty easy to find on the interior side too
toastedoats is offline   Reply With Quote
Old 04-23-2007, 06:26 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I used the high tech approach to get it through there. I cut down a wire coat hanger, taped the wires to one end, and shoved the other end through the rubber. As Toasty mentioned, it'* easy to find it on the inside. I found the coat hanger, then gently worked the wires through.
Archon is offline   Reply With Quote
Old 04-23-2007, 06:43 PM   #6
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Nice.....you guys are the best
1993 SLE is offline   Reply With Quote
Old 04-23-2007, 09:07 PM   #7
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Maryland, USA
Posts: 3,089
Thanks: 0
Thanked 0 Times in 0 Posts
95SLE is on a distinguished road
Default

Pat:
As Dick said use the coat hanger. After that I used a screwdriver and made the hole a little larger. I was then able to poke some 3/8 imch wire loom tubeing through the hole and run the wires through the tubing. Also pull in a piece of string with the wire and you have a pull string for any future wires you may need to run.
95SLE is offline   Reply With Quote
Old 04-23-2007, 09:29 PM   #8
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by 95SLE
Pat:
As Dick said use the coat hanger. After that I used a screwdriver and made the hole a little larger. I was then able to poke some 3/8 imch wire loom tubeing through the hole and run the wires through the tubing. Also pull in a piece of string with the wire and you have a pull string for any future wires you may need to run.
oh snap. the Loom is a AWESOME Idea
1993 SLE is offline   Reply With Quote
Old 04-24-2007, 08:58 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Randman let me in on another trick. Use an antenna mast. It'* a bit stronger and still bends enough.
