Old 09-30-2011, 09:37 AM   #11
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2009
Location: Central IL
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
corrie06 is on a distinguished road
Default

I was able to fix the passenger side lower drain tube last night. It was actually pretty easy and here'* how I did it.
  1. I pulled out the nipple and lower tube through the wheel well and set that aside.
  2. I then fed a string into the body cavity from the inside of the car.
  3. I used a coat hanger with a hook bent onto the end to fish the string from the cavity through the hole in the wheel well where the tube drains out.
  4. I tied the string to the end of the lower drain tube and inserted it back into the hole in the wheel well.
  5. I went back into the car and pulled the string out through the body cavity and the tube came with it.
  6. I secured the upper and lower tubes together with a zip tie and the water drains out of the car again!

The process was similar to running wire up a wall in your home and easy too! It only took a few minutes.
Attached Thumbnails

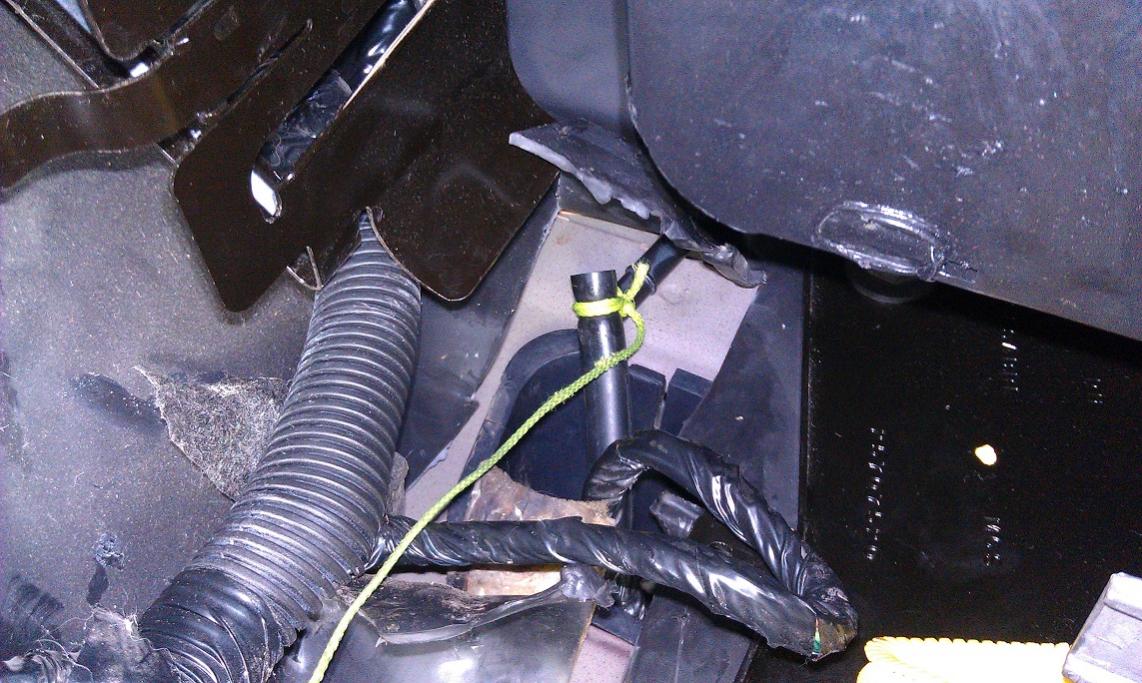

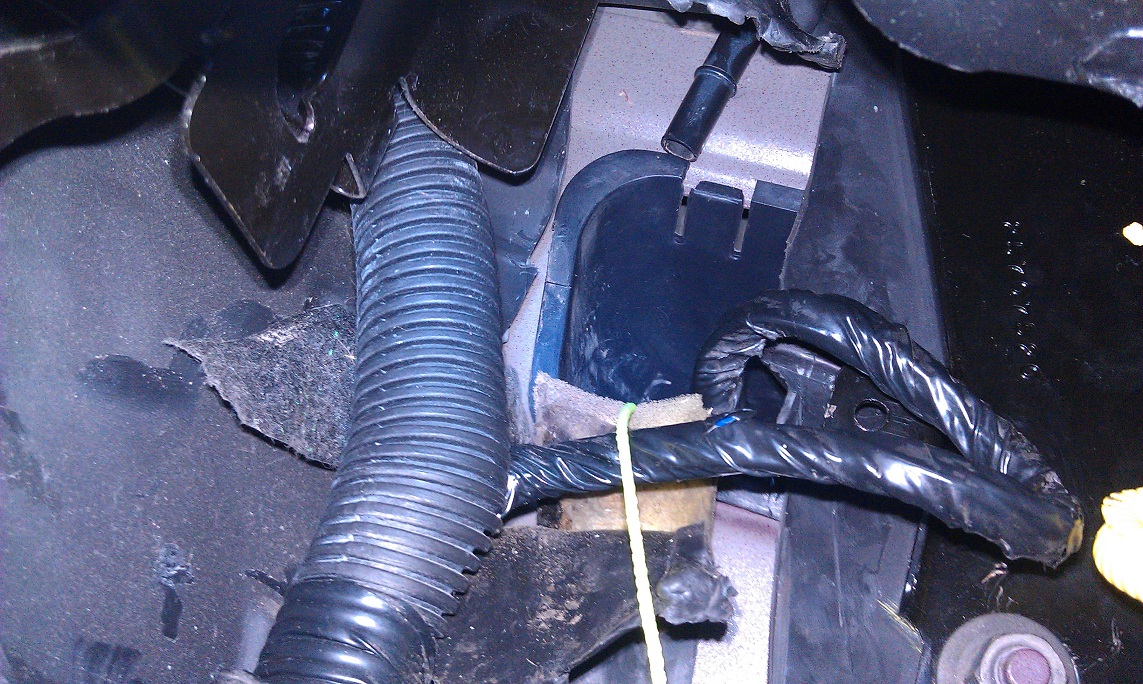

Front passenger lower drain tube missing!-imag0046.jpg   Front passenger lower drain tube missing!-imag0047.jpg   Front passenger lower drain tube missing!-imag0048.jpg
corrie06 is offline   Reply With Quote
Old 09-30-2011, 12:03 PM   #12
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Glad to hear it was that easy. I was not able to access the area where the upper was joined to the lower, so I had to do it the way I described.
2kg4u is offline   Reply With Quote
