Does anybody have a diagram for the evap system for around the fuel tank area?

A couple years ago I deleted the codes for the evap system and pulled/plugged the solenoid and line in the engine bay. I was under the car sealing an exhaust leak the other day and decided to pull the charcoal canister and capped the lines.

As you can guess its a pita to now fill the gas tank. I see there are 3 lines that went to the canister. 1 3/8 size going to the engine bay and 2 1'' or bigger going to the tank.

Im kinda of confused on which one of the bigger hoses to open back up or both?

Thanks, Jay
jayd435 is offline   Reply With Quote
Old 03-02-2014, 05:09 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

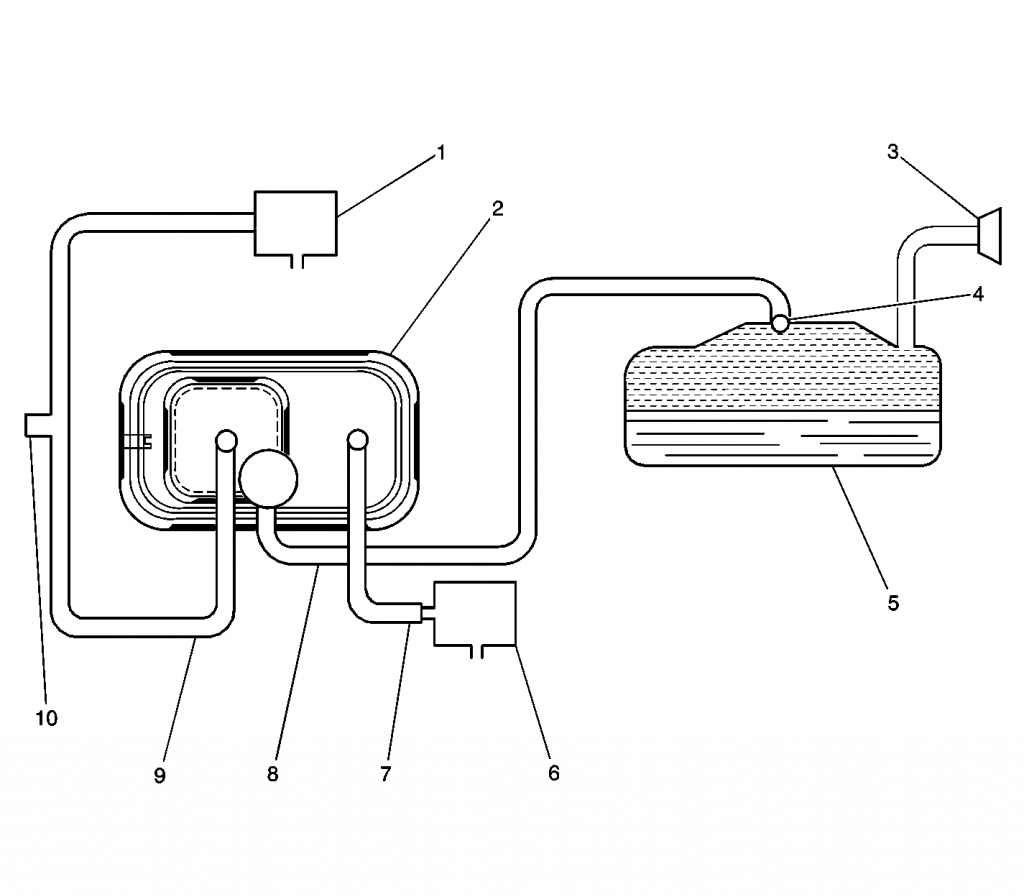

here is the diagram the service manual gives, does say sizes but the one that comes up in the middle is it. i wouldnt just leave it open either it will spit gas when the tank is semi full to full



(1) EVAP Canister Purge Solenoid
(2) EVAP Canister
(3) Fuel Fill Neck/Fill Cap
(4) Rollover Valve/Fuel Tank Pressure (FTP) Sensor
(5) Fuel Tank
(6) EVAP Canister Vent Solenoid
(7) Vent Hose/Pipe
( EVAP Vapor Pipe
(9) EVAP Purge Pipe
(10) EVAP Service Port
Attached Thumbnails
Evap problem-02bonnieevap_zpsc0b9c7e9.png
jwfirebird is offline   Reply With Quote
The Following User Says Thank You to jwfirebird For This Useful Post:
jayd435 (03-02-2014)
Old 03-02-2014, 06:15 PM   #3
Member
Posts like a V-Tak
Thread Starter

jayd435's Avatar

Join Date: Dec 2006
Location: Lansing, MI
Posts: 36
Thanked 0 Times in 0 Posts
jayd435 is on a distinguished road
Default

Thats awesome. Thanks, bud. Not sure how to give props on here.
jayd435 is offline   Reply With Quote
Old 03-02-2014, 08:12 PM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

lower right corner of the post box.
