Default Coolant Leak (Major?)

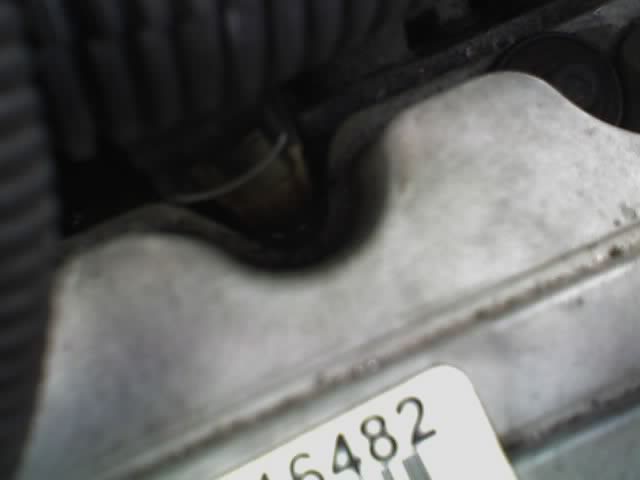

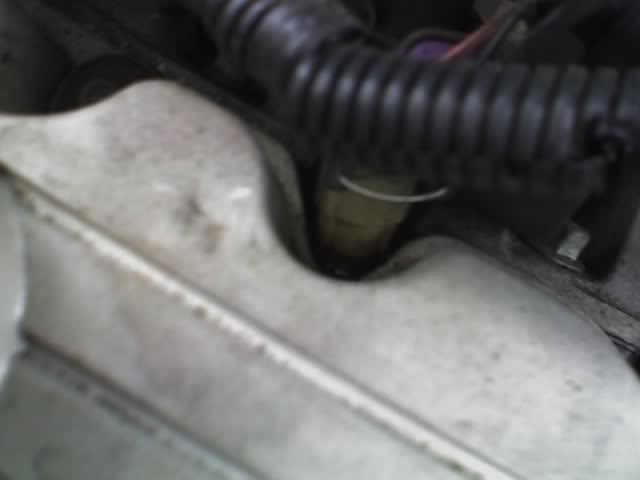

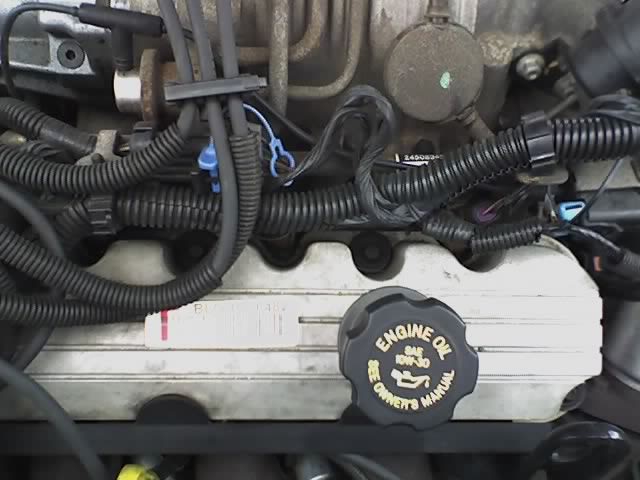

Okay, so I was reading a post on here saying that taking the engine cover off will allow it to run cooler, so I decided after filling up today to pop the hood and just take it off. So I do so and what do I find? A Coolant leak. The reservoir is more than full so I assume it isn't too bad. I'm a dunce when it comes to engines (unfortunately), i took some pics but its hard to see. I have green coolant so you can kind of see it pooling around the injectors. Its running no better/worse than usual. Any thoughts?

Name:  11-12-07_1237.jpg
Views: 0
Size:  40.1 KB

Name:  11-12-07_1238.jpg
Views: 0
Size:  14.6 KB

Name:  11-12-07_1239.jpg
Views: 0
Size:  15.1 KB
SapphireTorrent is offline   Reply With Quote
Old 11-12-2007, 03:25 PM   #2
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

Not sure on the leak..... but if you clean things up under the hood you might be able to see where it'* coming from better.
1994se is offline   Reply With Quote
Old 11-12-2007, 10:10 PM   #3
Member
Posts like a V-Tak

Join Date: May 2006
Location: Kokomo IN
Posts: 93
Thanks: 0
Thanked 0 Times in 0 Posts
JoeST is on a distinguished road
Default

If it'* pooling around the injectors I would suspect your Intake gasket. It'* pretty common on these cars (I had to fix mine just a few months back).
Clean the engine up as best you can to remove the water & keep a good eye on it for a few days. If it re appears again in the same place count on replacing them.
Also check your oil to make sure no water has gotten into it. It will appear milky after running if any has. If the leak has managed to find it way into the oil stop driving the car & get it fixed or you run the risk of washing out the bearings.
JoeST is offline   Reply With Quote
Old 11-12-2007, 10:20 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2006
Location: Tampa, Florida, USA
Posts: 417
Thanks: 0
Thanked 0 Times in 0 Posts
SapphireTorrent is on a distinguished road
Default

Yeah, I realize its pretty dirty. Never stays clean for long. Anyone wanna ballpark how much the LIM is?
SapphireTorrent is offline   Reply With Quote
Old 11-12-2007, 10:38 PM   #5
Member
Posts like a V-Tak

Join Date: May 2006
Location: Kokomo IN
Posts: 93
Thanks: 0
Thanked 0 Times in 0 Posts
JoeST is on a distinguished road
Default

I think I ended up spending around 50 bucks for everything when I done mine. You will need the Lower intake gaskets, as well as the SC/LIM gasket.
If your doing the work yourself, depending on your skills look at a minimum of a couple hours to change everything.
JoeST is offline   Reply With Quote
Old 11-12-2007, 11:16 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2006
Location: Tampa, Florida, USA
Posts: 417
Thanks: 0
Thanked 0 Times in 0 Posts
SapphireTorrent is on a distinguished road
Default

Unfortunately, when it comes to engine work my skills are nonexistent. My step brother would be able to do it, but I'll prolly just go to a shop.
SapphireTorrent is offline   Reply With Quote
Old 11-13-2007, 12:00 AM   #7
Junior Member

Join Date: Aug 2005
Location: North of Buffalo, NY *** NEBF '05, '06, '07 *** ***ONBF & NYBF 06; 07*** ***WCBF 06***
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
singscountry1967 is on a distinguished road
Default

I dipped a paper towel down in the screwholes to see for sure what kind of fluid I had. It was a mix of oil and Dex (...you mentioned green?). My LIM gasket was leaking with the UIM close to it.

IF it is determined to be UIM/LIM leak... The cost of the gasket kits (both UIM and LIM), oil/filter (yes, you'll need an oil change), and new coolant (what do you have? Good time to put in something OTHER than Dex) was only $100...it cost me $350 in labor. It'* about an 8 hour job if you're going to be billed for time. Of course if it'* a buddy, perhaps a case of beer will suffice.

Best $450 I ever spent though. Driving it with a leak is like sitting on a grenade with no pin....you know it'll blow, you just don't know when.
singscountry1967 is offline   Reply With Quote
Old 11-13-2007, 01:09 AM   #8
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2006
Location: Tampa, Florida, USA
Posts: 417
Thanks: 0
Thanked 0 Times in 0 Posts
SapphireTorrent is on a distinguished road
Default

Quote:
Originally Posted by singscountry1967
I dipped a paper towel down in the screwholes to see for sure what kind of fluid I had. It was a mix of oil and Dex (...you mentioned green?)
Yeah, I've already switched from Dex last year. And I spread the word that Dex is evil. Frankly, I've got quite a few problems with this motor. I've got some serious thinking to do. I'll have to really look into it tomorrow with my step brother. But I agree, its self-destruct if I don't get it taken care of. Thanks for the info.
SapphireTorrent is offline   Reply With Quote
Old 11-13-2007, 02:21 AM   #9
Senior Member
Posts like a Camaro

Join Date: Apr 2004
Location: Sioux Falls, SD. Member #2387
Posts: 907
Thanks: 0
Thanked 0 Times in 0 Posts
ten_gigahertz is on a distinguished road
Default

Try reading this! If your LIM or gaskets are going you'll probably see something similar.

http://www.bonnevilleclub.com/forum/...ic.php?t=71314
ten_gigahertz is offline   Reply With Quote
Old 11-13-2007, 01:42 PM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2006
Location: Tampa, Florida, USA
Posts: 417
Thanks: 0
Thanked 0 Times in 0 Posts
SapphireTorrent is on a distinguished road
Default

Quote:
Originally Posted by ten_gigahertz
Try reading this! If your LIM or gaskets are going you'll probably see something similar.

http://www.bonnevilleclub.com/forum/...ic.php?t=71314

My leak must be in the very early stages as the resevoir is completely full. I'm gonna take it to a mechanic tomorrow to find out whats going on exactly.
