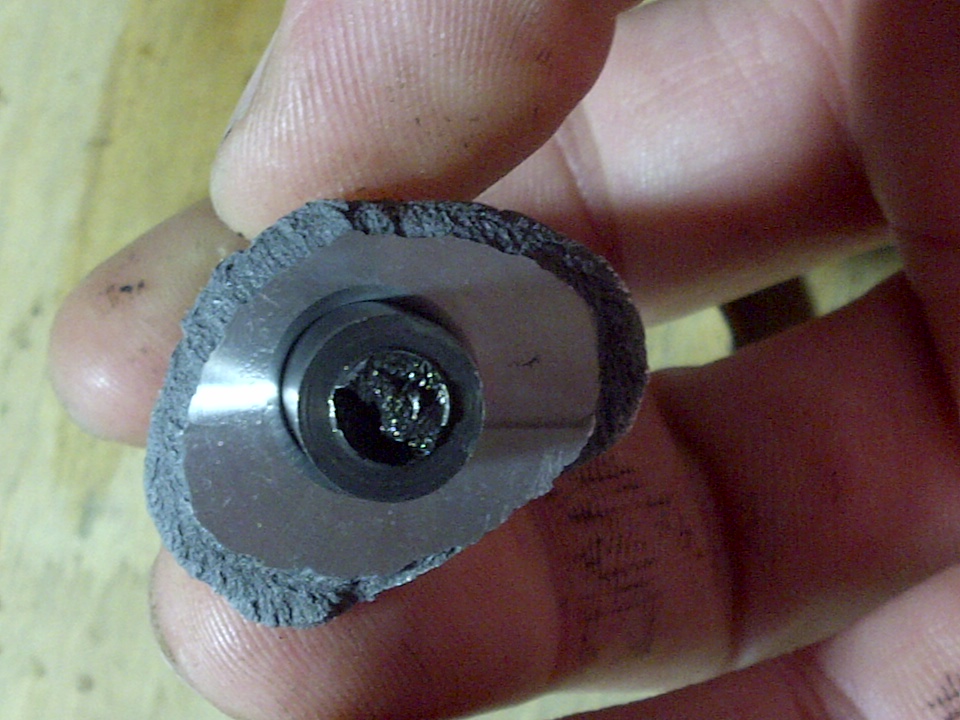

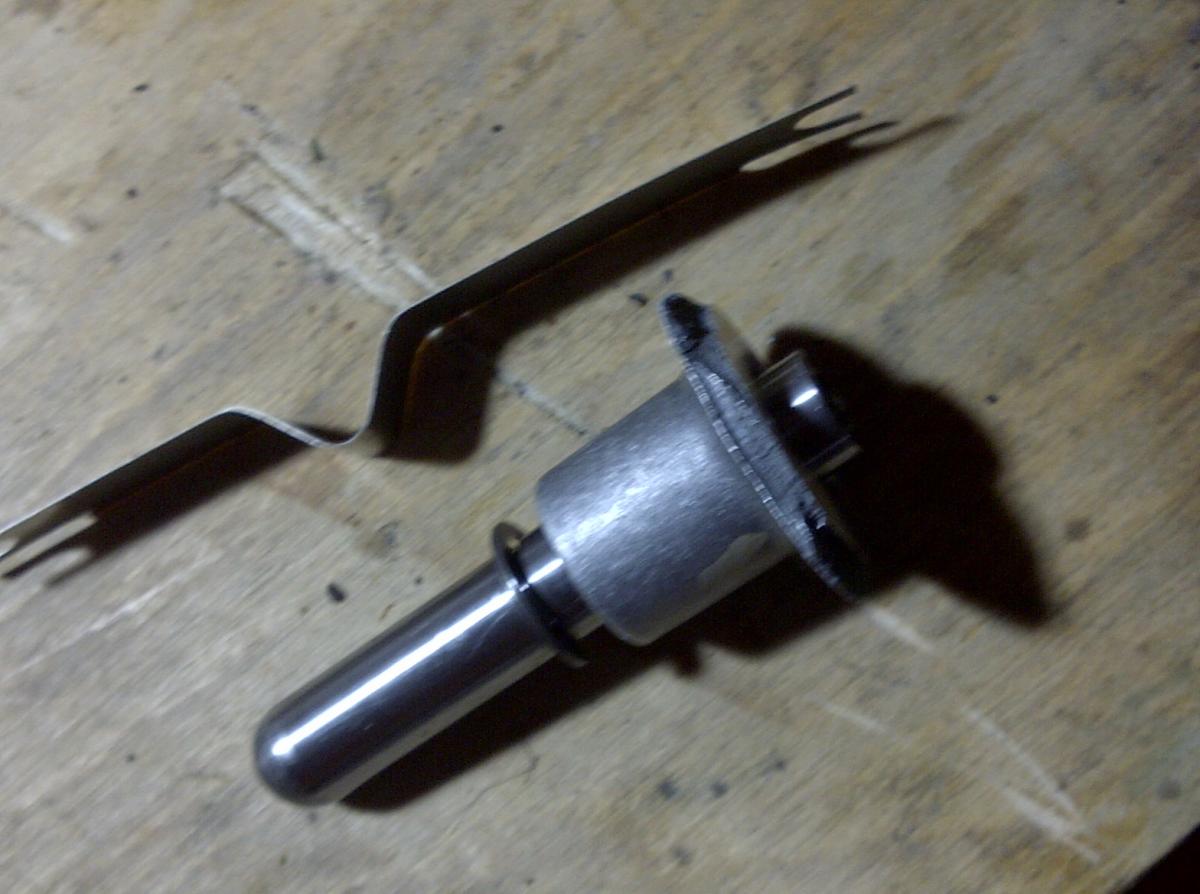

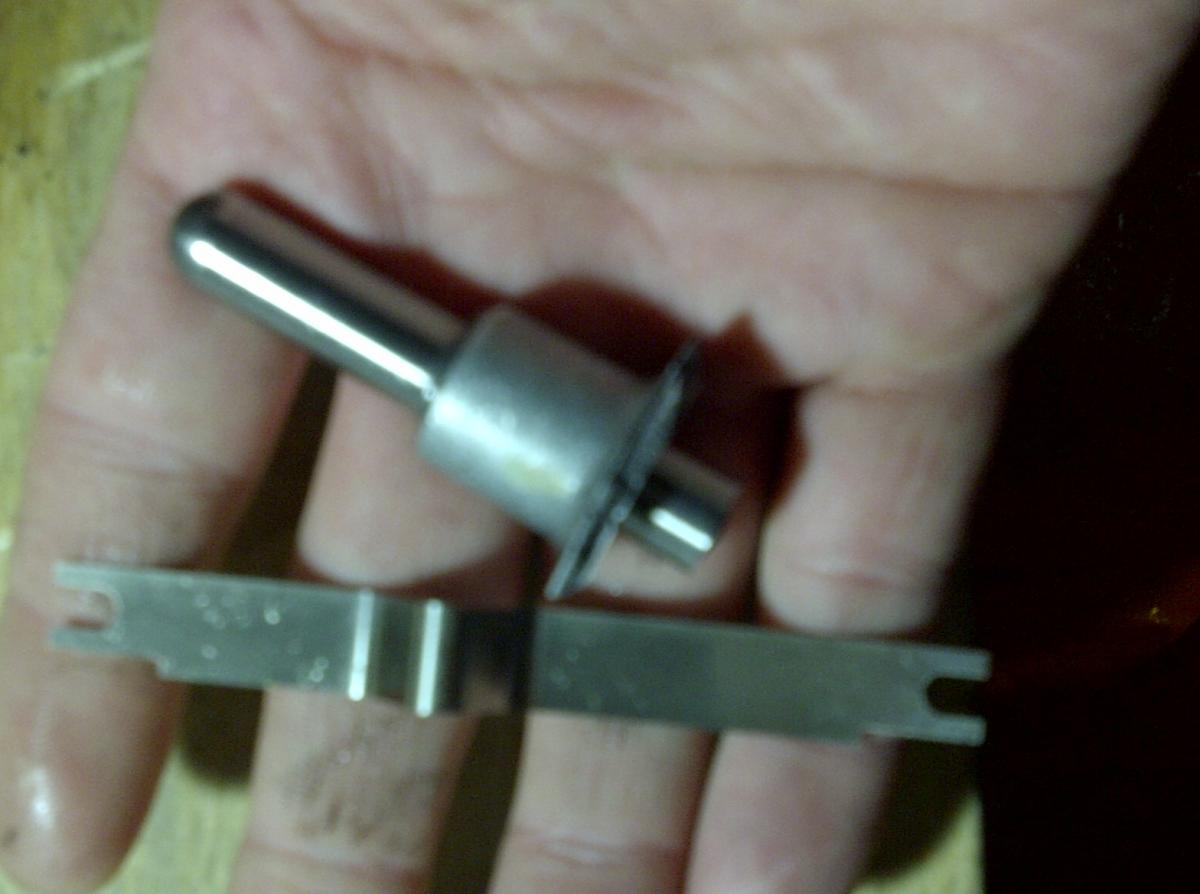

dropped the transmission pan to change the filter and found some "spare parts" in the pan.
simply routine maintenance, no issues with the tranny shifting ever.

vital parts? would it be safe to put the pan back up and go about my business?

thanks~
Attached Thumbnails
can you name these tranny parts?-img-20110611-00056.jpg   can you name these tranny parts?-img-20110611-00057.jpg   can you name these tranny parts?-img-20110611-00058.jpg
jethrow is offline   Reply With Quote
Old 06-12-2011, 04:21 AM   #2
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

The broken plastic piece in your hand looks like a piece of an old filter, they can be hard to get out so someone that has never done it probably snapped it off instead of pulling it out. How it ended up in the pan... not sure. Is there not a filter in your trans?

The metal piece inside of the broken filter piece doesn't look like anything I've ever seen before. Perhaps someone stuck it in to try and pry the broken filter piece out and got it stuck as well? Again, begs the questions how it was still in the pan and whether you have a filter in your trans.

Not sure about the clip, but one of the gear heads should know.
ymmot04 is offline   Reply With Quote
Old 06-12-2011, 08:07 AM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Danthurs is offline   Reply With Quote
Old 06-12-2011, 08:09 AM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

As for the broken park, is that plastic or aluminum? If aluminum it'* part of the trans case, looks like a pin for one of the bands. If so, not good.
Danthurs is offline   Reply With Quote
Old 06-12-2011, 08:42 AM   #5
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

The broken piece looks to me like part of the (overrun) servo that is in the pan. I would look @ the servo and make sure that everything is fine. The servo comes down easily by removing 3 10mm bolts.

You can see by the illustration that Dan posted where the thermostatic element is and # 122 is held in place by #121. So make sure that both pieces are in place.
sgp358 is offline   Reply With Quote
Old 06-12-2011, 11:04 AM   #6
Member
Posts like a V-Tak
Thread Starter

jethrow's Avatar

Join Date: Feb 2009
Location: Green Bay, WI
Posts: 88
Thanks: 0
Thanked 0 Times in 0 Posts
jethrow is on a distinguished road
Default

its aluminum ...... that illustration looks to be it. #122 is still there

so, whats a servo? and what can it do for me, or at this point what can i do for it
jethrow is offline   Reply With Quote
Old 06-12-2011, 11:16 AM   #7
Member
Posts like a V-Tak
Thread Starter

jethrow's Avatar

Join Date: Feb 2009
Location: Green Bay, WI
Posts: 88
Thanks: 0
Thanked 0 Times in 0 Posts
jethrow is on a distinguished road
Default

Quote:
Originally Posted by ymmot04 View Post
The broken plastic piece in your hand looks like a piece of an old filter, they can be hard to get out so someone that has never done it probably snapped it off instead of pulling it out. How it ended up in the pan... not sure. Is there not a filter in your trans?

The metal piece inside of the broken filter piece doesn't look like anything I've ever seen before. Perhaps someone stuck it in to try and pry the broken filter piece out and got it stuck as well? Again, begs the questions how it was still in the pan and whether you have a filter in your trans.

Not sure about the clip, but one of the gear heads should know.

no plastic pieces. the piece in my hand is the end view of the piece in the other two pictures. the filter was in place.
jethrow is offline   Reply With Quote
Old 06-12-2011, 11:57 AM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I think that part is what holds one of the bands in place. I will have to look over the manual and some pictures. If you need a rebuild or replace, let me know.
Danthurs is offline   Reply With Quote
Old 06-12-2011, 02:52 PM   #9
Senior Member
Posts like a Supercharger

Join Date: Feb 2011
Location: Margate, UK
Posts: 199
Thanks: 0
Thanked 0 Times in 0 Posts
rustyroger is on a distinguished road
Default

I read something on the FAQs on an automatic transmission site recently;
Q, I've just dropped my trans oil pan anf found some odd bits in it, the trans works fine though, what happened?.
A, Congratulations!, you are the first one to remove the pan on your car. When the car is on the assembly line the transmissions have plugs in the oil filler orifice, it is pushed into the pan when assembled onto the car and does no harm.
Doesn't look like a plug you have found though, is the trans working normally?.
