Default Brakes

I have a 2003 and I am thinking of putting on brakes myself.,front and rear..
Have any of you done this yourself?
Any special tools needed?
Any info would be appreciated
I do have general knowledge of putting on brakes but on up to a 1990 model that I owned.
afbryant is offline   Reply With Quote
Old 10-30-2007, 11:57 PM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

This should help you.
Brake Pad Replacement
Archon is offline   Reply With Quote
Old 10-31-2007, 08:20 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You will notice the Rear Brake article mentions not using a C clamp for anything more than 1mm. This is very important. The caliper piston is compressed back in with a special tool. They call it a spanner wrench/tool, Sears and most autoparts stores sell the tool for rotating the pistons back into the bore.
BillBoost37 is offline   Reply With Quote
Old 10-31-2007, 12:06 PM   #4
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default

I think someone (the resident lazya$$) was going to do a Tech Article on this.

If you've done brakes before, the fronts are pretty straightforward - no surprises there. I didnít use a C-clamp to free up the caliper from the disc, I just grabbed it and jiggled it a bit and the pads released enough to clear the disc (both front & rear).

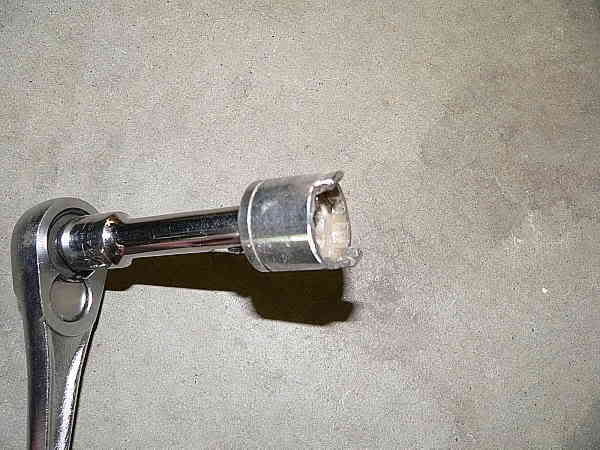

The rear disc brakes are a little different in that, as mentioned above, you donít push the puck back into the caliper like you do the front. This is important. It actually threads back in. You can purchase a tool from Sears or wherever, or you could build your own. As the resident tightwad, I grabbed an old cheap socket out of the toolbox and, using a Dremel, fabricated my own:

Name:  braketool1.jpg
Views: 0
Size:  24.5 KB

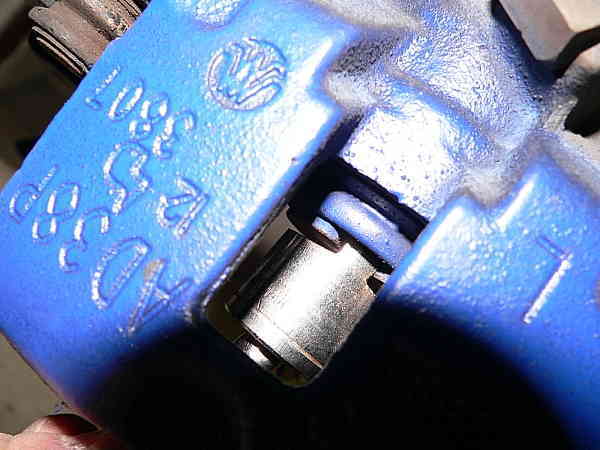

Here it is in action :
Name:  braketool2.jpg
Views: 0
Size:  26.0 KB

It doesnít take much effort to screw the puck into the caliper, so the tool doesnít have to be made of titanium or anything Ė it just has to fit into the slots and have means of turning it.

Follow those instructions Archon provided and you'll be in good shape.
SSE Motorhead is offline   Reply With Quote
Old 10-31-2007, 12:26 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Hmmm.....Stan. Who is that masked "resident lazya$$"?

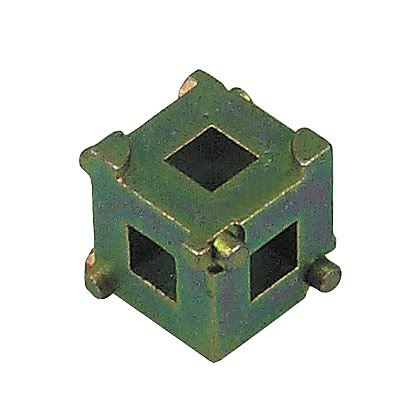

This is a picture of the tool that you can buy.
Name:  BrakeSpanner.jpg
Views: 0
Size:  21.1 KB
Archon is offline   Reply With Quote
Old 10-31-2007, 03:39 PM   #6
Junior Member
Thread Starter

Join Date: Oct 2007
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
afbryant is on a distinguished road
Default thanks

wow,thanks guys,could not get a better answer than that
afbryant is offline   Reply With Quote
Old 10-31-2007, 04:16 PM   #7
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default Re: thanks

Quote:
Originally Posted by afbryant
wow,thanks guys,could not get a better answer than that
Well, you could...but it would cost you.

Quote:
Originally Posted by Archon
Hmmm.....Stan. Who is that masked "resident lazya$$"?
This is a picture of the tool that you can buy.
That thing frightens me.

The resident lazy a$$ has chosen to remain anonymous.
SSE Motorhead is offline   Reply With Quote
Old 10-31-2007, 04:29 PM   #8
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Quote:
Originally Posted by Archon
Hmmm.....Stan. Who is that masked "resident lazya$$"?
This is a picture of the tool that you can buy.
its the cube... AHHH RUN
bandit is offline   Reply With Quote
Old 11-01-2007, 05:33 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2007
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
afbryant is on a distinguished road
Default

yeah,it does look sorta evil,some type torture device
afbryant is offline   Reply With Quote
Old 11-01-2007, 10:58 PM   #10
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

It'* less scary "in person". It does look a bit like a Borg cube, though. It attaches to a 3/8 inch drive ratchet.
Archon is offline   Reply With Quote
