Default Another LIM question

OK I guess I didn't pay enough attention. Those short rubber pieces that go on the ends of the intake, does the flange go to the inside? It'* hard to tell in the pics I"ve seen. It doesn't look right if they go to the outside. Not much of the piece is on the rail.
Grimm is offline   Reply With Quote
Old 09-17-2009, 06:45 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

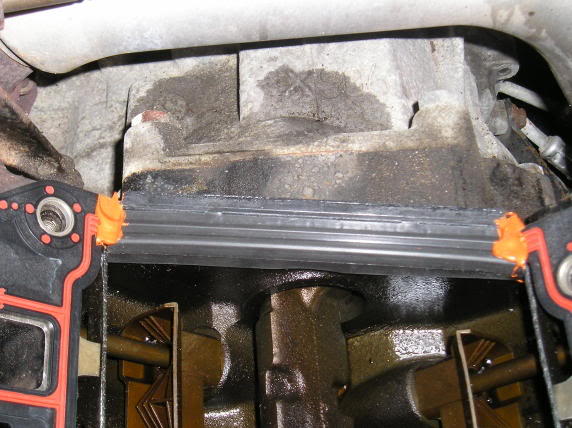

Are you talking about the rubber seal that goes across the block between the heads?

Name:  P1010441.jpg
Views: 1
Size:  51.8 KB

Look close, you should be able to see how it goes on. I'll look to see if I have a better picture.
Danthurs is offline   Reply With Quote
Old 09-17-2009, 06:48 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

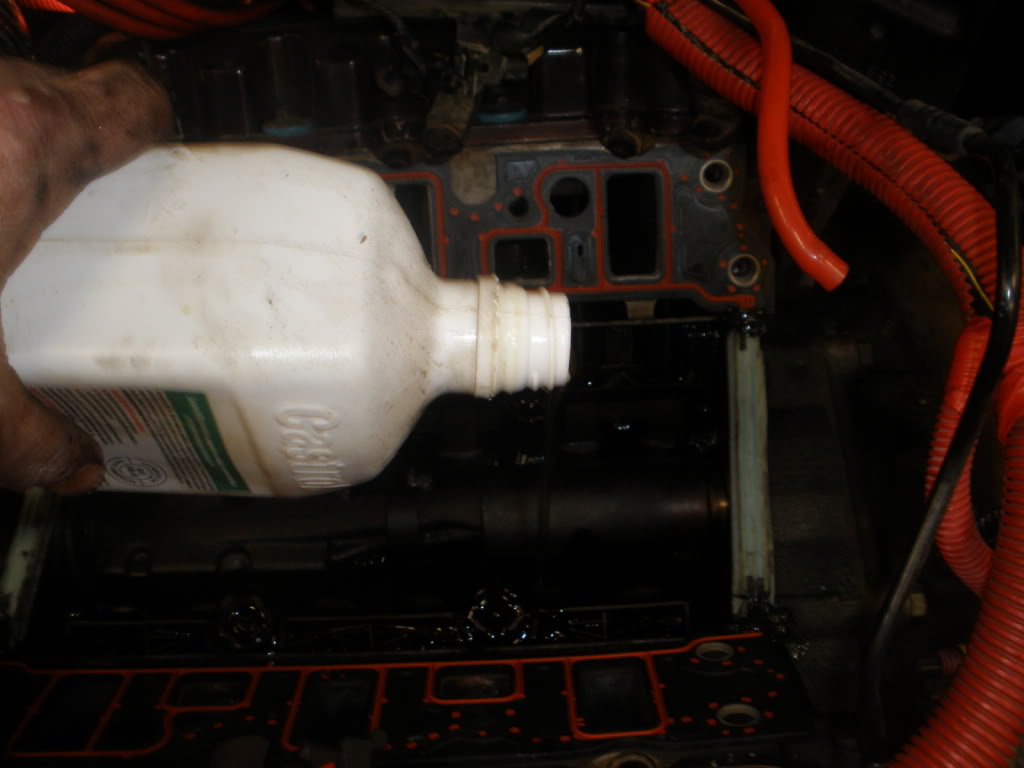

This is the only other picture I could find.

Name:  P4090014.jpg
Views: 0
Size:  68.2 KB
Danthurs is offline   Reply With Quote
Old 09-17-2009, 07:02 PM   #4
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Aug 2006
Location: West Michigan
Posts: 1,152
Thanks: 0
Thanked 1 Time in 1 Post
Grimm is on a distinguished road
Default

Yes. The pins go in the holes so the bend flange goes down. And it appears that flange goes inside the crankcase right? If I put it outside, not much rubber covers the rail and it doesn't look right. Stupid me for not paying close attention to the old ones.
Grimm is offline   Reply With Quote
Old 09-17-2009, 07:03 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yes, flange goes inside.
