Default 2k+ solid motor mount

I need input from each of you that have done this.

Parts, procedures, and pics if you have them. This is for a Techinfo article.
willwren is offline   Reply With Quote
Old 02-05-2006, 03:12 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Feb 2006
Location: Killeen, TX
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
Awhit003 is on a distinguished road
Default

What are the advantages of doing this?
I can see the purpose on a suped up RWD, but is this really necessary on a FWD?
Would this have any effect on torque steer?
What about vibration?
Awhit003 is offline   Reply With Quote
Old 02-05-2006, 04:43 PM   #3
Senior Member
Posts like a Northstar

Join Date: Feb 2003
Location: Sacramento, CA WCBF '06, '07 survivor
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
rrounds is on a distinguished road
Default

Quote:
Originally Posted by Awhit003
What are the advantages of doing this?
I can see the purpose on a suped up RWD, but is this really necessary on a FWD?
Would this have any effect on torque steer?
What about vibration?
Hi , i made the first solid mount for the 2000+ Bonneville. Have over 80,000 miles on it with NO complaints.
go outside, lift the hood, rock the car(back and forth) in park, see all that movement
that is not good for all the fule lines, electrical lines, exhaust pipe so on and so on.
it will also help the torque steer. it will help put the power to the ground.

ROD
rrounds is offline   Reply With Quote
Old 02-05-2006, 04:59 PM   #4
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

taken straight from the post...

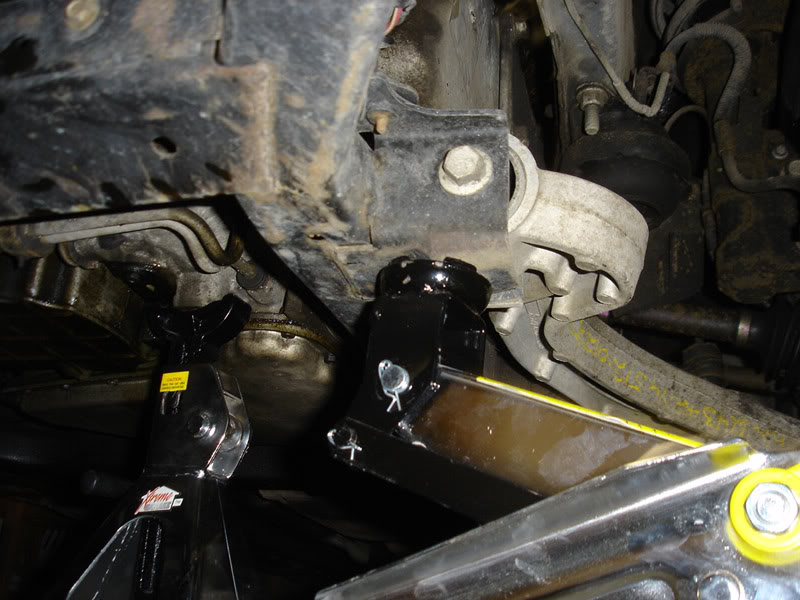

jack car up, put jack stand under the engine/tranny and set jack back down... slightly.. enought to take tension off the mount... take off 3 bols on the mount, and 1 on the bottom, and remove all together
Name:  DSC09172.jpg
Views: 11
Size:  85.4 KB

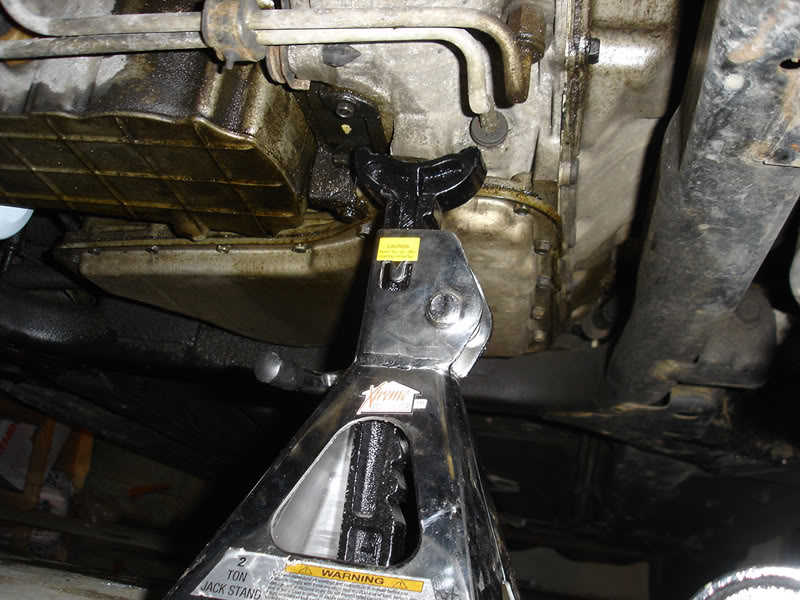

Name:  DSC09173.jpg
Views: 8
Size:  105.3 KB

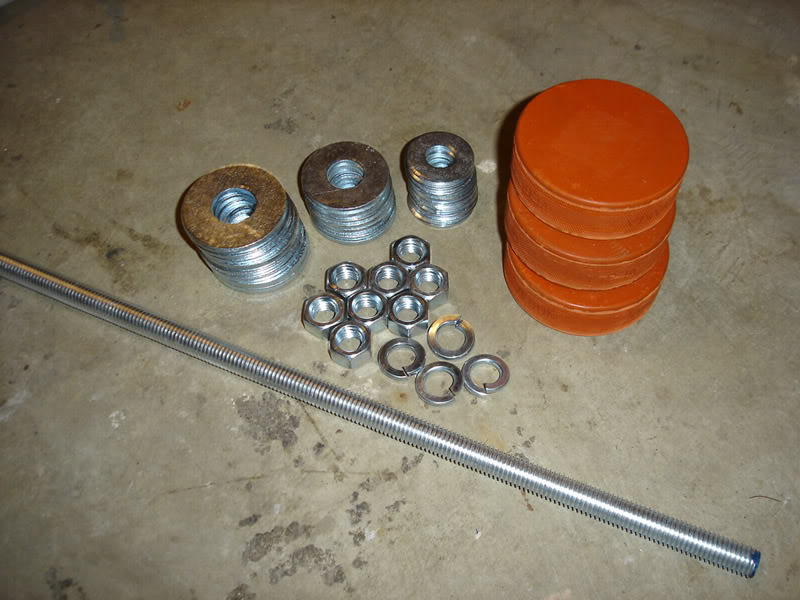

parts i picked up - pucks were $2.99 each and the bolt setup was $10
Name:  DSC09162.jpg
Views: 10
Size:  88.3 KB

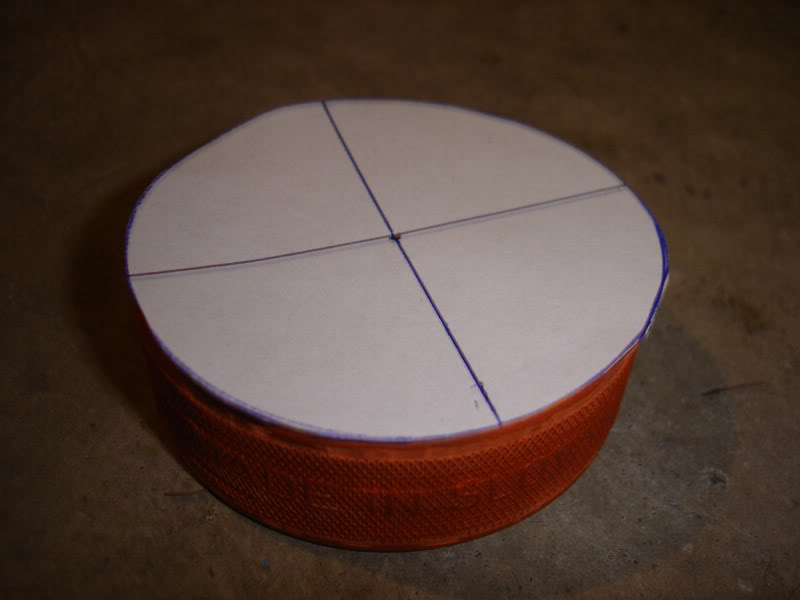

make a template to center your drill holes, however this is not really crucial
Name:  DSC09163.jpg
Views: 9
Size:  36.8 KB

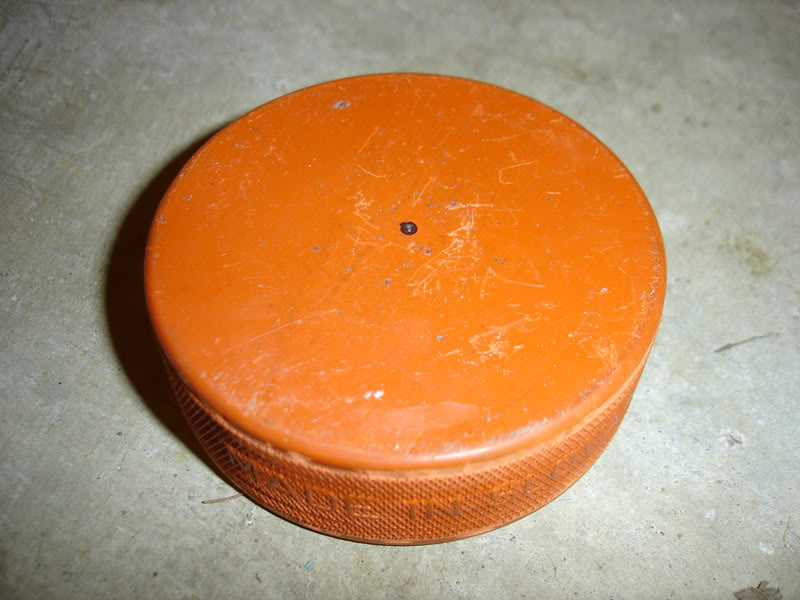

mark...
Name:  DSC09164.jpg
Views: 11
Size:  74.1 KB

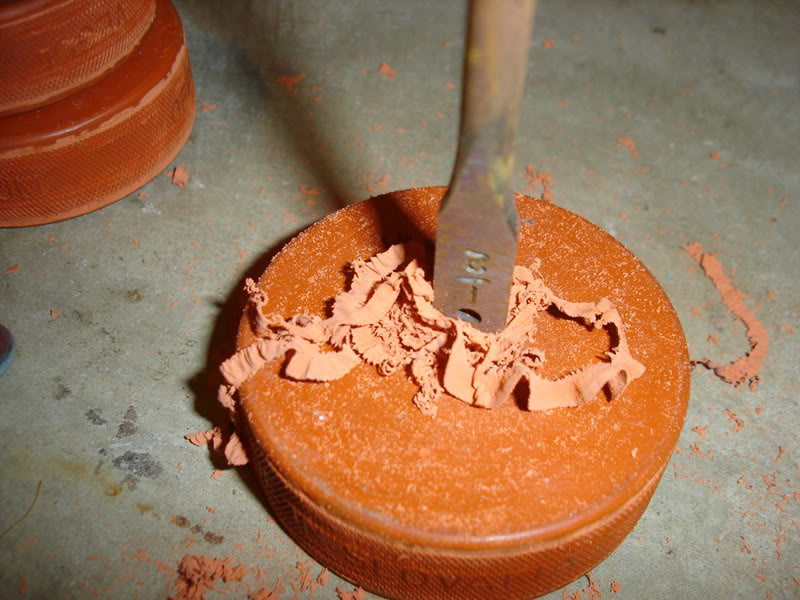

and drill
Name:  DSC09165.jpg
Views: 11
Size:  96.1 KB

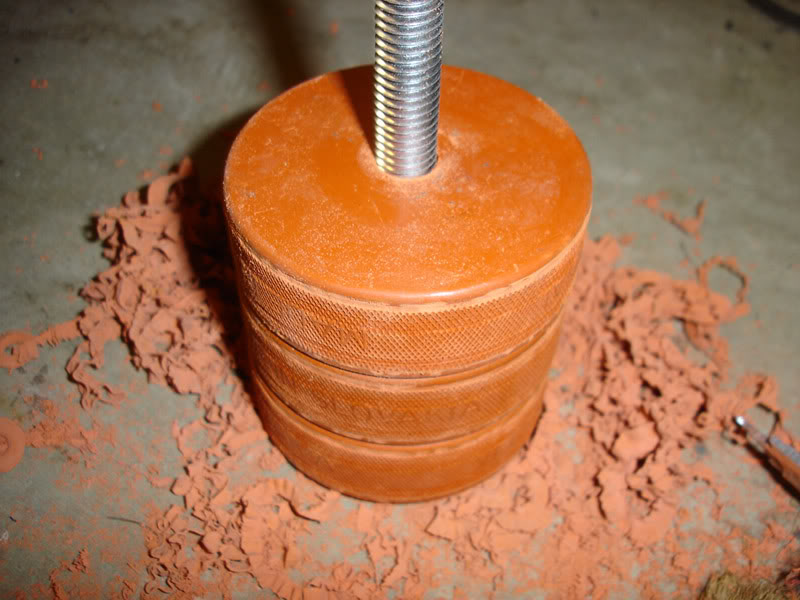

put bolt thru
Name:  DSC09166.jpg
Views: 13
Size:  78.8 KB

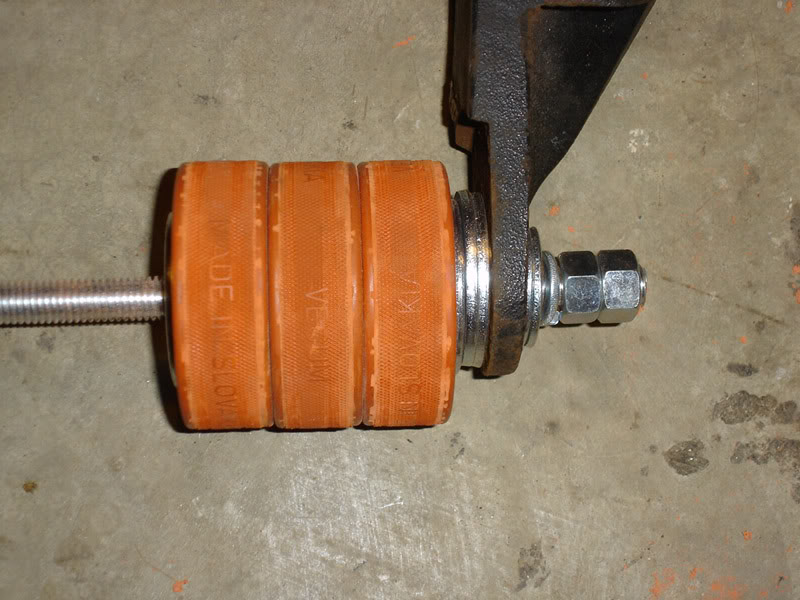

make sure everything is just as thick as the old mount
Name:  DSC09167.jpg
Views: 8
Size:  89.8 KB

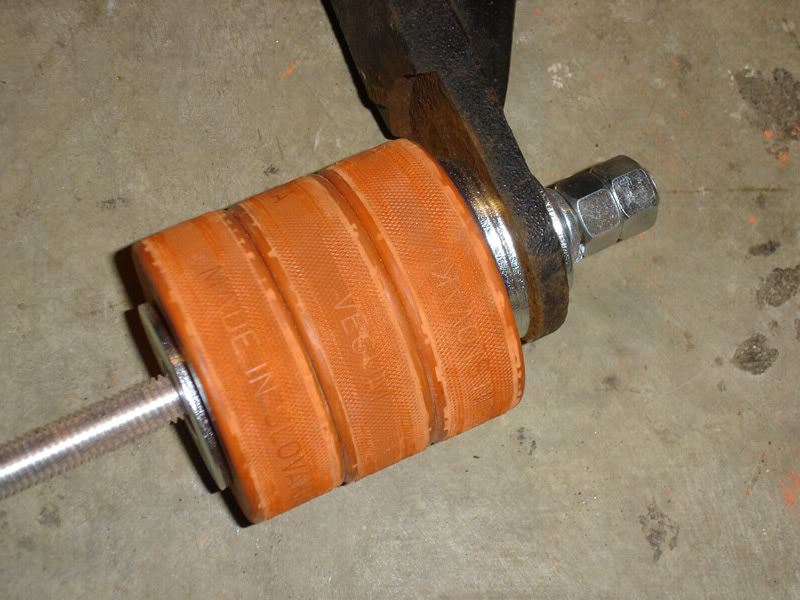

Name:  DSC09168.jpg
Views: 9
Size:  86.8 KB

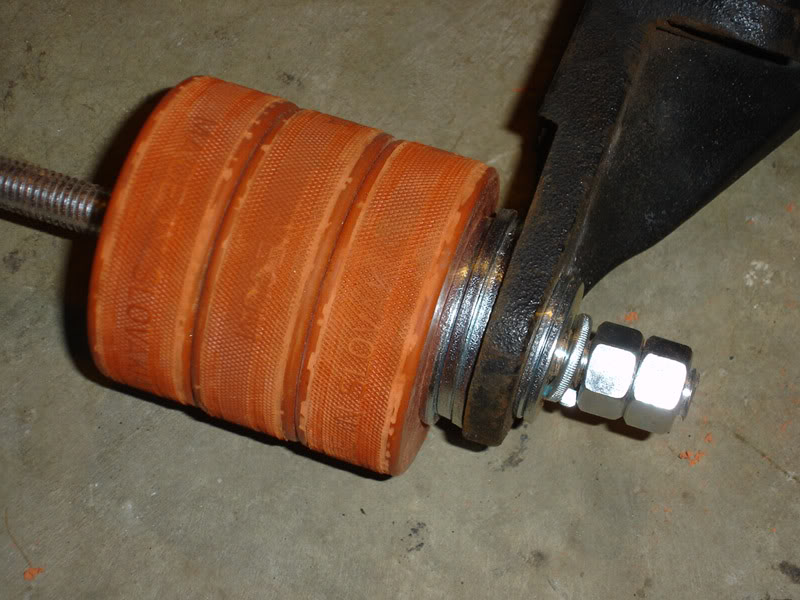

Name:  DSC09169.jpg
Views: 10
Size:  87.9 KB

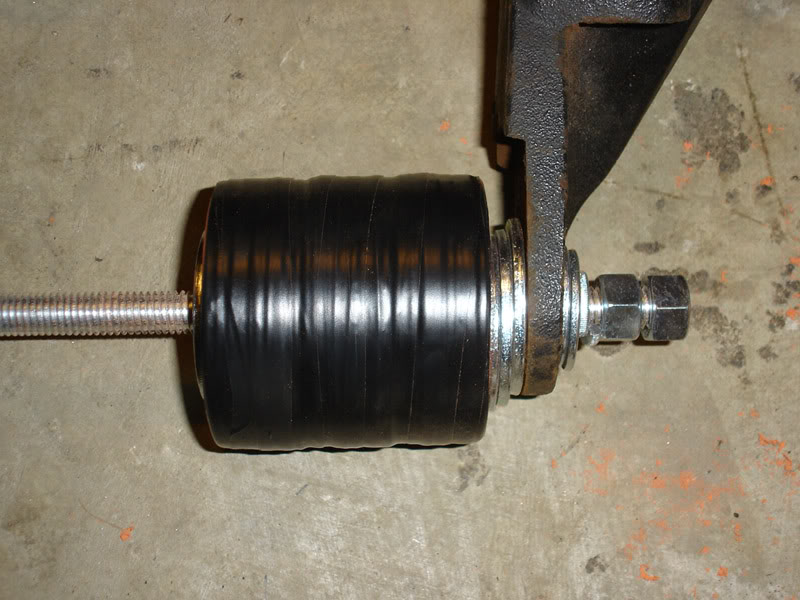

wrapped in electrical tape just for cosmetic
Name:  DSC09170.jpg
Views: 10
Size:  86.8 KB

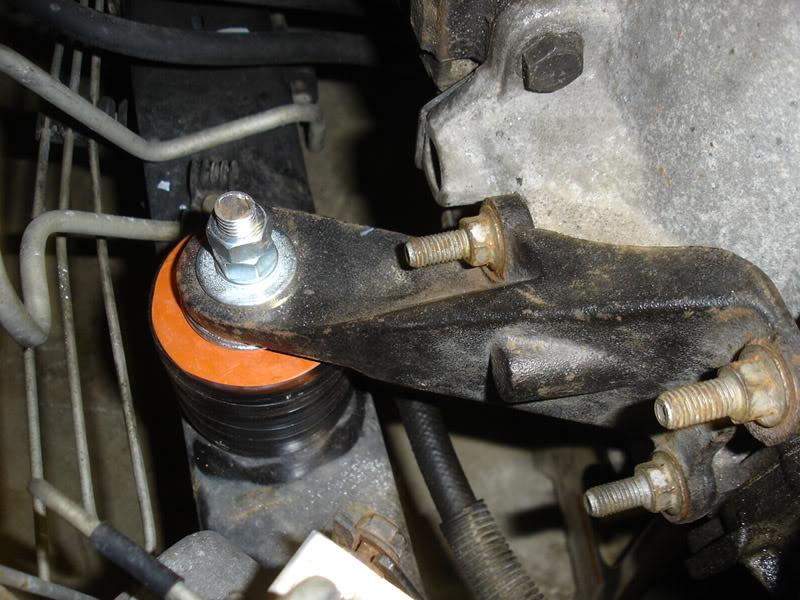

attach bracket in reverse order
Name:  DSC09174.jpg
Views: 9
Size:  105.6 KB
Name:  DSC09176.jpg
Views: 9
Size:  87.6 KB

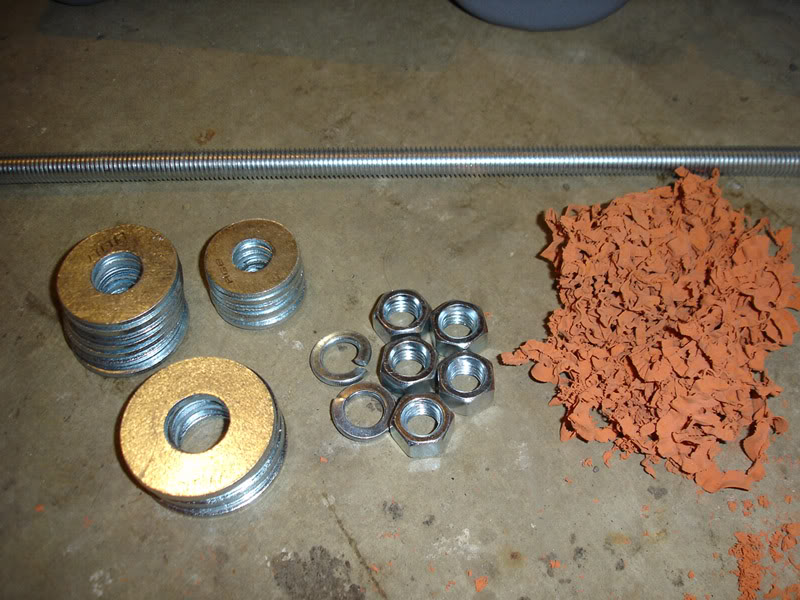

leftovers that i can return to home depot... so about a $13 mod
Name:  DSC09177.jpg
Views: 9
Size:  107.9 KB
harofreak00 is offline   Reply With Quote
Old 02-05-2006, 05:55 PM   #5
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: montreal, Canada
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
mike_peperni is on a distinguished road
Default

well done.





..And it really help torque steer, no more since i have my solid motor mount, and the power is instantly feel.
mike_peperni is offline   Reply With Quote
Old 02-09-2006, 07:14 PM   #6
Member
Posts like a V-Tak

Join Date: Nov 2005
Location: The Big "OH"
Posts: 92
Thanks: 0
Thanked 0 Times in 0 Posts
mikey383 is on a distinguished road
Default

I used the same three hockey pucks, but also a 1/2" thick piece of rubber (that I cut out with a 3" hole saw) on top of them, and a 12" piece of 1/2" threaded rod (allthread), two nuts, two large washers, and a lockwasher. Same procedure.
mikey383 is offline   Reply With Quote
Old 02-09-2006, 09:37 PM   #7
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: montreal, Canada
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
mike_peperni is on a distinguished road
Default

Quote:
Originally Posted by mikey383
I used the same three hockey pucks, but also a 1/2" thick piece of rubber (that I cut out with a 3" hole saw) on top of them, and a 12" piece of 1/2" threaded rod (allthread), two nuts, two large washers, and a lockwasher. Same procedure.
nice

What do you think about it?
mike_peperni is offline   Reply With Quote
Old 02-10-2006, 12:38 AM   #8
Member
Posts like a V-Tak

Join Date: Nov 2005
Location: The Big "OH"
Posts: 92
Thanks: 0
Thanked 0 Times in 0 Posts
mikey383 is on a distinguished road
Default

Quote:
Originally Posted by mike_peperni
Quote:
Originally Posted by mikey383
I used the same three hockey pucks, but also a 1/2" thick piece of rubber (that I cut out with a 3" hole saw) on top of them, and a 12" piece of 1/2" threaded rod (allthread), two nuts, two large washers, and a lockwasher. Same procedure.
nice

What do you think about it?
I can't really say that I noticed much more preformance, but I can say that it made my steering clunk more... It does squeel the tires alot easier than before, so I know it'* putting power down quicker. The ride doesn't seem any rougher, and when I turn corners, it does feel like there'* more available power. I need to check the allthread, just to make sure that it hasn't stretched any, but it'* too damn cold here to be working on a car outside.
mikey383 is offline   Reply With Quote
