Default 2000+ front seats removal & airbag disable

Seat Replacement - Front Bucket

Removal Procedure

Caution
When you are performing service on or near the SIR components or the SIR wiring, you must disable the SIR system. Refer to Disabling the SIR System. Failure to follow the correct procedure could cause air bag deployment, personal injury, or unnecessary SIR system repairs.


Disable the SIR system.
Turn the steering wheel so that the vehicle'* wheels are pointing straight ahead.
Turn the ignition switch to the OFF position.
Remove the key from the ignition switch.

Important
With the SIR fuse removed and the ignition switch in the ON position, The AIR BAG warning lamp illuminates. This is normal operation, and does not indicate an SIR system malfunction.


Name:  seats1.gif
Views: 602
Size:  10.5 KB
Remove the SIR fuse from the rear fuse block.
Rear fuse block is located under the rear seat.

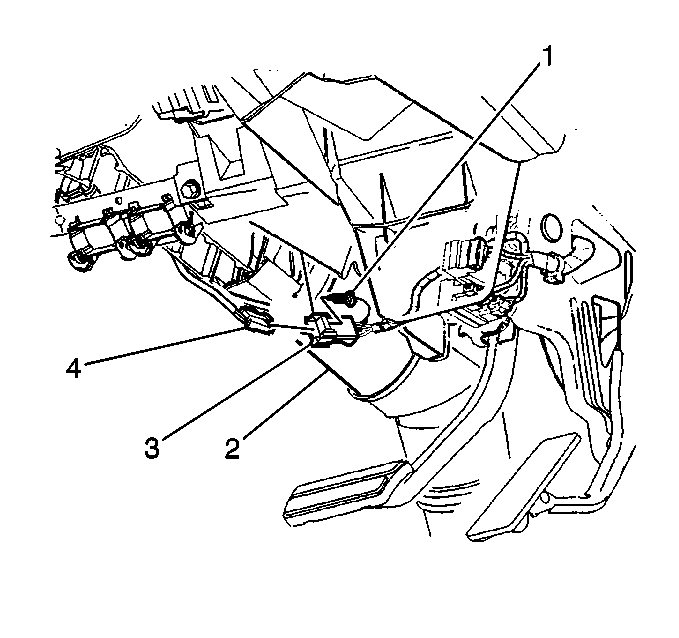

Name:  seats2.gif
Views: 517
Size:  13.7 KB
Remove the driver sound insulator.

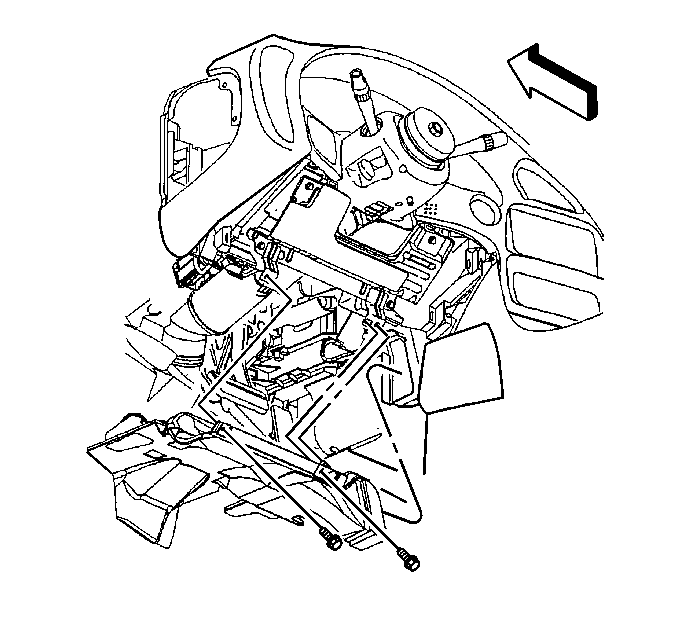

Name:  seats5.gif
Views: 453
Size:  15.3 KB
Remove the fasteners at the rear edge of the insulator to disengage from the lower instrument panel.
Pry out the retainers to release.

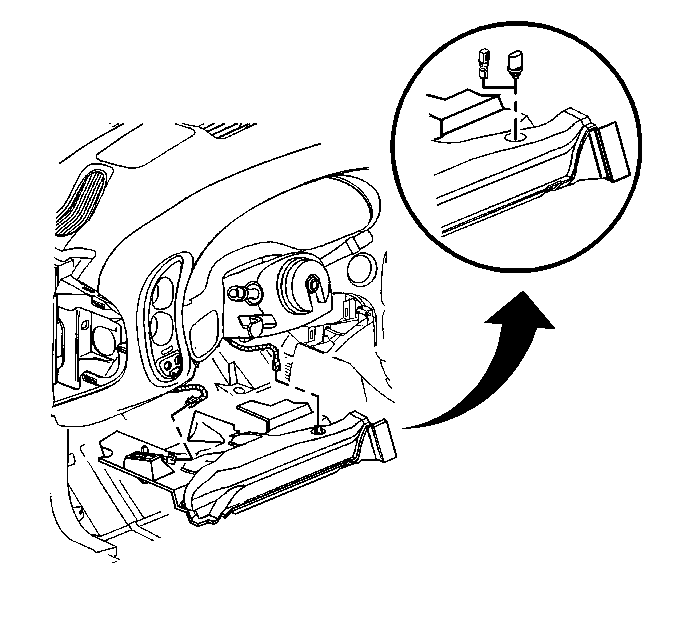

Name:  seats6.gif
Views: 458
Size:  13.1 KB
Turn the heater temperature sensor 1/4 turn to release and allow to remain connected to its wire (CJ2 vehicles only).
Disconnect the remaining electrical connectors as necessary.

Remove the Connector Position Assurance (CPA) (1) from the driver yellow 2-way connector (3) located next to steering column (2).
Disconnect the driver fontal air bag yellow 2-way connector (4) from the vehicle harness yellow 2-way connector (3).


Name:  seats3.gif
Views: 482
Size:  11.6 KB
Remove the passenger sound insulator.

Name:  seats7.gif
Views: 598
Size:  10.0 KB
Remove the fasteners at the rear edge of the insulators in order to disengage from the lower instrument panel.
Pry out the retainers in order to release.
Turn the heater temperature sensor 1/4 turn in order to release and allow to remain connected to its wire (CJ2 vehicles only).

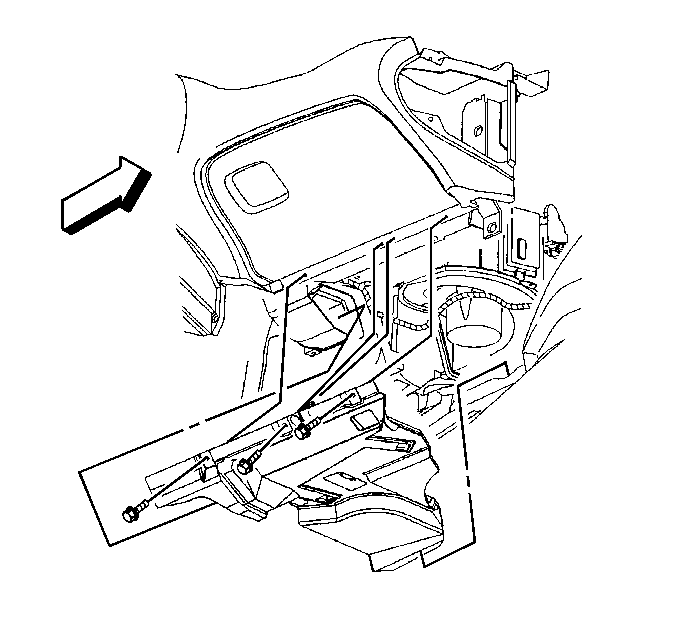

Name:  seats8.gif
Views: 474
Size:  12.6 KB
Disconnect the electrical connectors.
Slide the insulator rearward in order to remove.

Remove the Connector Position Assurance (CPA) (4) from the passenger yellow 2-way connector (1) located above the passenger sound insulator.
Disconnect the passenger (IP) fontal air bag yellow 2-way connector (2) from the vehicle harness yellow 2-way connector (1).


Name:  seats4.gif
Views: 1104
Size:  11.7 KB
Remove the Connector Position Assurance (CPA) from the driver side air bag yellow 2-way connector (4) located under the driver seat.
Disconnect the driver side air bag yellow 2-way connector (1) from the vehicle harness yellow 2-way connector (4).
Remove the Connector Position Assurance (CPA) from the passenger side air bag yellow 2-way connector (4) located under the passenger seat.
Disconnect the passenger side air bag yellow 2-way connector (1) from the vehicle harness yellow 2-way connector (4).

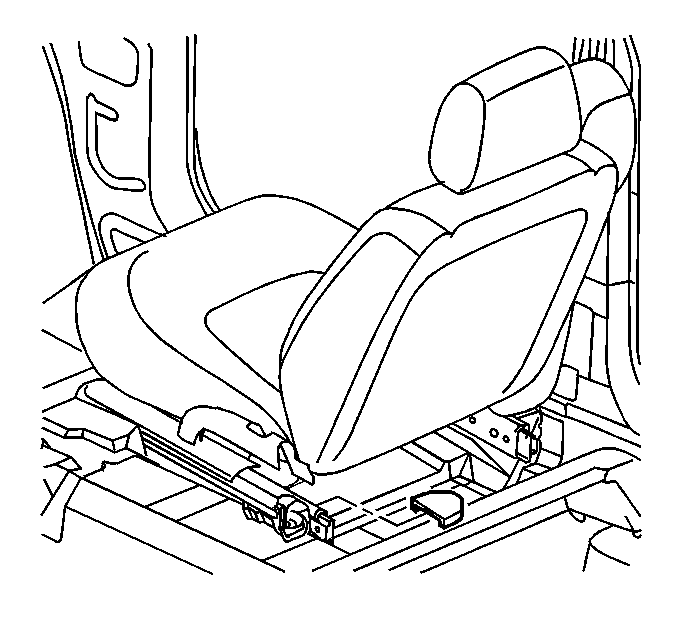

Name:  seats9.gif
Views: 480
Size:  13.5 KB
Move the seat to the full forward position.

Name:  seats10.gif
Views: 463
Size:  6.2 KB
Remove the rear seat track bolt trim cover on the inboard seat track.

Name:  seats11.gif
Views: 458
Size:  9.0 KB
Remove the rear seat track trim cover (1) from the outboard seat track.

Name:  seats12.gif
Views: 466
Size:  10.1 KB
Remove the seat track retainer bolts.
Move the seat to the full rearward position.

Name:  seats13.gif
Views: 463
Size:  9.7 KB
Remove the front seat track bolt trim covers.

Name:  seats14.gif
Views: 465
Size:  10.6 KB
Remove the front seat track bolts.

Disconnect the electrical connectors.
Remove the seat from the vehicle.


Installation Procedure

Name:  seats14.gif
Views: 465
Size:  10.6 KB
Install the seat into the vehicle.

Name:  seats11.gif
Views: 458
Size:  9.0 KB
Connect the electrical connectors.




Notice
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.


Name:  seats9.gif
Views: 480
Size:  13.5 KB
Install the track retainer bolts. Tighten
Tighten the seat track retainer bolts to 30 Nm (22 lb ft).

Name:  seats9.gif
Views: 480
Size:  13.5 KB
Install the seat track bolt trim covers.

Name:  seats13.gif
Views: 463
Size:  9.7 KB
Install the front seat retainer bolts. Tighten
Tighten the front seat track retainer bolts to 30 Nm (22 lb ft).

Name:  seats12.gif
Views: 466
Size:  10.1 KB
Install the front seat track retainer bolt covers.
Reposition the seat.

Enable the SIR system.

Name:  seats4.gif
Views: 1104
Size:  11.7 KB
Remove the key from the ignition switch.
Connect the passenger side air bag yellow 2-way connector (1) to vehicle harness yellow 2-way connector (4) located under the passenger seat.
Install the Connector Position Assurance (CPA) to the passenger side air bag yellow 2-way connector (4).
Connect the driver side air bag yellow 2-way connector (1) to vehicle harness yellow 2-way connector (4) located under the driver seat.
Install the Connector Position Assurance (CPA) to the driver side air bag yellow 2-way connector (4).

Name:  seats3.gif
Views: 482
Size:  11.6 KB
Connect the passenger (IP) fontal air bag yellow 2-way connector (2) to the vehicle harness yellow 2-way connector (1) located above the passenger sound insulator.
Install the Connector Position Assurance (CPA) (4) to the passenger yellow 2-way connector (1).
Install the passenger sound insulator.

Name:  seats8.gif
Views: 474
Size:  12.6 KB
Set the forward edge of the insulator onto the shelf of the dash mat.
Install the heater temperature sensor (CJ2 vehicles only).
Connect the electrical connector.

Name:  seats7.gif
Views: 598
Size:  10.0 KB
Align the insulator to the floor duct at the heating, ventilating and air conditioning module.
Align the snap tab fasteners to the lower instrument panel and push upward in order to engage.

Notice
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.



Install the fasteners. Tighten
Tighten the fasteners to 2 Nm (18 lb in).

Name:  seats2.gif
Views: 517
Size:  13.7 KB
Connect the driver fontal air bag yellow 2-way connector (4) to the vehicle harness yellow 2-way connector (3) located next to steering column (2).
Install the Connector Position Assurance (CPA) (1) to the driver yellow 2-way connector (3).
Install the driver sound insulator.

Name:  seats6.gif
Views: 458
Size:  13.1 KB
Position and turn 1/4 turn to install the heater temperature sensor (CJ2 vehicles only).
Connect the remaining electrical connectors.

Name:  seats5.gif
Views: 453
Size:  15.3 KB
Set the forward edge of the insulator onto the shelf of the dash mat.

Important
Correct installation is necessary for the correct heater air distribution.



Align the insulator to the floor duct at the heating, ventilation and air conditioning module.
Align the snap tab fasteners to the lower instrument panel and push upward to engage.

Notice
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.



Install the fasteners into the lower instrument panel. Tighten
Tighten the fasteners to 2 Nm (18 lb in).

Name:  seats1.gif
Views: 602
Size:  10.5 KB
Rear fuse block is located under the rear seat.
Install the SIR fuse to the rear fuse block.
Staying well away from all air bags, turn the ignition switch to the ON position.
The AIR BAG warning lamp will flash 7 times.
The AIR BAG warning lamp will then turn OFF.
Attached Images
File Type: gif seats14.gif (10.6 KB, 27 views)
File Type: gif seats11.gif (9.0 KB, 26 views)
File Type: gif seats9.gif (13.5 KB, 27 views)
File Type: gif seats9.gif (13.5 KB, 29 views)
File Type: gif seats13.gif (9.7 KB, 28 views)
File Type: gif seats12.gif (10.1 KB, 23 views)
File Type: gif seats4.gif (11.7 KB, 28 views)
File Type: gif seats3.gif (11.6 KB, 30 views)
File Type: gif seats8.gif (12.6 KB, 25 views)
File Type: gif seats7.gif (10.0 KB, 34 views)
File Type: gif seats2.gif (13.7 KB, 29 views)
File Type: gif seats6.gif (13.1 KB, 21 views)
File Type: gif seats5.gif (15.3 KB, 29 views)
File Type: gif seats1.gif (10.5 KB, 26 views)
harofreak00 is offline   Reply With Quote
Old 03-17-2006, 09:09 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Great info. Haro!
Archon is offline   Reply With Quote
Old 03-17-2006, 09:52 AM   #3
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

Good write up, glad I have a 97
sonoma_zr2 is offline   Reply With Quote
Old 03-17-2006, 12:19 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

wow....that is a pain in the arse......


excellent write up
1993 SLE is offline   Reply With Quote
Old 03-17-2006, 09:30 PM   #5
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

I didnt do half of that, I never took anything out of insulator panel.
Took out SIR fuse,
Took out seat bolts and moved seat up, disconnect battery ,undid connectors under seat
Took seat out.
Hope its ok .Thanks Haro, appreciate it
Now I need front part of console , if you got it .Thanks
jdq is offline   Reply With Quote
Old 03-18-2006, 11:48 AM   #6
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

by not fulling disarming the SIR system you put yourself at risk
harofreak00 is offline   Reply With Quote
Old 03-18-2006, 02:58 PM   #7
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Quote:
Originally Posted by jdq
I didnt do half of that, I never took anything out of insulator panel.
Took out SIR fuse,
Took out seat bolts and moved seat up, disconnect battery ,undid connectors under seat
Took seat out.
Hope its ok .Thanks Haro, appreciate it
Now I need front part of console , if you got it .Thanks
Agreed, if you remove the SIR fuse, no need to go through all those other iterations. Additionally, if you disconnect the battery then there is really no need to remove the SIR fuse. Still a good write up & grahphic.
markwb is offline   Reply With Quote
Old 03-18-2006, 09:39 PM   #8
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by markwb
Agreed, if you remove the SIR fuse, no need to go through all those other iterations. Additionally, if you disconnect the battery then there is really no need to remove the SIR fuse. Still a good write up & grahphic.

IIRC the SIR system still may deploy even without battery voltage....the system can still go off even with the fuse pulled....I would NOT doing anything but what the FSM says....the Airbag system is not something to fool around with
1993 SLE is offline   Reply With Quote
Old 03-18-2006, 10:07 PM   #9
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

im with pat... considering how badly it can hurt you...and how much they cost to replace, along with all the damage they would cause...
harofreak00 is offline   Reply With Quote
Old 03-18-2006, 11:10 PM   #10
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

I agree I just didnt know, I didnt see your thread till after I removed them I guess Im lucky I didnt get bagged in the head.
jdq is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
turn off airbag warning light after front seat swap? erekstad General GM Chat 4 05-22-2010 03:27 PM
Im Not Sure>>>>>>^*&(&(&(& Cookseytonyc 1992-1999 4 08-19-2009 06:59 PM
&%(*#(#($&Y^&#&$*(%(^%)%^) willwren Lounge 24 10-11-2007 06:56 PM
$&)$&*)#&+()#%& )#@(%&#)%*(&+_ Maymybonnieliveforevr Lounge 6 05-02-2007 07:07 PM
mom & hailey, mom & kim, mom & kim & mom harofreak00 Lounge 6 04-09-2007 03:40 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 02:13 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
