Default 01 SSEi I need vacuum numbers

I've been chasing an EGR insufficient flow DTC for awhile now. In the past, when I had this, I was always able to find a small leak in the emissions vacuum line and/or fittings. I can't find one this time.

So, I humbly ask other members since I only have one Bonneville, to help me with some normal readings. I have measured at the test port with a gauge, have monitored with scan tool to see what the MAP was reading, and, pulled the MAP sensor and bench tested it. The readings were about what they should be on a 2 Torr sensor. Reading about 2.25 at atmosphere, and close to the numbers for 5,10,15, 20,25 inches applied with hand vacuum pump. I have a variable bench DC supply that I metered to 5.00 volts to set the reference voltage when taking readings with the multimeter.

The PCM uses a series of readings taken by commanding the EGR full open during deceleration from normal road speeds to monitor a rise in MAP pressure. If the average pressure delta isn't enough, you get the Insufficient EGR flow DTC.

I also pulled the throttle body and stove pipe to check EGR passages. Found no restrictions whatsoever. The only thing I didn't check, and should have, was the stovepipe itself. Hairline cracks in corrugated steel tubing are often hard to see visually.

I just came back from a road test after it set the DTC again. At idle my boost gauge is sitting at -7. If my memory serves correctly, that needle should be buried at -10 under normal vacuum conditions. Scan tool shows the MAP indicating -8.5 to -10 at idle, while analog gauge on test port shows about 24 in. HG>

I'm kind of stumped. Mileage is around 139K, so I suppose I could have some slightly leaking intake valves, but the engine is running smooth.

Like I said, I've been down this path before with this car, and it'* usually always a leak in one of the small lines or fittings running from MAP, to tee under SC snout, to FPR, to BCS.

I haven't gone on to the brake booster and connecting hoses.

Wondering about having the PCM reflashed to current SW. It'* stock PCM. The whole car is stock as it'* the missus' daily commute car.

I swear, the SES light on this car has more bulb hours than any of the exterior lighting. Grrr...
xdhd350 is offline   Reply With Quote
Old 12-27-2011, 01:04 PM   #2
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2010
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
xdhd350 is on a distinguished road
Default

Anyone?

I'll take wild guesses if you've got'em.
xdhd350 is offline   Reply With Quote
Old 01-30-2012, 09:54 AM   #3
Junior Member

Join Date: Jan 2012
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
cliffp is on a distinguished road
Default

Bumping this as the boss' wife'* car (03 SSEi) is giving me the same grief. We've gone through 3 different CEL codes, and I've fixed most. I've removed the EGR and cleaned, as well as the stovepipes (the corrugated and the hard pipe from exhaust manifold). The only thing I can think of is either the MAP sensor, or vacuum lines. I noticed that most of the vacuum lines under the hood are plastic, and not standard rubber tubing.

Anyone got any suggestions? Do the MAP sensors fail that often? I haven't gone into in-depth troubleshooting as I don't have access to a diagnostic machine (Snap-On Solus Pro) until Thursday and Friday during the week.
cliffp is offline   Reply With Quote
Old 01-30-2012, 12:40 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2010
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
xdhd350 is on a distinguished road
Default

Hopefully you'll get a better response than I got. I haven't gotten rid of my issue yet. I may try a MAP sensor just to eliminate that.
xdhd350 is offline   Reply With Quote
Old 01-30-2012, 01:30 PM   #5
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Normal vacuum at idle for a V6 is 12 to 16 inches Hg.
2kg4u is offline   Reply With Quote
Old 01-30-2012, 01:45 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2010
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
xdhd350 is on a distinguished road
Default

Quote:
Originally Posted by cliffp
I noticed that most of the vacuum lines under the hood are plastic, and not standard rubber.
Those lines are very prone to brittleness and cracking. Also check the rubber fittings that those lines go into. Bet you'll find some cracked ones if you move them a bit, especially if they are the original lines.
xdhd350 is offline   Reply With Quote
Old 01-30-2012, 01:55 PM   #7
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

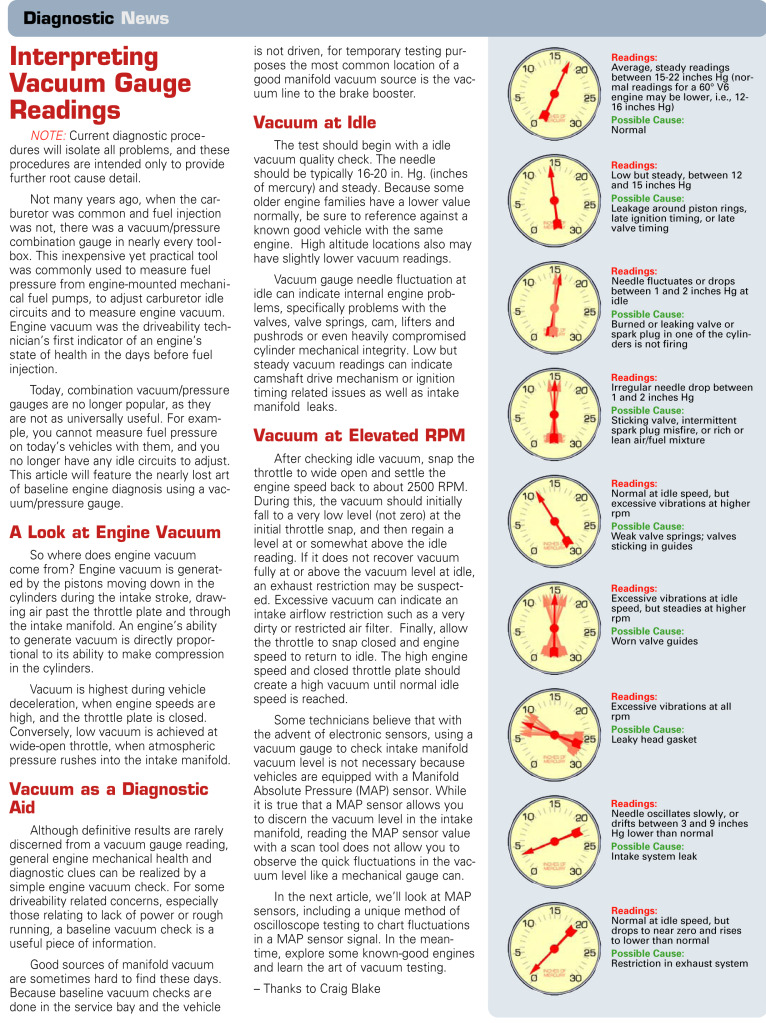

Here is one of the best write ups on diagnosing vacuum issues I have seen:



Attached Thumbnails
01 SSEi I need vacuum numbers-vacuumdiagnostics.jpg
2kg4u is offline   Reply With Quote
Old 01-30-2012, 05:08 PM   #8
Junior Member

Join Date: Jan 2012
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
cliffp is on a distinguished road
Default

I noticed that the boost/vac gauge on the instrument cluster shows around 10inHg +/1 1inHg at idle, and the idle isn't rough or hunting. Thus, I didn't think to trust the gauge. I'll run a vac gauge inline at idle though and see what pops up. I've got tons of excess vacuum line laying around the garage so that'* a free diagnosis.

That'* a pretty cool handout, though. Thanks!

XDHD - I had figured that these lines are likely the culprit, but ran out of time before I could literally start yanking them one by one. I'm a huge fan of pressure testing the entire system (turbo guy) to determine where there are boost leaks which by nature also become vacuum leaks behind the throttle plate. I had thought about pressurizing the system to around 5~7psi to see if I hear anything hiss in the engine bay. If it'* something I hear, it'* definitely something allowing unmetered air into the cycle which obviously means that the MAP doesn't see the drop it'* expecting, and triggers the EGR CEL.

Clear as mud, I *'pose. Thanks. Will report back my findings after the evap canister comes in and I have a day to install it and remove/replace all the cheap plastic line with silicone line.
