Default Where do these go?

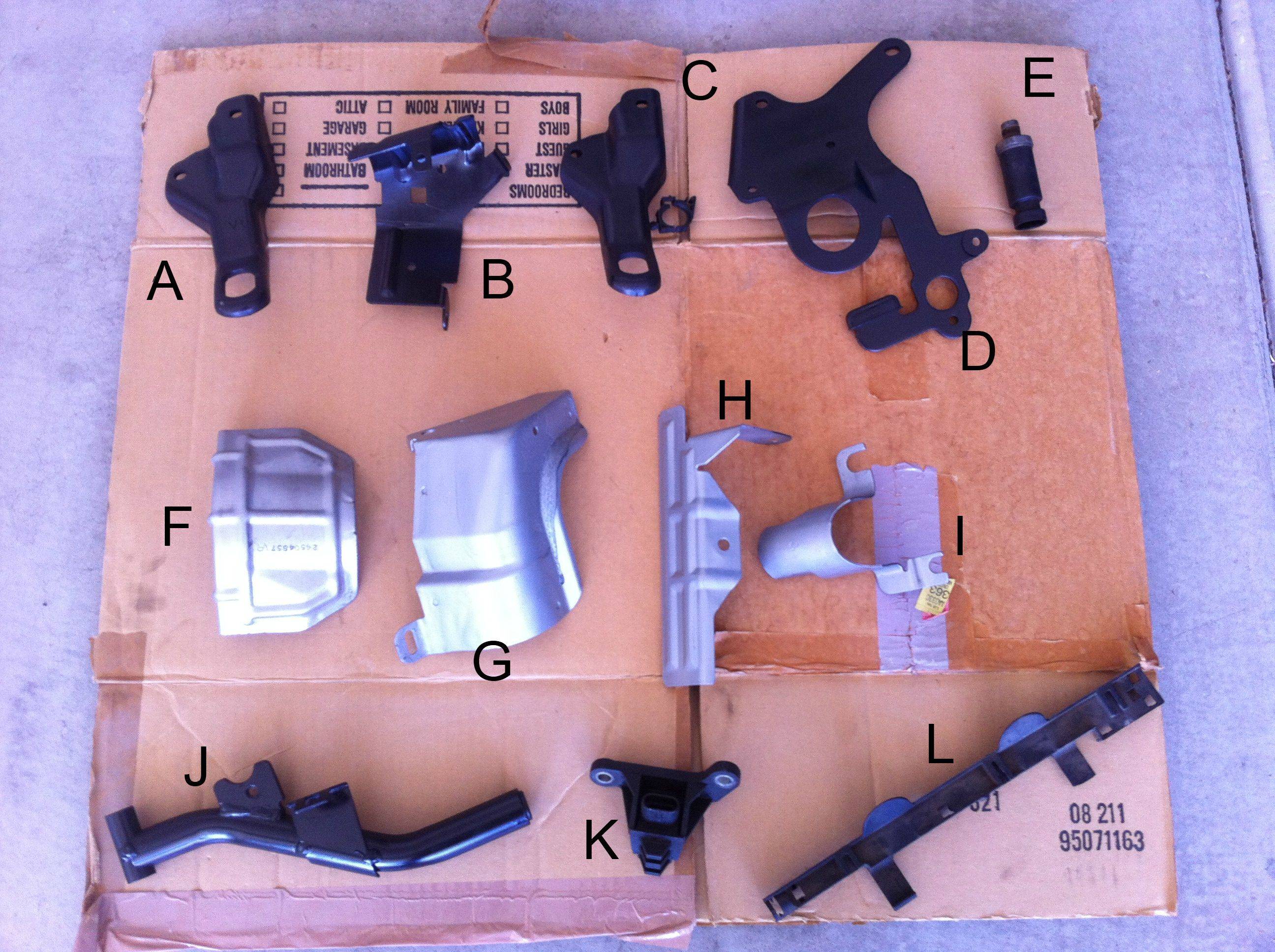

So I have follow the FSM as best as I could to put everything back together and I have some loose ends that I am not quite sure about yet:



I figured out through perusing the FSM that A, C, and D are engine mount and fuel sight shield brackets. I am also thinking that J has something to do with mounting the alternator just from doing a quick google image search. My first question is do those brackets have to be mounted on after the exhaust manifolds are installed?

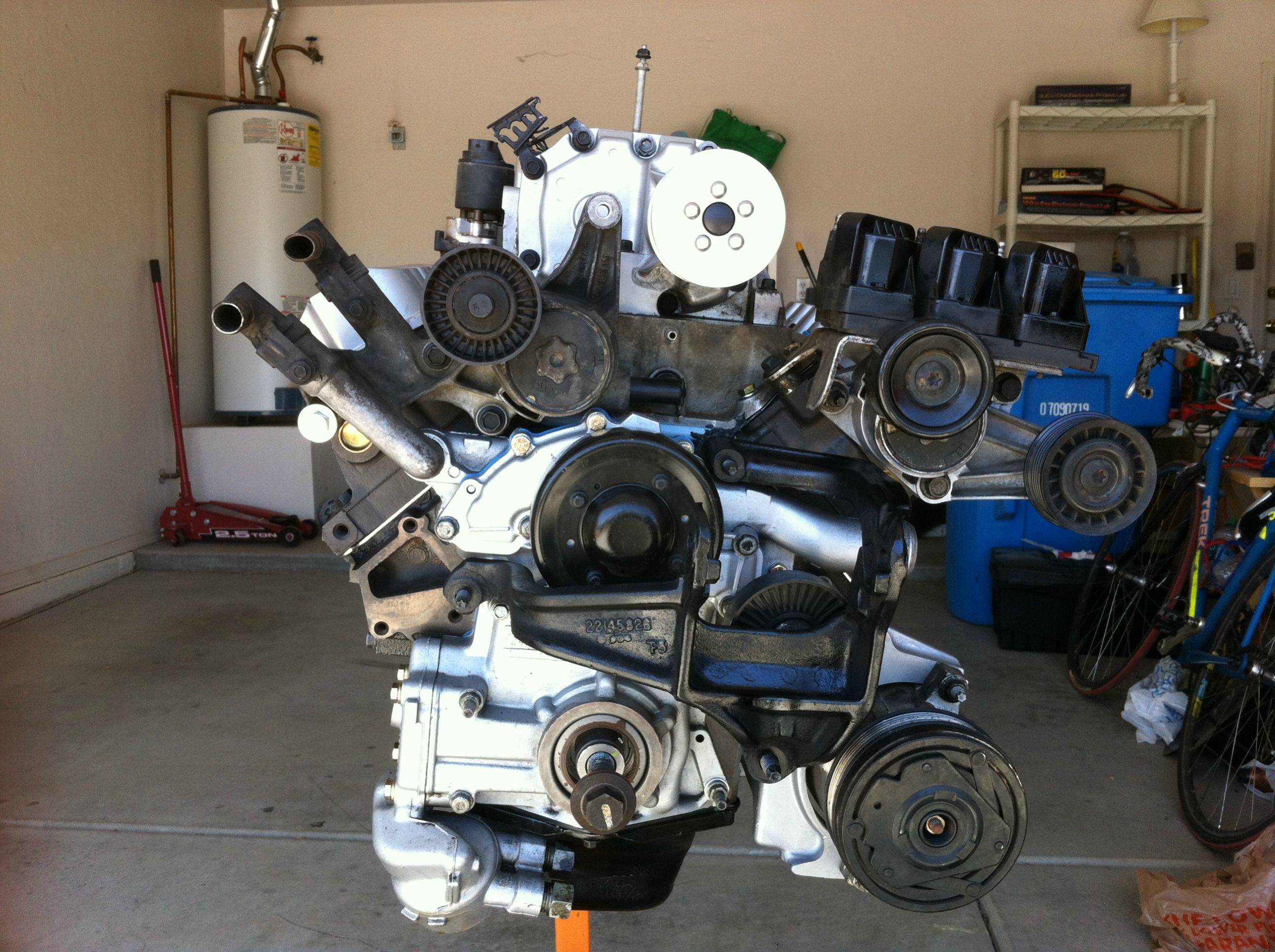

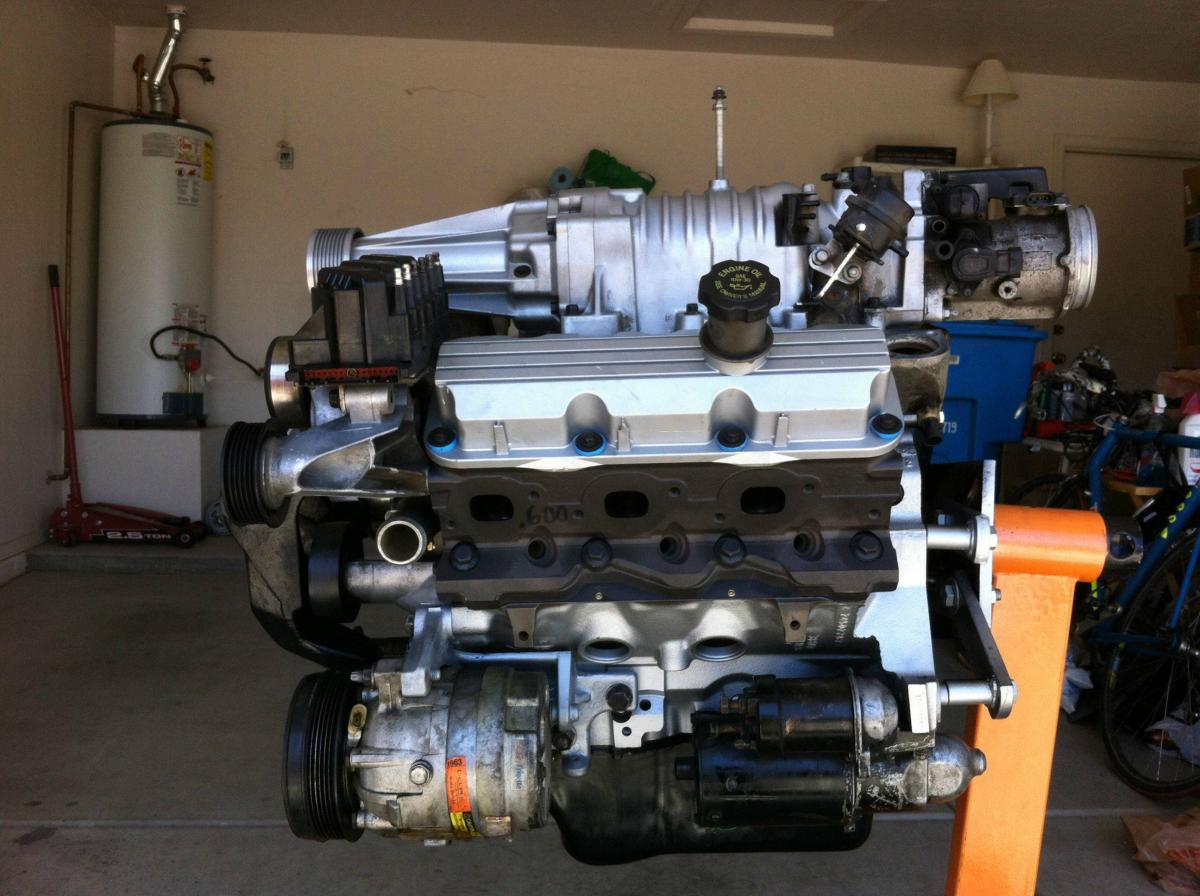

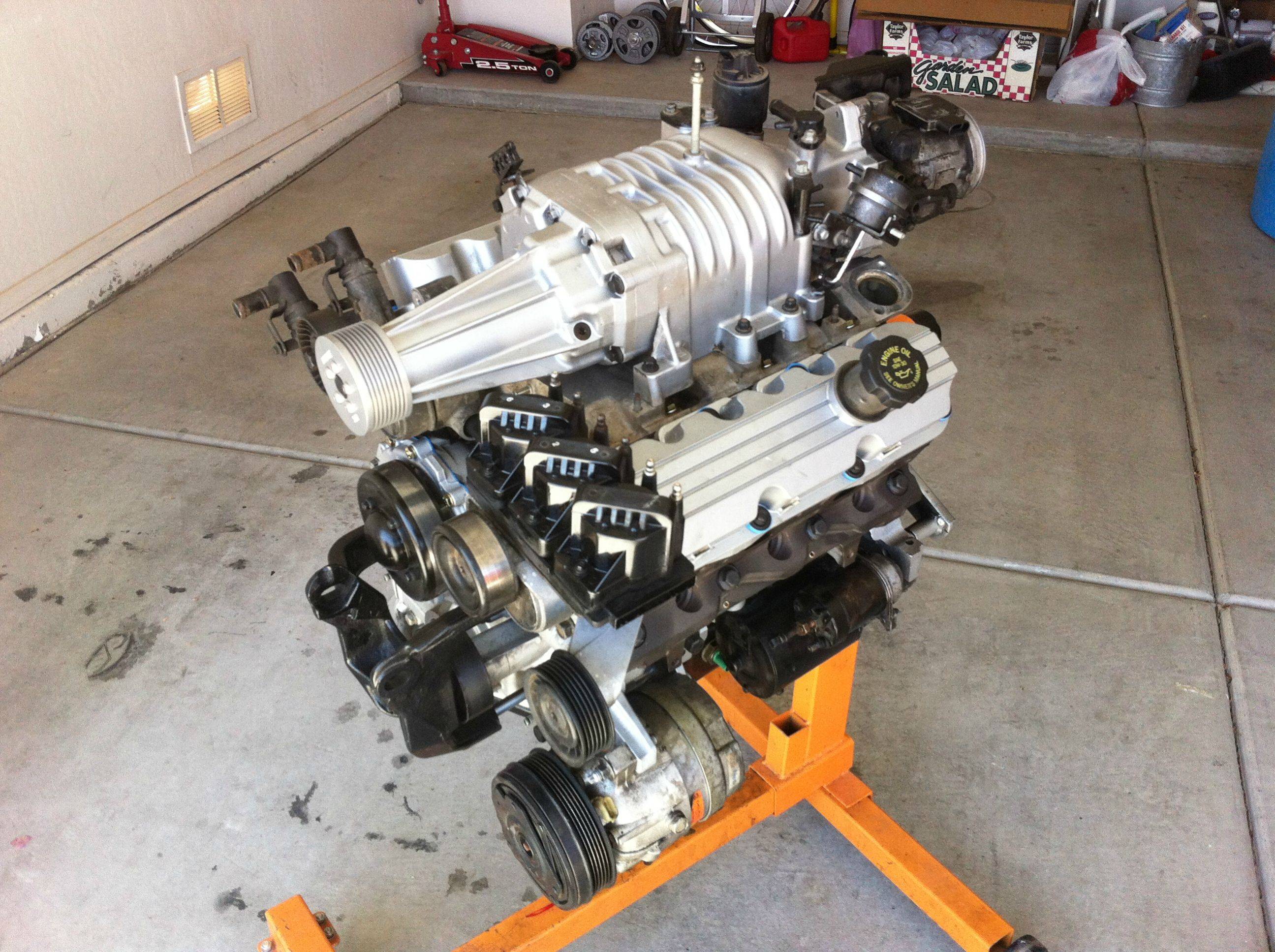

Here is what my motor looks like so far:



Attached Thumbnails
Where do these go?-rf1nk.jpg
eazhar is offline   Reply With Quote
Old 05-12-2012, 10:07 PM   #2
Member
Posts like a V-Tak

kanecats's Avatar

Join Date: Apr 2012
Location: NJ
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
kanecats is on a distinguished road
Default

"L" goes on the front valve cover to hold the spark plug wires. You will see the guides on the plastic piece line up with the guides on the valve cover....
kanecats is offline   Reply With Quote
Old 05-12-2012, 10:12 PM   #3
Member
Posts like a V-Tak

kanecats's Avatar

Join Date: Apr 2012
Location: NJ
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
kanecats is on a distinguished road
Default

"A" goes on the right front of the engine under the valve covers...in your pic you will see the two bolts line up. "C" goes on the back side of the engine I believe in the center of the valve covers. Not sure of the others from the Intake job I just did, but I am sure others will help you out! The engine looks beautiful! Nice job!!
kanecats is offline   Reply With Quote
Old 05-12-2012, 10:21 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

It seems like in the google images picture I found, A C and D need to go on after the exhaust manifold.. is that right?
eazhar is offline   Reply With Quote
Old 05-12-2012, 10:26 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

Just put L on
eazhar is offline   Reply With Quote
Old 05-12-2012, 10:29 PM   #6
Member
Posts like a V-Tak

kanecats's Avatar

Join Date: Apr 2012
Location: NJ
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
kanecats is on a distinguished road
Default

Yes considering my manifolds were already obviously on the car. I can check the other stuff tomorrow!
kanecats is offline   Reply With Quote
Old 05-13-2012, 02:12 AM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2009
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
L67SE is on a distinguished road
Default

I is the knock sensor cover-side of the block. A, C, D, F, G, H all after the exhaust manifolds. J is rear alternator bracket-mounts to side of */C. E, oil pressure switch-mounts to oil filter adapter. K is crank sensor-goes behind balancer, mounted to timing cover.
L67SE is offline   Reply With Quote
Old 05-21-2012, 03:00 AM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

So I managed to get most of everything on, but I still have some doubts about some of the other parts.

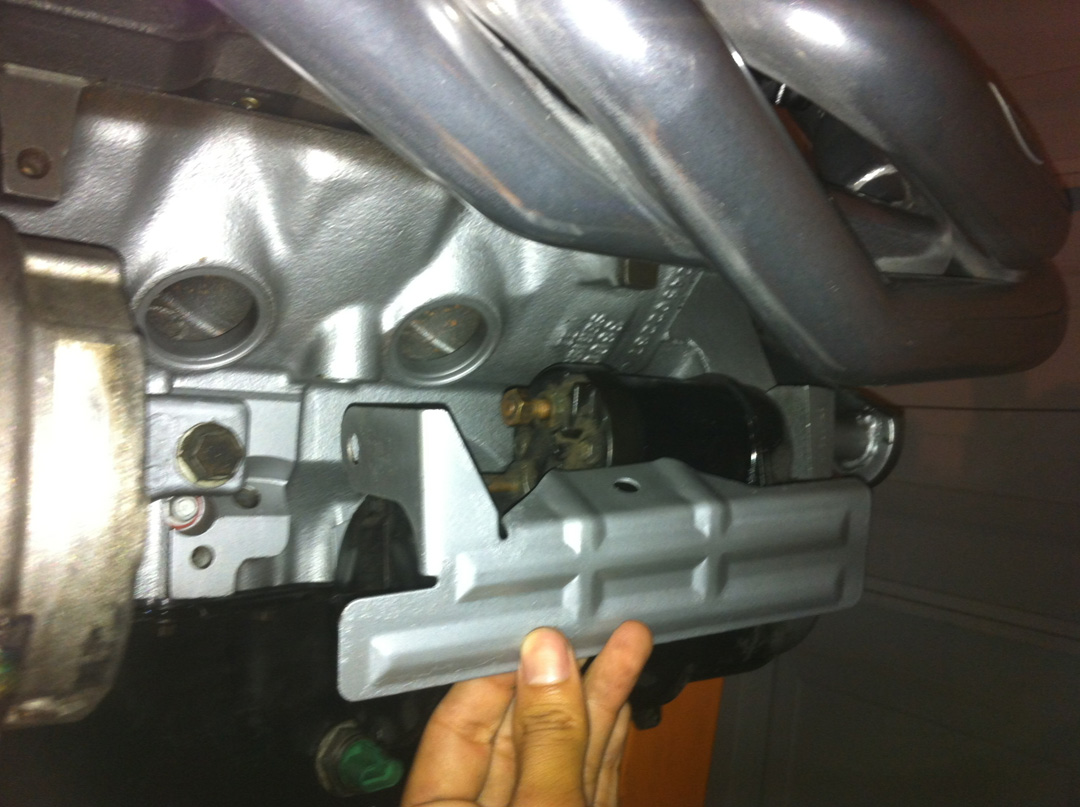

1) So I read that H is supposed to go over the starter, but I'm not quite sure how. (I have been known to be very retarded at times so I might just not be seeing it)

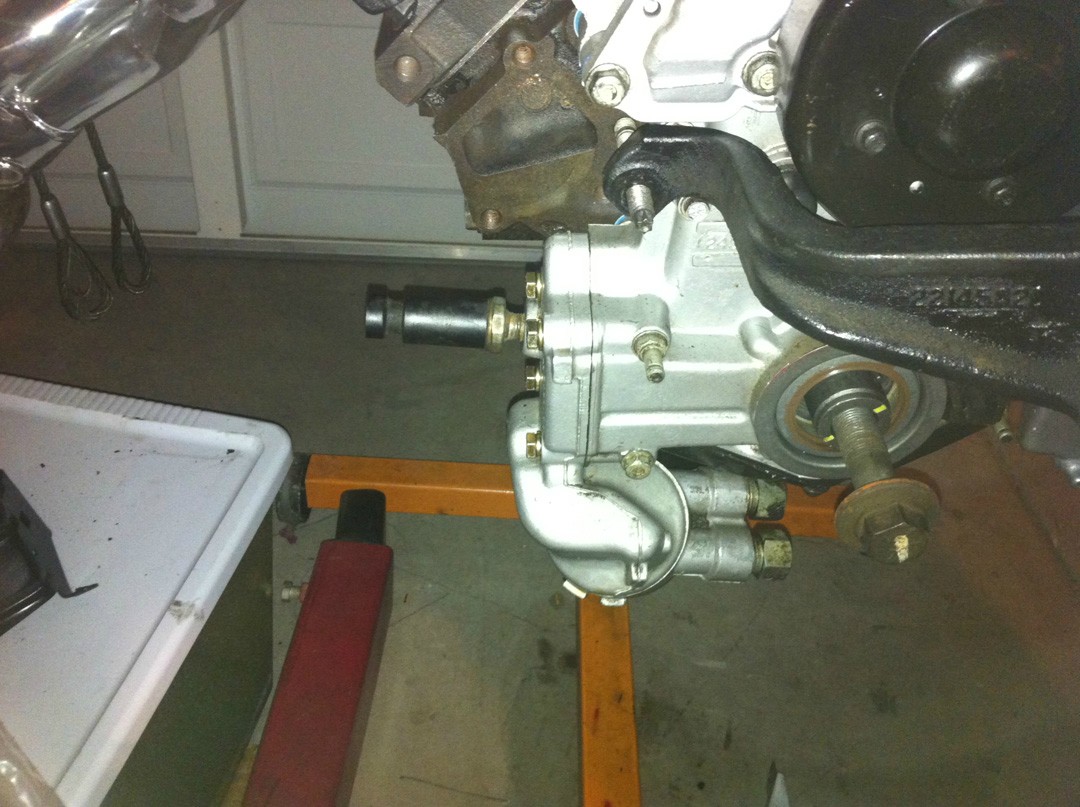

2) Secondly I was wondering about E. I managed to hand turn it in about halway, but started feeling some resistance. I just want to make sure that I put it in the right place and there isnt some random washer that goes in between

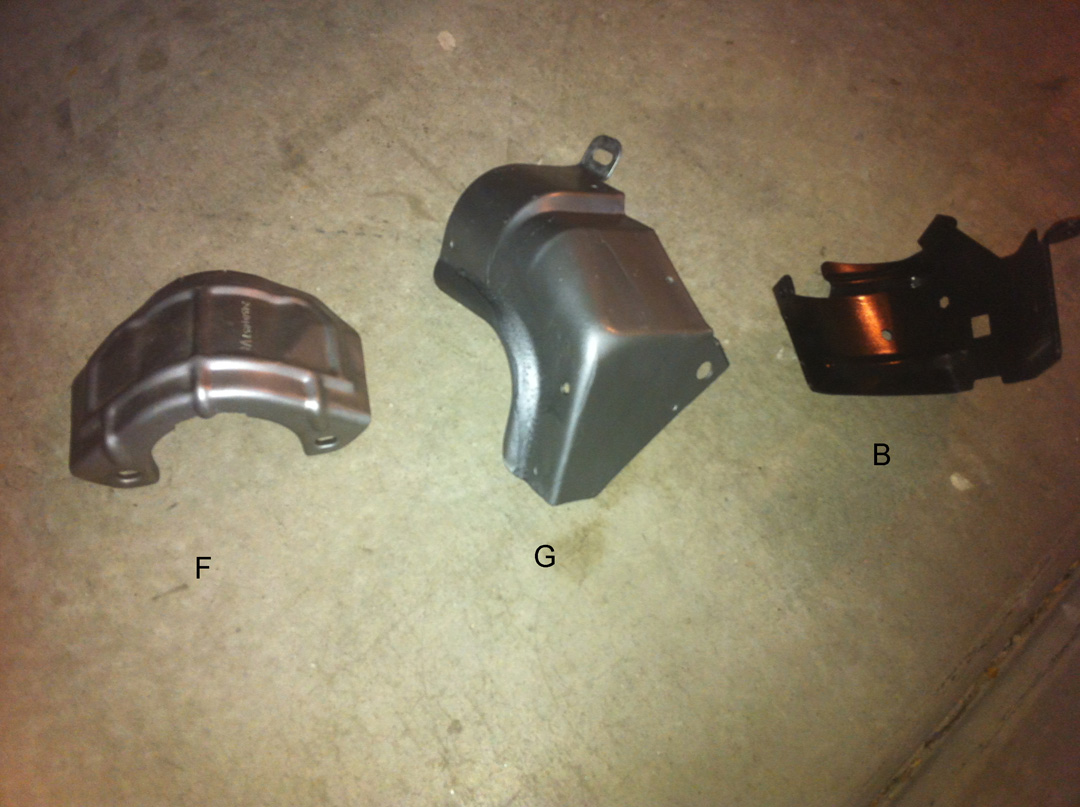

3) Last, I'm just left with these three pieces.. should I not bother with them until later?
Attached Thumbnails
Where do these go?-mhm1p.jpg   Where do these go?-1ttpf.jpg   Where do these go?-7y2ek.jpg
eazhar is offline   Reply With Quote
Old 05-21-2012, 06:01 AM   #9
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,645
Thanked 998 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

E. No washer needed. It threads in just a few and tightens up quick. Leave that until AFTER the engine is installed and the powersteering pump is put back on. Someone here recently just broke the oil pressure switch by bumping the pump into it. Its very sensitive. Actually, I recommend you just go out and buy a new one right now.

H. I believe does go over the starter, but does not bolt directly on top of the starter. Its a hear shield for the stock exhaust manifold. Looks like it won't fit in your setup.

F. Is the crossover pipe heatshield. Can be installed after engine is in.

B. EGR heat shield. Install after.

G. Front exhaust manifold heat shield. Again, with your custom exhaust, more than likely will not fit.
