Default Whats this hose for?

I was poking around under the hood and was making sure things were hooked up and connected tight. When I got to the Blower Motor on the firewall, I noticed this was unhooked. It goes into the blower motor then into what the blower motor is attached to. (Heater Core?)

There was a plastic like piece that was broken evenly inside of the hose which was very brittle. I just need to know what this is and if it plays an important role or not.


BLACK94SSEi is offline   Reply With Quote
Old 09-29-2006, 07:56 PM   #2
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

It cools the Blower motor'* motor.
Bonneville92V688 is offline   Reply With Quote
Old 09-29-2006, 08:25 PM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

Thanks for the info.

My next question is if the piece it goes to is broken, I will have to replace the whole thing right?


Someone please move this to 92-99? I realize now it should have been posted there to begin with since this is more than likely going to turn into a replacement.
BLACK94SSEi is offline   Reply With Quote
Old 09-30-2006, 01:25 PM   #4
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Quote:
Originally Posted by BLACK94SSEi
Thanks for the info.

My next question is if the piece it goes to is broken, I will have to replace the whole thing right?


Someone please move this to 92-99? I realize now it should have been posted there to begin with since this is more than likely going to turn into a replacement.
The Plastic is broken off right? If it is... You'll have a PITA... Wish I had pics of my rigging

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 09-30-2006, 02:16 PM   #5
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

As William said, that rubber tube supplies cooling air from the air intake chamber to the blower motor. If your car is like my '95, you have a hard rubber insulating cover over the blower motor - these are available from the dealer for about $10. I had to replace mine. The entire heater/AC box on the engine side of the car is also covered with this hard rubber stuff. When I had my engine out, I replaced my broken cover with a good one from a junkyard. As I recall, it wasn't all that easy to change even with the engine out! The motor cover is easy to change. If that is the end that is crumbling, just install a new cover and plug it back in. If the other end (on the chamber) has crumbled away, you might try to use something like silicone RTV to patch it back up enough to re-install the tube. I'll try to get you a pic.

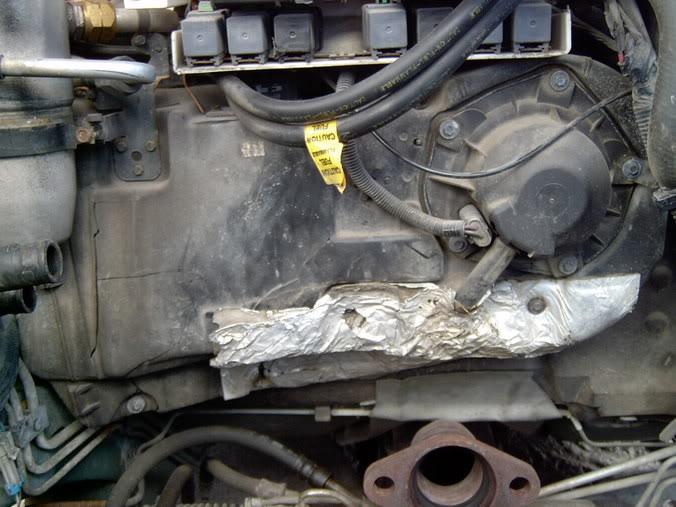

Name:  Blower.jpg
Views: 1
Size:  67.6 KB
bill buttermore is offline   Reply With Quote
Old 10-01-2006, 10:12 AM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

Well looks like I might have to replace that sometime. Mine broke off and theres no plastic to put it back on. WIll it hurt it any running it without it for now until the replacement is done? (probably like months away)?

Name:  Blower.jpg
Views: 3
Size:  67.6 KB
BLACK94SSEi is offline   Reply With Quote
Old 10-01-2006, 11:23 AM   #7
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by BLACK94SSEi
WIll it hurt it any running it without it for now until the replacement is done? (probably like months away)?
The motor will be sucking in air to try to cool itself from an area of the engine compartment that runs pretty hot. (See the exhaust pipe and heat shield?) So, yeah, it probably will not be good for your blower motor. The way it is set up, the air inside the box is pretty cold compared to the air in the engine compartment. If it has to go for a few months, at least it will be winter time. You could fashion a hose to draw air from a cooler point as a redneck fix until the damaged parts can be replaced. An old radiator hose and some wire may do the trick.
bill buttermore is offline   Reply With Quote
Old 10-01-2006, 02:27 PM   #8
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

Quote:
Originally Posted by bill buttermore
Quote:
Originally Posted by BLACK94SSEi
WIll it hurt it any running it without it for now until the replacement is done? (probably like months away)?
The motor will be sucking in air to try to cool itself from an area of the engine compartment that runs pretty hot. (See the exhaust pipe and heat shield?) So, yeah, it probably will not be good for your blower motor. The way it is set up, the air inside the box is pretty cold compared to the air in the engine compartment. If it has to go for a few months, at least it will be winter time. You could fashion a hose to draw air from a cooler point as a redneck fix until the damaged parts can be replaced. An old radiator hose and some wire may do the trick.
Thanks for the tip. Im going to try to jimmyrig something this coming week.
