Default What is there and where does it go? vacuum line?

Hey guys i have a CEL and its for the P0442 evap system leak i though maybe gas cap so i replaced it but the cel never went away. So today i take the engine cover off and find this

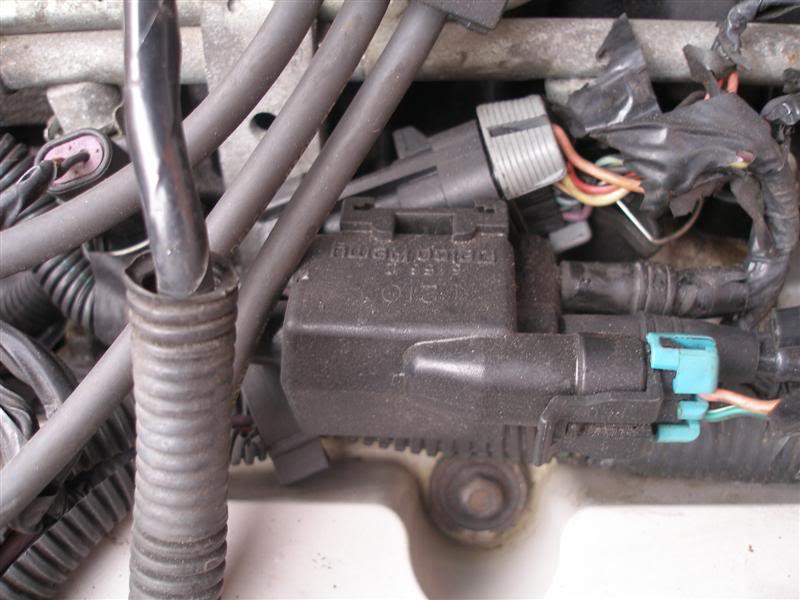

Name:  P4250774Medium.jpg
Views: 0
Size:  61.9 KB

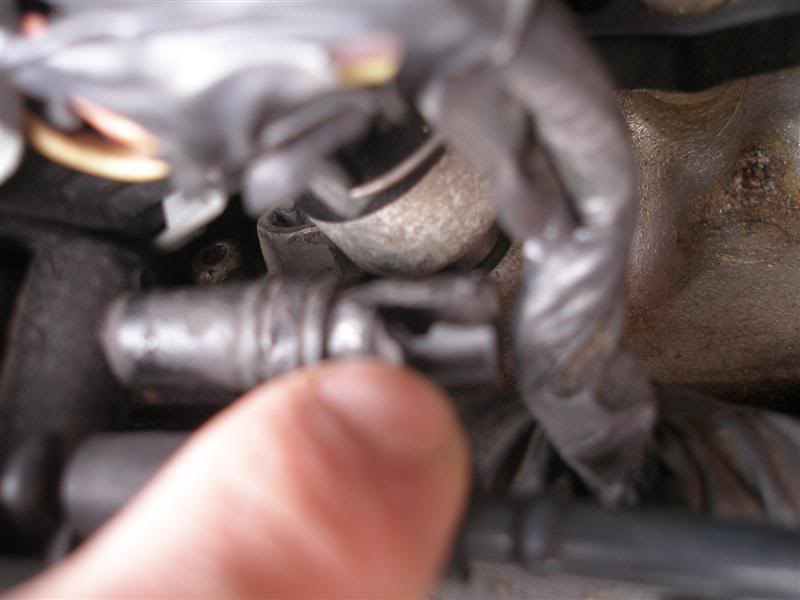

Name:  P4250773Medium.jpg
Views: 0
Size:  37.3 KB

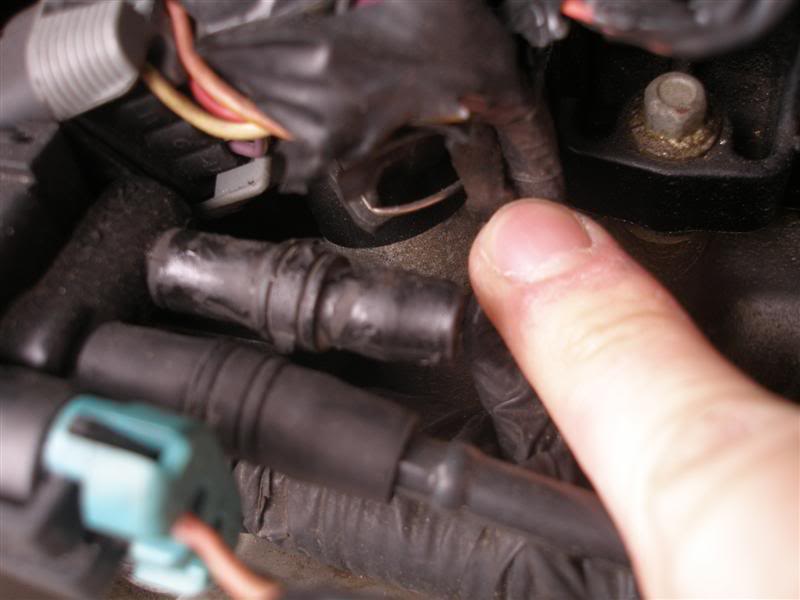

Name:  P4250772Medium.jpg
Views: 0
Size:  40.8 KB

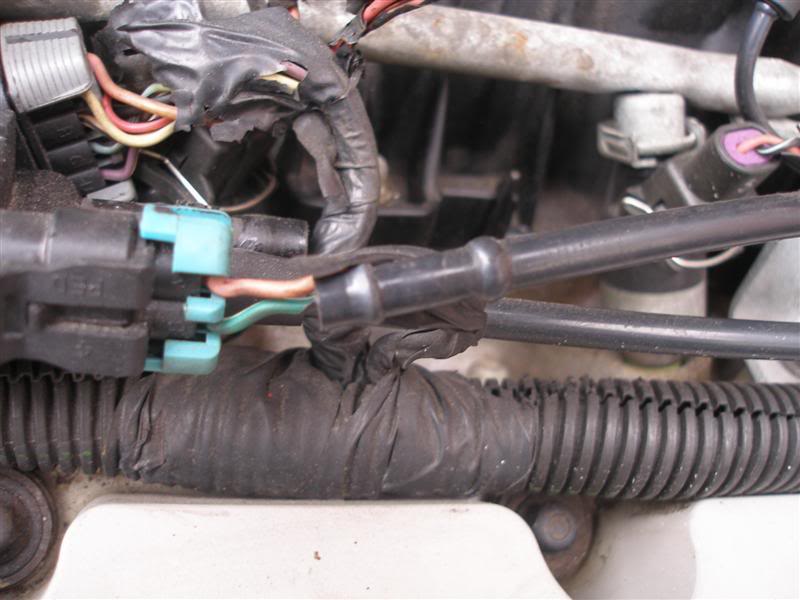

Name:  P4250770Medium.jpg
Views: 0
Size:  56.9 KB

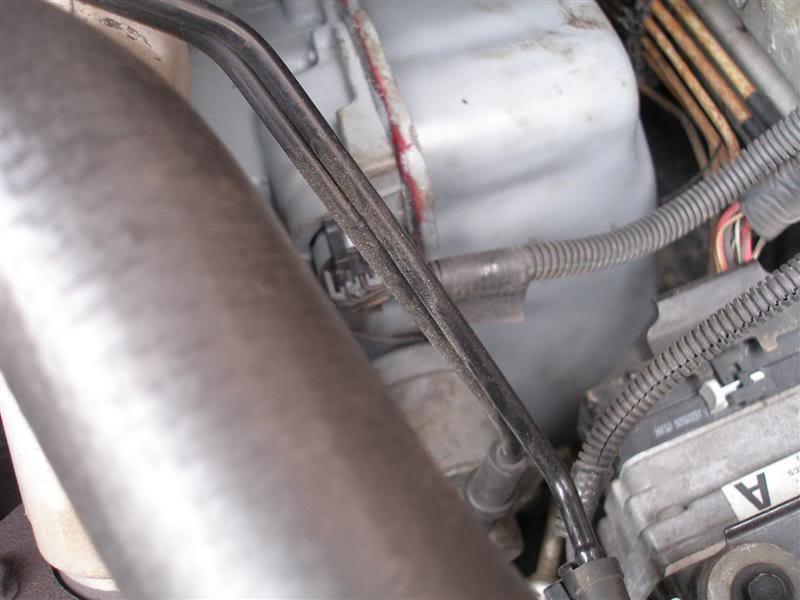

Name:  P4250771Medium.jpg
Views: 0
Size:  47.4 KB
what is this and is that the spot it goes?
rogers is offline   Reply With Quote
Old 04-25-2007, 03:05 PM   #2
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Fix it. That is your EVAP canister purge solenoid hose from the canister to the solenoid. It will trip a CEL.
Bonneville92V688 is offline   Reply With Quote
Old 04-25-2007, 03:43 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

And will also cause a vacuum leak, resulting in a lean condition and poor idle.
willwren is offline   Reply With Quote
Old 04-25-2007, 03:58 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

what part needs to be replaced? because it had tape over it it was unhooked but i just pulled off the tape and found that the boot was cracked how should i go about fixing this?
rogers is offline   Reply With Quote
Old 04-25-2007, 04:02 PM   #5
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

go to the auto parts store and get a piece of vacumn tubing and reconnect, so it looks like the one next to it.. maybe even replace the tubing on both of them
sonoma_zr2 is offline   Reply With Quote
Old 04-25-2007, 04:16 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Most of the cars have a vacuum diagram on the radiator support and while it'* not the clearest, it should assist you in determining where a line should go if one were missing.
BillBoost37 is offline   Reply With Quote
Old 04-25-2007, 04:31 PM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

lol i duck taped it for now but i will go to the store and get a new fitting and i did not know about the pic on the rad my cart has been oil sparyed to hell lol
rogers is offline   Reply With Quote
Old 04-26-2007, 12:33 AM   #8
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

WOO HOO no more CEL and my car idles better! Thanks guys
rogers is offline   Reply With Quote
Old 04-26-2007, 08:03 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Glad to hear, did you happen to change the other connecting hose on that same part?
BillBoost37 is offline   Reply With Quote
Old 04-26-2007, 09:24 AM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

no but it needs it its cracked aswell right now the tape is just temp till i can get some time to go out and get the fittings
rogers is offline   Reply With Quote
