Default UIM/LIM Update

Upper and lower removed. Oil slude in upper plenum. Stovepipe sheared and plugged with hard oil slude. Upper part of LIM pooled oil in corners left rear/right front-lowest part of lim.No evidence of coolant in lifter valley. Please post a pic of lim stovepipe bore, so I can compare it to my bore.
Buddy is offline   Reply With Quote
Old 05-28-2007, 12:09 AM   #2
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2007
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
Buddy is on a distinguished road
Default Pics

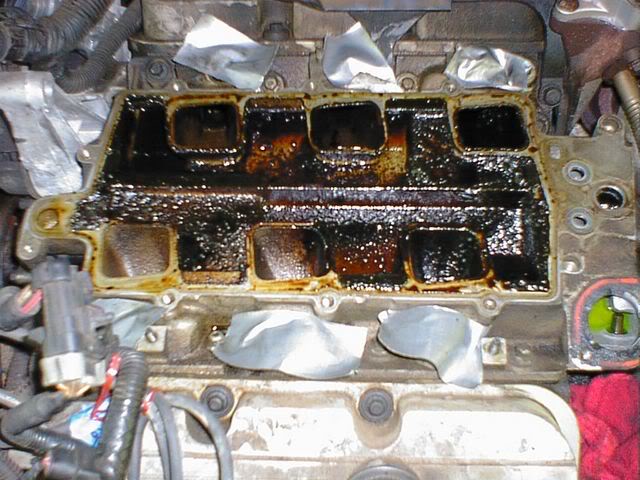

Name:  oilsludge.jpg
Views: 2

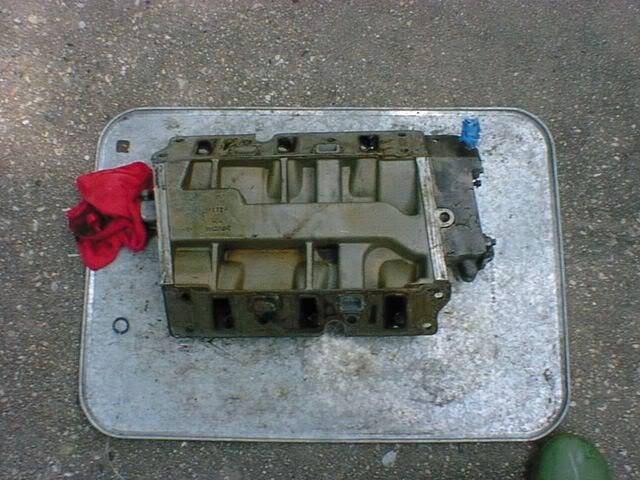

Size:  71.3 KBName:  limbackside.jpg
Views: 2

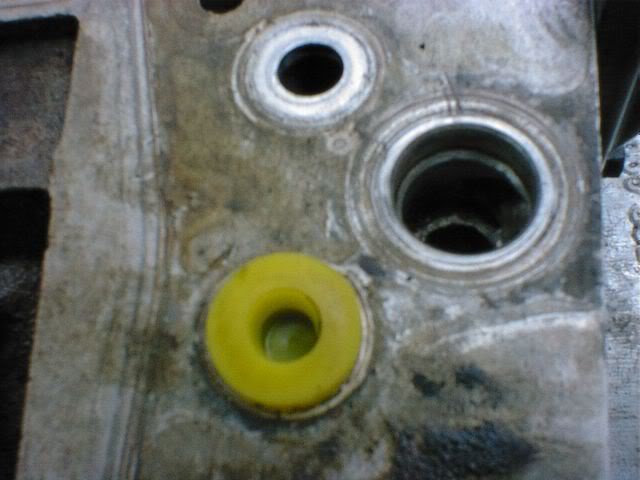

Size:  62.5 KBName:  stovepipebore.jpg
Views: 1

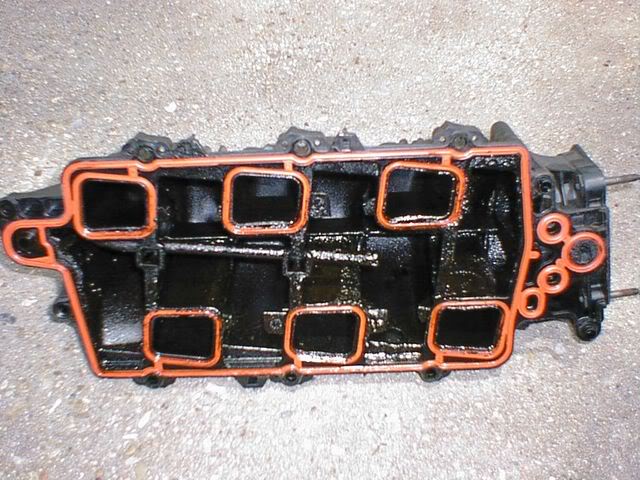

Size:  37.9 KBName:  upperplenum.jpg
Views: 1

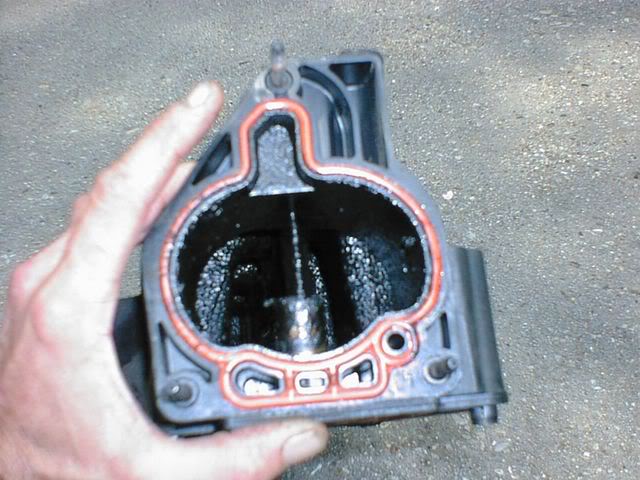

Size:  77.3 KBName:  TBIport.jpg
Views: 1

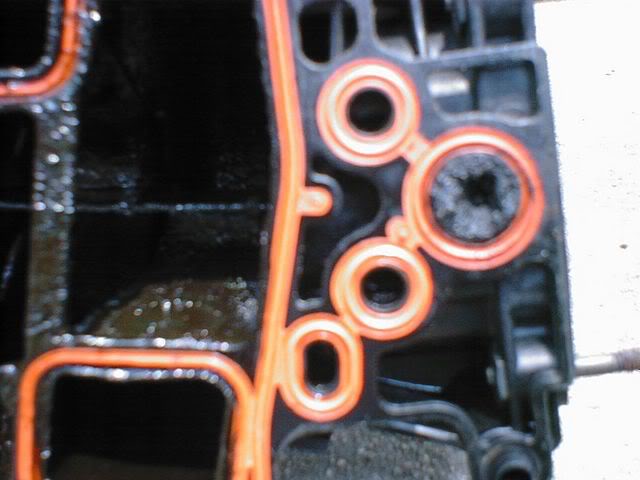

Size:  60.2 KBName:  upperstovepipeport.jpg
Views: 1

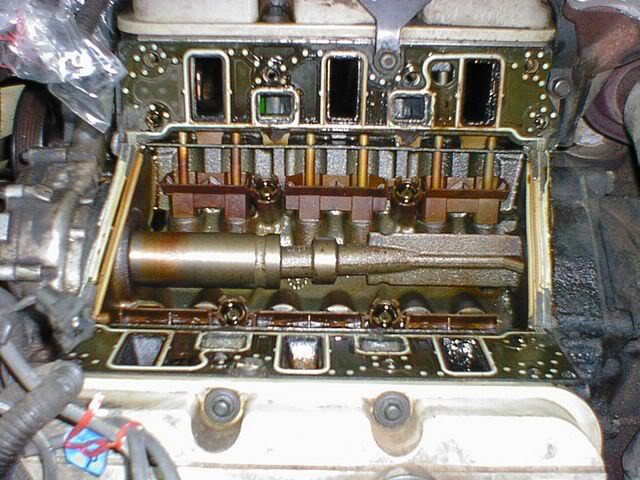

Size:  38.4 KBName:  liftervalley.jpg
Views: 1
Size:  73.8 KB
Buddy is offline   Reply With Quote
Old 05-28-2007, 09:26 AM   #3
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

I doubt your stovepipe sheared. For a stock '95, the OD of the stainless steel stovepipe is .749-.750" The walls are about .035" Can you measure the bore in the LIM? If it is .750", your stovepipe did not shear. From your pix, it appears that your stovepipe was loose, lifted up from engine vacuum and stuck in the UIM bore.

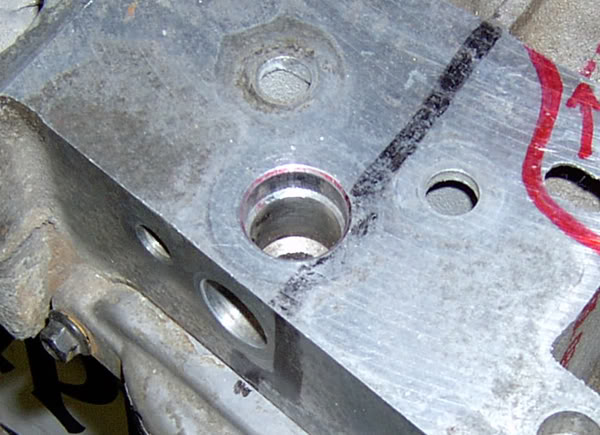

You need a new reduced diameter stovepipe. Buy an APN kit and you will be good to go. When you install the pipe, make sure it is tight in the bore. Looking for some pix for you..... Here is a .750" bore from a '95.

Have you read Techinfo Article 38? [

Name:  cleanboresp600.jpg
Views: 1
Size:  61.7 KB

Last edited by Toddster; 06-19-2009 at 01:33 AM. Reason: removed old link
bill buttermore is offline   Reply With Quote
Old 05-28-2007, 07:45 PM   #4
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2007
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
Buddy is on a distinguished road
Default

Bill you are indeed correct Measured inner bore after good cleaning
and it is .745 . Looked at new stovepipe from APN upper kit and did dryfit.
Fits perfect. Forgot stock GM stovepipes are one complete OD.
Thanks for your invaluable input and pic. .
