Default Starter Bolt

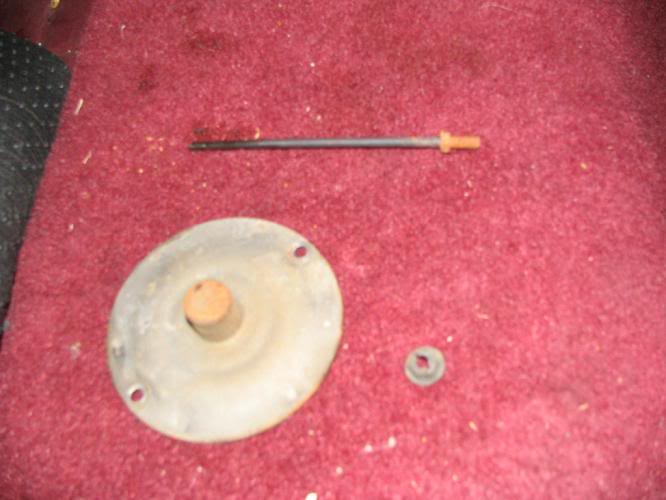

I have right here the bolt and end plate for a newer looking starter.

I had posted a while back about this car I grabbed for cheap to see what some opinions were, and I couldn't figure out what the bolt was for, but I searched around and found the starter just a little damaged.

I was wondering if any of you knew if the starter could be repaired? Or maybe if there was a diagram one of you had, or knew where I could grab one? I know some can be taken apart and put back together if you know how.


Name:  Bonneville1-24-06016.jpg
Views: 0
Size:  41.3 KB

Thanks a lot.
theotherguy is offline   Reply With Quote
Old 05-09-2006, 08:51 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Out of 6,000 members in 4 years, I'm not aware of any self-repairs on a Bonneville starter.

Can you put your year and trim level in your signature so we know what car you have? I don't really recall the topic you are referring to. We have about 800 new posts a day.
willwren is offline   Reply With Quote
Old 05-09-2006, 09:44 AM   #3
Senior Member
Certified GM nut

Join Date: Feb 2004
Location: CT
Posts: 2,099
Thanks: 0
Thanked 1 Time in 1 Post
SSEBONNE4EVA is on a distinguished road
Default starter

Just repaired mine on the SSE during the NEBF. You remove the two end cap bolts, and a third by the Bendix and slide off the housing. Clean it, re-grease the roller bearings, and install 4 new brushes on the armatuer. Spins like a rabbit now.
Never was a remove and replace mechanic. I like to take things apart and see how they tick. Also many of the rebuilts have been around the block for 500,000 or more miles or some old lady held the starter on getting it cherry red. They rebuild it and give it to you.
Just removed my alt on the SSE sat. I will rebuild it and change out the internal regulator and rectifyer bridge. Brushes don't usually go. You have to heat the three silver soldered stator connections to get the two halves apart.
SSEBONNE4EVA is offline   Reply With Quote
Old 05-09-2006, 09:53 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default Re: starter

Quote:
Originally Posted by SSEBONNE4EVA
Just removed my alt on the SSE sat. I will rebuild it and change out the internal regulator and rectifyer bridge. Brushes don't usually go. You have to heat the three silver soldered stator connections to get the two halves apart.
This procedure isn't for the faint of heart. It'* a real trick to get the housing torqued correctly to prevent shaft/bearing bind.
willwren is offline   Reply With Quote
Old 05-09-2006, 12:31 PM   #5
Senior Member
Certified GM nut

Join Date: Feb 2004
Location: CT
Posts: 2,099
Thanks: 0
Thanked 1 Time in 1 Post
SSEBONNE4EVA is on a distinguished road
Default Alt

On the alt you have to scribe a line before taking the two halves apart. Then on re- assembly line up your line then tighten the bolts equally going around in a circle a number of times while you increase torque a little at a time.
These are the starter brushes. I generally don't change the holders.
Get them off a guy on Ebay for $4. Thats $4 for a complete re-build.
SSEBONNE4EVA is offline   Reply With Quote
Old 05-09-2006, 12:44 PM   #6
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

You know, I've rebuilt drills, saws, compressors, sprayers, etc. at work for the ******** that break them, but I've never considered doing the same on my cars. Don't know why really...It'* just that I never did.

Like you said Bill, this type of repair isn't for the faint hearted, but if you take your time (and have some clue of what you are doing), it is possible.

That having been said, for anyone who hasn't done it before I wouldn't suggest trying it the first time on your daily driver you need tomorrow. Practice on an old one first and verify the results. Just my opinion.
lash is offline   Reply With Quote
Old 05-09-2006, 12:52 PM   #7
Senior Member
Certified GM nut

Join Date: Feb 2004
Location: CT
Posts: 2,099
Thanks: 0
Thanked 1 Time in 1 Post
SSEBONNE4EVA is on a distinguished road
Default rebuild

Yes its not for the faint of heart but after you do it for a while its too easy.
Have to have time to practice. The older large Chiltons manuals will show you how step by step.
Today you get a thin paperback with remove and replace procedures.
SSEBONNE4EVA is offline   Reply With Quote
Old 05-09-2006, 12:59 PM   #8
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Just a reflection of the changing times, my friend.
lash is offline   Reply With Quote
Old 05-09-2006, 02:53 PM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2005
Location: Manitowoc, WI
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
theotherguy is on a distinguished road
Default

Thanks guys, it'* just a 92' SE. Nothing special, just wanted to get it running.

I guess I'm just going to have to see what happens, but I appreciate it.

See ya.
