1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 10-12-2006, 04:17 PM   #1
Junior Member
Thread Starter

Join Date: Oct 2006
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
95bonnebc is on a distinguished road
Default Starter

Does anyone one know how to get the starter off my 95 bonneville SE 3.8L series two i pulled the solenoid of because i thought the bracket i was undoing was for the whole starter but it was just the solenoid i cant figure out how to get the rest of the starter off... anyone??
95bonnebc is offline   Reply With Quote
Old 10-12-2006, 04:26 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

craw up under the car and BAM the starter is Right there with a couple of 10mm bolts its in your hand...i believe that this applies for the series2..some one can confirm

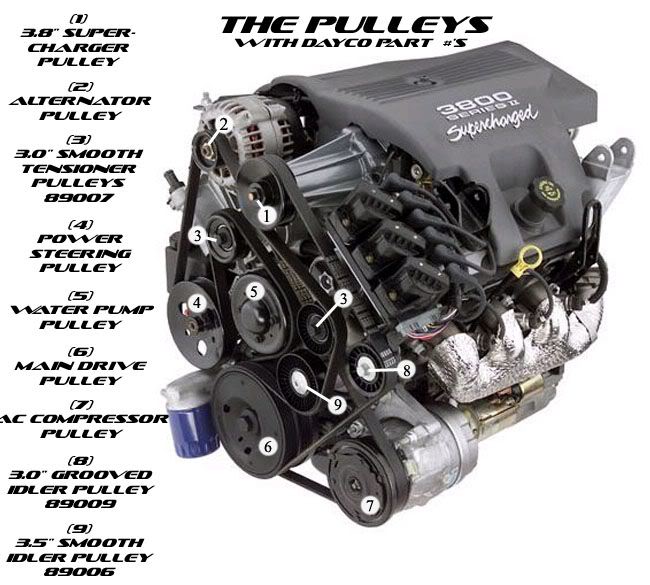

here is the pic

Name:  S2L67.jpg
Views: 1
Size:  74.1 KB

Note this is an L67 but the starter is in the sameplace right under the front manifold
1993 SLE is offline   Reply With Quote
Old 10-12-2006, 05:01 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2006
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
95bonnebc is on a distinguished road
Default

Thank You
95bonnebc is offline   Reply With Quote
Old 10-12-2006, 05:26 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by 95bonnebc
Thank You
anytime that is what we are here for
1993 SLE is offline   Reply With Quote
Old 10-12-2006, 09:02 PM   #5
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Copied this from an earlier post for you:

Jack up and safely support the front of the car.
Remove the big plastic splash shield that'* attached to the front crossmember under the front of the car. Most of the fasteners will be 10mm.
Remove the negative battery cable (5/16") and push it away so it can't touch the battery.
Remove the plastic cover (*) from the bottom of the bell housing and up around the starter (More 10mm bolts - wiggle and twist to get it out)
Unbolt the electrical connectors on the starter.
Remove the two vertical bolts that hold the starter up (15 mm?)
Drop the starter out (May have to twist and turn a bit.)
Make careful note of any shims that were used.
Clean the area where the starter contacts the engine/bellhousing (Starter ground connection is made there and it draws lots of current.)
Install the new starter with the same thickness of shims you removed.
Series II engines: Some cheap, rebuilt starters come with through-bolts that are too long - if yours extend more than 1/4" on the passenger end, you will need to cut the excess off the top bolt to clear the knock sensor.
Re-do the electrical connections.
Try the starter before lowering the car.
If the starter binds, or makes a loud noise, add shims until it sounds normal.
Re-install the splash shield(*)
bill buttermore is offline   Reply With Quote
