Splish splash I was ....
... wondering is my new ride had a water leak. A heavy downpour this afternoon made it abundantly clear that I did. As some of you know, almost the entire interior has been removed from the car to rid it a very musty smell. I poked my schnaaz in as I got home from work to find that the car smells pretty darn good now. But wait... WTF is that... puddles of water on the floor pans.

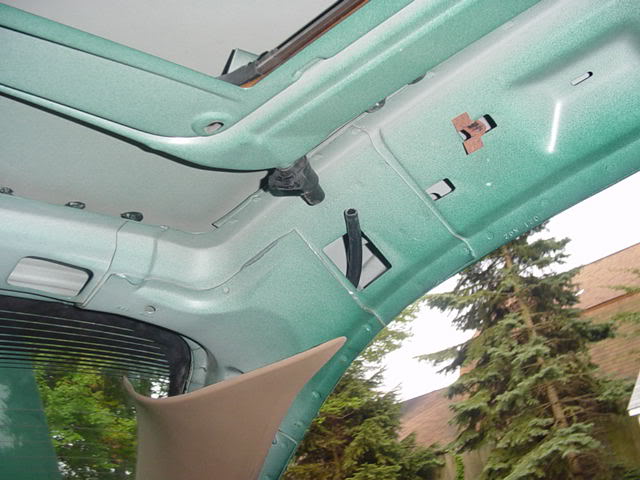

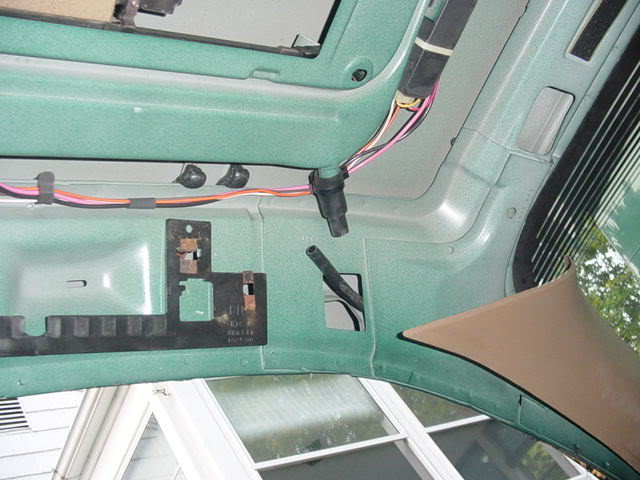

There wasn't too much doubt as to the source of the leak. The trunk was almost totally dry so I didn't think it was the rear window so the sunroof was my main suspect. This is what I found after dropping the headliner:
The drain lines weren't even connected. I wonder how long they have been like that. Well, the lines were checked for blockage as were the front two and reconnected. The front left drain was clogged but the air compressor took care of that.
What'* a little strange though is the front drains are corregated tubes. Thet look just like wire loom but without the split. These drain lines lock in very solid and do not come out. The rear drain lines are standard smooth rubber lines. If you look closely at the pics, the problem was that the lines came out of the ends that connect to the roof. I think before I reinstall the headliner I'm going to use an adhesive to prevent this from happening again.
There wasn't too much doubt as to the source of the leak. The trunk was almost totally dry so I didn't think it was the rear window so the sunroof was my main suspect. This is what I found after dropping the headliner:
The drain lines weren't even connected. I wonder how long they have been like that. Well, the lines were checked for blockage as were the front two and reconnected. The front left drain was clogged but the air compressor took care of that.
What'* a little strange though is the front drains are corregated tubes. Thet look just like wire loom but without the split. These drain lines lock in very solid and do not come out. The rear drain lines are standard smooth rubber lines. If you look closely at the pics, the problem was that the lines came out of the ends that connect to the roof. I think before I reinstall the headliner I'm going to use an adhesive to prevent this from happening again.
#2
Junior Member
Posts like a Ricer Type-R
Do yourself a favor, and make sure the tubes are clear of debris, too. Run a stiff piece of copper ground wire (home UFB or UMB wire) or some baling wire through them. That can cause water to back up and drool even if you connect the pillar drains correctly.
Glad you found those while you had it apart. Beats digging into it again in the fall.
#3
Senior Member
True Car Nut
Thread Starter
One other note to this roof problem: The gasket that surrounds the glass on the roof has a gap of 1/4" to 3/8" where the two ends come together. This seems to be a bit large to me. Is this gasket replaceable?
I'll edit with a pic when I get home tonight.
I'll edit with a pic when I get home tonight.
#4
Senior Member
True Car Nut
Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Likes: 0
Received 0 Likes
on
0 Posts
That gap in the gasket will be problems down the line, if you cant replace it you could build it up with rtv silicone.
Good find on the roof drains, almost looks like they were taken apart for some reason?
Good find on the roof drains, almost looks like they were taken apart for some reason?
#6
Senior Member
True Car Nut
Thread Starter
Thanks for the heads up, Bill. Exactly what I needed:
I asked the seller is the roof leaked cause it smelled so wet. He sain that he had the drains blown out. After seeing the lines disconnected, my theory was that the lines were blown out then.
The part number is 12371670
Originally Posted by PontiacDad
almost looks like they were taken apart for some reason?
#7
Junior Member
Posts like a Ricer Type-R
What someone may have done is try to blow debris out of the holes with compressed air.
The sunroof gasket is a snap, but takes a little while. I masked and re-painted the trim around the glass while I had it apart, before installing the new gasket. You need a button pusher to help you align it afterwards.
The sunroof gasket is a snap, but takes a little while. I masked and re-painted the trim around the glass while I had it apart, before installing the new gasket. You need a button pusher to help you align it afterwards.
#9
Senior Member
True Car Nut
Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by randman1
Originally Posted by willwren
You need a button pusher to help you align it afterwards.
