Default SES Light Blues

Well first I want to say thanks to Bill and Dan for there previous posts on my issue. They have been very helpful in trying to track down my problem. As of now my car is still reading the P0171 System to lean bank one code. Steps taken so far.

1. Checked Negitive battery cable for corison.
2. Cleaned MAF sensor.
3. Looked for vaccum leaks and replaced all lines that were brittle and worn.
4. Replaced EGR to LIM tube that was cracked.

Now I thought I had the problem solved, but the light came back on tonight when I came home from work. I drove the car last night after installing the new EGR tube and for about 20 miles today no light. Once the car sat and got cold, real cold, the light came on before I got out of works parking lot. So any thoughts? Still don't have PSI gague for fuel rail, but the pump, sending unit, filter, pressure regulator, were replaced just about a year ago.
sam8772 is offline   Reply With Quote
Old 12-29-2010, 12:06 AM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

One area that can cause this code and is a real pain to locate is the EVAP system. Locate that vacuum line and cap it off at the throttle body. See if that corrects the code. If so, then the problem is in that vacuum line.
Danthurs is offline   Reply With Quote
Old 12-30-2010, 12:02 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Mar 2009
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
sam8772 is on a distinguished road
Default

Okay so I capped off the EVAP system at the throttle body and so far so good. The weather is warmer now so I am going to wait a few days to see if it comes back on. I will not have access to Mitchells On Demand till i return to school mid month. Does anyone have a diagram of the evap system? I need to reference what needs to be checked/replaced. Has anyone ever replaced/repaired there evap system vaccum lines?
sam8772 is offline   Reply With Quote
Old 12-30-2010, 01:33 AM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I replaced all my vacuum lines. As for the EVAP, I suggest just replace them one at a time. Get a roll of generic hose and cut to length what you need.
Danthurs is offline   Reply With Quote
Old 12-30-2010, 11:26 AM   #5
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

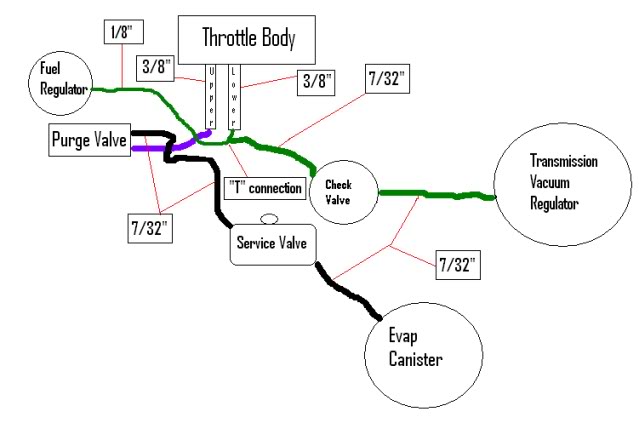

This may help
Name:  97NAvacuumroutingreworkagain.jpg
Views: 0
Size:  32.5 KB
Nighthwk12 is offline   Reply With Quote
Old 01-01-2011, 04:38 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Mar 2009
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
sam8772 is on a distinguished road
Default

So its been a few days now and still no light with the EVAP vaccum lines capped off. Nighthwk thanks for the diagram it was very helpful. Question though, should there be a line that runs from the fuel tank to the charcoal canister. I kinda have a feeling it must be somewhere further on back.
sam8772 is offline   Reply With Quote
Old 01-01-2011, 05:07 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yes, there will also be a line from the canister to the tank. If you plug in the line, then cap it off further back to test that area.
Danthurs is offline   Reply With Quote
Old 01-01-2011, 07:57 PM   #8
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

IIRC that is plastic line to a metal line. I would check all your metal line under your car for rot and corrosion.
Nighthwk12 is offline   Reply With Quote
Old 01-02-2011, 11:14 PM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Mar 2009
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
sam8772 is on a distinguished road
Default

If needed is it okay to replace the metal line with rubber line?
sam8772 is offline   Reply With Quote
Old 01-02-2011, 11:17 PM   #10
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The metal line will hold up better, but other then that, there'* no reason why you can't use rubber line.
Danthurs is offline   Reply With Quote
