Default S1 with a leaking upper intake??

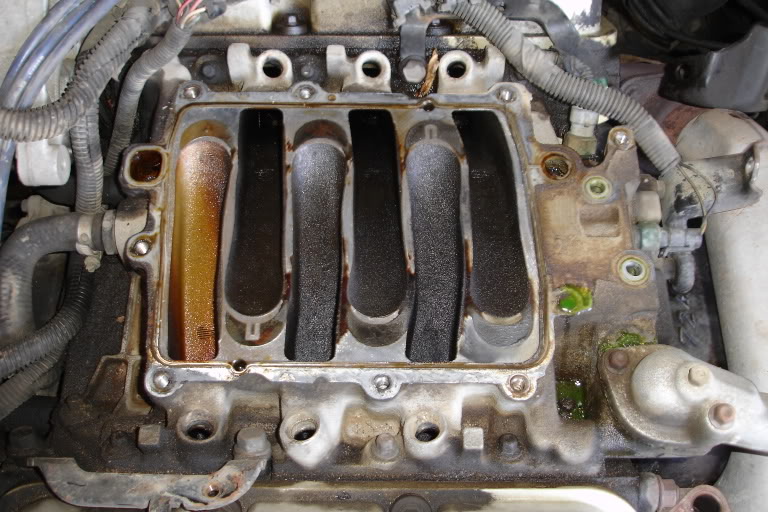

This stumped me when I was doing my lower intake gaskets. Check out intake runner #1:

Name:  DSC00575.jpg
Views: 19
Size:  103.3 KB

To me, that looks like runner #1 has been sucking down coolant. But that doesn't make any sense to me, seeing as i've never seen nor heard of a S1 upper plenum leaking coolant. So the question I pose to you is: what the heck is with the color and lack of carbon in runner #1??

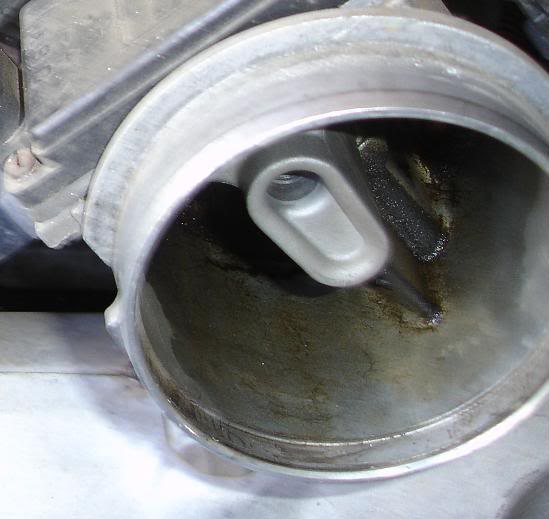

One thing to throw into the mix, the throttle body looked like it had been swallowing a lot of oil, which i can only assume came from possible over-oiling of my K&N.

Name:  throttlebody.jpg
Views: 16
Size:  32.5 KB

So if I had been ingesting large quantities of K&N filter oil, and for some reason it was going into onlycylinder #1 runner, shouldn't that cause excessive carbon versus no carbon?? Hence the reason I do not believe that over-oiling can be attributed to this lower intake. So why the strange intake runner???
CSFiend is offline   Reply With Quote
Old 05-04-2006, 02:23 AM   #2
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Is that a coolant port right next to the left runner? Maybe that leaked into it?
95naSTA is offline   Reply With Quote
Old 05-04-2006, 02:25 AM   #3
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2004
Location: Minneapolis, MN
Posts: 566
Thanks: 0
Thanked 0 Times in 0 Posts
CSFiend is on a distinguished road
Default

Nope, that'* the PCV port.
CSFiend is offline   Reply With Quote
Old 05-04-2006, 02:36 AM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

My l27 currntly has what I belive is strictly an external leak but may be leaking interally, however not enough to matter at this point.
Hans is offline   Reply With Quote
Old 05-04-2006, 02:40 AM   #5
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2004
Location: Minneapolis, MN
Posts: 566
Thanks: 0
Thanked 0 Times in 0 Posts
CSFiend is on a distinguished road
Default

I've never had the */C off of an l27 to know how those two upper intakes differ (other than the obvious, like the swirling fins and the whoosh noise). I'll need someone else to chime in on how possible this is. I don't see it as possible, because the only place coolant flows in the S1 upper intake is around the throttle body, through the two ports you see on the right side of my lower intake.
CSFiend is offline   Reply With Quote
Old 05-04-2006, 02:40 AM   #6
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

I can't really see how it would be missing all the other ports unless the LIM gasket went. A waterjacket may be leaking to the port then.
And too much of that K&N oil will kill the maf sensor.
95naSTA is offline   Reply With Quote
Old 05-04-2006, 02:48 AM   #7
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2004
Location: Minneapolis, MN
Posts: 566
Thanks: 0
Thanked 0 Times in 0 Posts
CSFiend is on a distinguished road
Default

And the LIM gasket, even at 256K, looked great. No tears, leaks, soft spots...nothing.

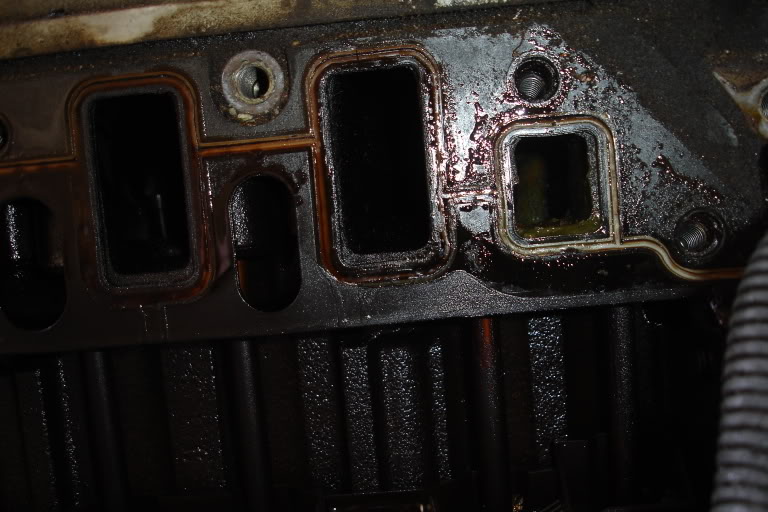

Here'* the LIM at port #1. For whatever good it might do to somebody.

Name:  DSC00587.jpg
Views: 20
Size:  81.7 KB
CSFiend is offline   Reply With Quote
Old 05-04-2006, 08:57 AM   #8
Senior Member
Posts like a Camaro

Join Date: Sep 2003
Location: Bad Axe,MI.
Posts: 1,025
Thanks: 0
Thanked 0 Times in 0 Posts
daman is on a distinguished road
Default

Quote:
Originally Posted by CSFiend
And the LIM gasket, even at 256K, looked great. No tears, leaks, soft spots...nothing.

Here'* the LIM at port #1. For whatever good it might do to somebody.

Wow that baby looks like she missed a oil change or two...

Is that a L motor??????????????

Whats the UIM look like on that cyl.??????????????????
daman is offline   Reply With Quote
Old 05-04-2006, 09:04 AM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by CSFiend
I've never had the */C off of an l27 to know how those two upper intakes differ (other than the obvious, like the swirling fins and the whoosh noise). I'll need someone else to chime in on how possible this is. I don't see it as possible, because the only place coolant flows in the S1 upper intake is around the throttle body, through the two ports you see on the right side of my lower intake.
He said L TWENTY seven. Not SIXTY seven. Hans has a non-supercharged car also.

Your pics sure look like coolant injestion to me.
willwren is offline   Reply With Quote
Old 05-04-2006, 02:02 PM   #10
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2004
Location: Minneapolis, MN
Posts: 566
Thanks: 0
Thanked 0 Times in 0 Posts
CSFiend is on a distinguished road
Default

But from where??

And all this L67 and L27 crap has always confused me anyways. I can't tell one from the other.
