Default reroute the belt

I have my 93 SE and i was wondering since my a/c doesn't work anymore and i'm don't relly use an a/c on any car i drive. would it be possible to reroute around the a/c compressor to free up some horsepower using the stock belt?
sqela is offline   Reply With Quote
Old 06-15-2006, 04:40 PM   #2
Senior Member
Certified GM nut

Join Date: Sep 2005
Location: Home Sweet Home in New York
Posts: 2,009
Thanks: 0
Thanked 0 Times in 0 Posts
Mortehl is on a distinguished road
Default

Nick, I think Blazin did an AC delete so I think its possible on the Series 1. He was an l67 though.
Mortehl is offline   Reply With Quote
Old 06-15-2006, 07:12 PM   #3
IKZ
Senior Member
Posts like a 4 Banger

Join Date: Mar 2006
Location: Maryland
Posts: 112
Thanks: 0
Thanked 0 Times in 0 Posts
IKZ is on a distinguished road
Default

I just did this a few weeks ago...I'll get you a pic in a minute!
IKZ is offline   Reply With Quote
Old 06-15-2006, 07:14 PM   #4
IKZ
Senior Member
Posts like a 4 Banger

Join Date: Mar 2006
Location: Maryland
Posts: 112
Thanks: 0
Thanked 0 Times in 0 Posts
IKZ is on a distinguished road
Default

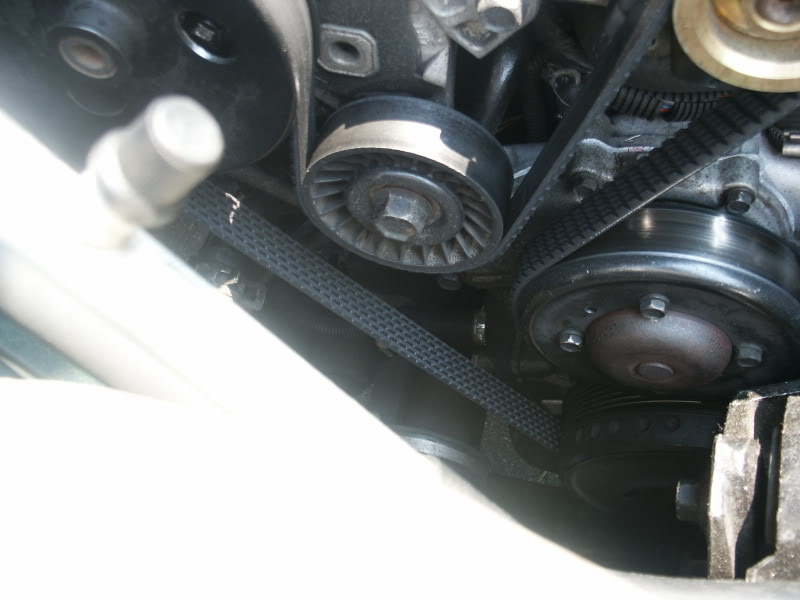

Name:  PICT0012.jpg
Views: 2
Size:  63.6 KB
IKZ is offline   Reply With Quote
Old 06-15-2006, 07:22 PM   #5
IKZ
Senior Member
Posts like a 4 Banger

Join Date: Mar 2006
Location: Maryland
Posts: 112
Thanks: 0
Thanked 0 Times in 0 Posts
IKZ is on a distinguished road
Default

IKZ is offline   Reply With Quote
Old 06-15-2006, 10:37 PM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: May 2004
Posts: 3,837
Thanks: 0
Thanked 0 Times in 0 Posts
sqela is on a distinguished road
Default

is this the same size as the stock belt? and anyone know how much of a HP gain i should expect?
sqela is offline   Reply With Quote
Old 06-15-2006, 10:43 PM   #7
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Quote:
Originally Posted by Mortehl
Nick, I think Blazin did an AC delete so I think its possible on the Series 1. He was an l67 though.
Yeah I have My A/C bypassed. For a Series 1 L67 you need a smaller tentioner pulley and a smaller belt. For a Series 1 L27 you just need a smaller belt.

As far as HP you really are not going to see a difference. In theory you do have less rotating mass but as long as your A/C clutch is not ingauged it really isn't much. I did it to lose some weight and make it easier to work on under the hood.

BTW... Mortehl car is totalled? When did this happen?
llBlazin_llLo is offline   Reply With Quote
Old 06-16-2006, 02:03 PM   #8
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Hmm so that belt is a 72.5" 6 rib ...

The one I used on my 91 SSE is a 73" 6 rib... Pretty close...

At least we know that this is possible with both the LN3 and L27 engines..

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 06-17-2006, 03:31 AM   #9
Senior Member
Posts like a Camaro

Join Date: Apr 2006
Location: maitland fl
Posts: 858
Thanks: 0
Thanked 0 Times in 0 Posts
Marik_bathory is on a distinguished road
Default

again, relevence is debatable, since my bonnie motor isn't in a bonnie, but i used a 72 inch belt and was forced only to re-route two vacume lines that run through the belt system. i just pulled them out and ran them overhead, following the wiring harness...

while i don't think there was any great power gain. the motor did feel more free when revving up and the real gains come from the 40 somthing pounds you remove from the front end by pulling all that useless crap off of there...
Marik_bathory is offline   Reply With Quote
Old 06-19-2006, 06:00 AM   #10
Member
Posts like a V-Tak

Join Date: Sep 2005
Location: Edmonton Alberta
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
Richard V is on a distinguished road
Default

I'm in the process right now of doing the same mod, and I tried a 73 inch belt which was too loose, the belt deflected about 1/2 inch and i noticed slight power loss, I returned the belt and am going with a 72 inch.
