Default removal of inside door pannel

ok, well i'm trying to replace the mirror and i need to take this piece off. I can't seem to get one bolt. I don't even know got to get to it. It looks like it'* pretty much in the middle of the door near the lower part of the handel. The gray rubber piece that you grab to shut the door seams to be in the way of it. could someone help me out with this problem so i can fix the problem.
ryan_siefring is offline   Reply With Quote
Old 07-05-2005, 09:30 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It'* in Techinfo. Link at the top of the page.
willwren is offline   Reply With Quote
Old 07-05-2005, 09:31 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I think the one you are talking about is behind the handle to open the door. There is a little spot to put a small screwdriver in and pry the piece out ...then you'll be able to see the torx head that is holding you in.
BillBoost37 is offline   Reply With Quote
Old 07-05-2005, 09:31 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by willwren
It'* in Techinfo. Link at the top of the page.
That'* the quick way to answer...lol...
BillBoost37 is offline   Reply With Quote
Old 07-06-2005, 02:26 PM   #5
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default Re: removal of inside door pannel

Quote:
Originally Posted by ryan_siefring
It looks like it'* pretty much in the middle of the door near the lower part of the handel. The gray rubber piece that you grab to shut the door seams to be in the way of it.

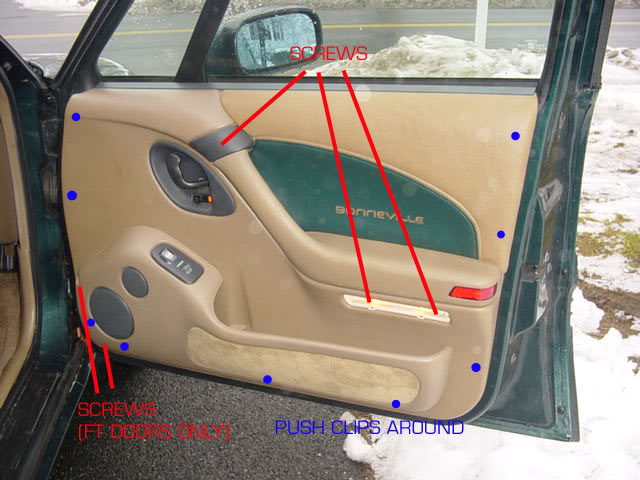

Sounds like this describes the two (92-95) or one (96-99) 10mm bolt(*) behind the lights. Here'* a pic from a 93 that roughly shows the locations of the fasteners:

Name:  DSC01314_edit.jpg
Views: 6
Size:  62.1 KB

There is one that is not labled. It'* the one behind the latch release handle and is the one that BillBost is describing
randman1 is offline   Reply With Quote
Old 07-06-2005, 05:47 PM   #6
Junior Member
Thread Starter

Join Date: Jul 2005
Location: dayton, OH
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
ryan_siefring is on a distinguished road
Default

OK, thanks everyone, i'll remove that white light strip and see what'* behind it. in 98 they must not of had thos 10mm bolts on the lower left side becasue i don't have those.
ryan_siefring is offline   Reply With Quote
Old 07-07-2005, 12:08 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Righto...no 10mm bolts and behind the light...removes from the back edge....there'* one bolt instead of two.
BillBoost37 is offline   Reply With Quote
Old 07-07-2005, 08:45 AM   #8
Junior Member
Thread Starter

Join Date: Jul 2005
Location: dayton, OH
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
ryan_siefring is on a distinguished road
Default

yeah, it was that white light strip that i couldn't figure out how to get it off that was killing me. I've got i all off now and was able to put on the mirror. that second bolt in the mirror is hard to get to, but it'* on.
ryan_siefring is offline   Reply With Quote
Old 07-07-2005, 08:50 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I bought ratcheting wrenches...took the time from about 1/2 hour to 5 minutes for me. The angle is the killer.
