Default Questions about the balance shaft (bearing vs. bushing?)

So I am trying to put the balance shaft in right now and noticed there is a gap at the end opposite to where the gear is (see figure 1a). I checked the FSM and it says I need to have a "balance shaft bushing" in that spot (see figure 2), but I can't seem to find it (I have a feeling the machine shop took it by accident).

When I went to the dealership to replace it, their computer catalog makes no mention of a bushing and I didn't have my manual with me at the time so I pretty much looked like an idiot. The GM catalog only seems to have a $17 "balance shaft bearing."

Now my question is, are the bushing and bearing the same thing? Or is the bearing what goes at the end of the balance shaft (see figure 1b)?

I tried to do some research online to see what it looks like but I could only find this thread from the midwest 3800 board about doing a balance shaft deletion and they have this picture (figure 3) but I'm not sure which is which and what goes inside what.

My last question is, when I put the balance shaft in, should the driven gear completely overlap with the drive gear on the cam shaft (see figure 1c)? I couldn't really get it to go all the way by hand so I am assuming I need to take a soft mallet to it? Thanks a lot for clearing up my confusion, I just want to do this rebuild right!

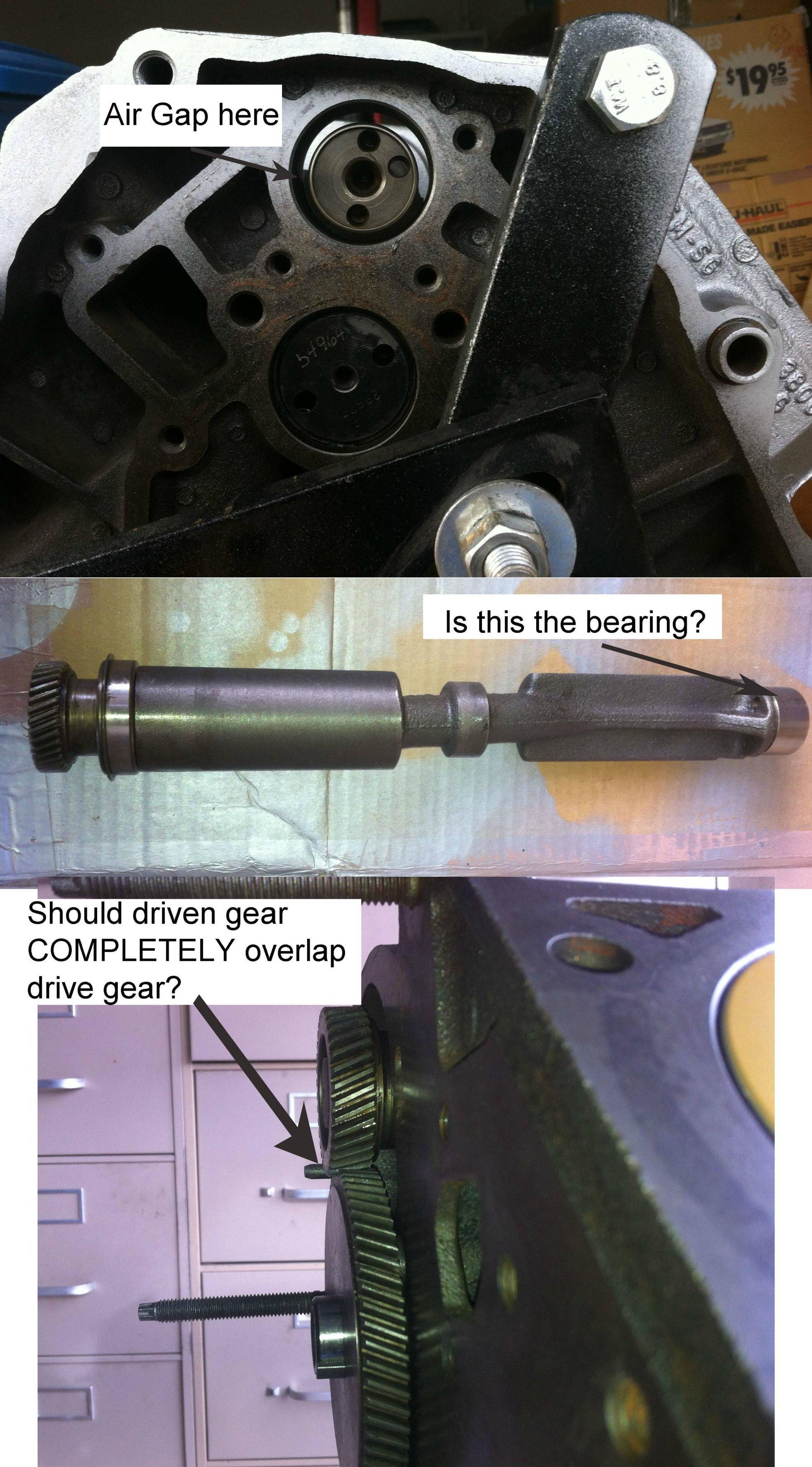

Figure 1
a. rear of engine, where supposed bushing (bearing?) is missing
b. what my balance shaft looks like, not sure if thing on the rear is actually the bearing or if it is some kind of machined bearing permanently attached to the shaft
c. front of engine, not sure how far in the balance shaft should go

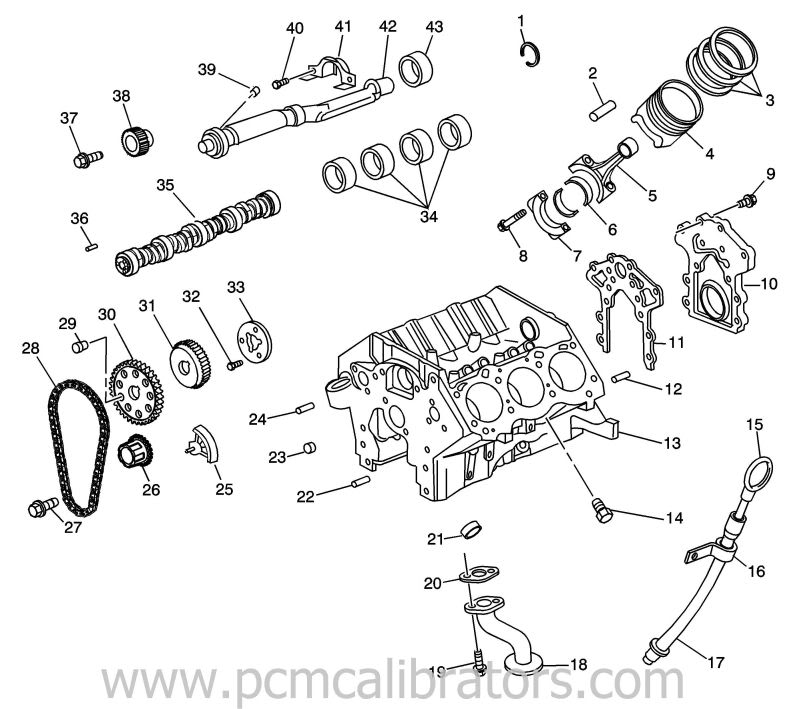

Figure 2: Part 43 reads balance shaft rear bushing, taken from 3800 pro forums

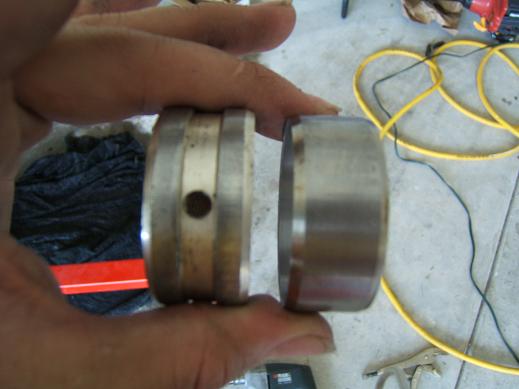

Figure 3: not sure what these are, taken from midwest 3800 forum
Attached Thumbnails
Questions about the balance shaft (bearing vs. bushing?)-engineblockandcomponents.jpg   Questions about the balance shaft (bearing vs. bushing?)-mopar_berring_comparison1_572.jpg
eazhar is offline   Reply With Quote
Old 03-25-2012, 10:18 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Figures you would ask about this now. I just stripped my old L36 down JUST a few days ago. And I honestly don't remember seeing an overlap with the driven gear. Dan just stripped a timing set and he should remember how that goes in.
Mike is offline   Reply With Quote
Old 03-25-2012, 10:23 AM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Can't say for sure about the rear side of the engine, but I know the timing side has a bearing. And I don't recall there being any overlap on the balance shaft gears. I believe they should be even. It looks like that balance shaft is sticking out a bit. The engine I'm building now has the balance shaft removed.
Danthurs is offline   Reply With Quote
Old 03-25-2012, 05:05 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

Mike or Dan do you happen to remember what the Balance shaft bushing looked like? is it a piece of metal that has a lip in the middle (Like the left piece in the third picture)?

Any idea why the GM dealership might not have it in their catalog?
eazhar is offline   Reply With Quote
Old 03-25-2012, 05:12 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

Or rather, is the balance shaft bearing the same part with a different name?
eazhar is offline   Reply With Quote
Old 03-25-2012, 05:41 PM   #6
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I guess its not a commonly replaced part.

It is possible it could be called either or...bushing or bearing.

I seen on GMPARTSEAST.COM under my listing, its item 151, but you get the whole balance shaft and the bearing. Which is about $60.
Attached Thumbnails
Questions about the balance shaft (bearing vs. bushing?)-engine-asm-3-8l-v6-cylinder-block-gm00275h04.png
Mike is offline   Reply With Quote
Old 03-25-2012, 06:39 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

This website is fantastic! I've been going to GMPARTSDIRECT.com but their engine diagrams only have like half the parts for some odd reason. Is this only for the east coast or is there a west coast version of that site?
eazhar is offline   Reply With Quote
Old 03-25-2012, 06:45 PM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Take a peek at www.rockauto.com They may have the part. Otherwise I have a block sitting in the shop thats about to go to the scrap yard. I may be able to pull the part from there.
Danthurs is offline   Reply With Quote
Old 03-25-2012, 06:56 PM   #9
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

I found it on their l36 catalog but not the l67, which is odd. Apparently this is the sealed power part: 3204DR

http://www.oreillyauto.com/site/c/de...keyword=3204dr
eazhar is offline   Reply With Quote
Old 03-25-2012, 06:58 PM   #10
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

Also, thanks Dan!!
