Possible LIM/UIM Problems? - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 07-08-2007, 08:42 PM   #11
Member
Posts like a V-Tak

Join Date: Jul 2007
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
markkleb is on a distinguished road
Default

A good Rad/cooling system flush will help the temps. Besides if its more serious the Rad shop can disassemble and really clean the rad if needed.

A reason for cooler while on freeway is a bunch more airflow through the Rad. I am in Reno and we have a bunch of days in the 10F and below. I have no prob with a 180deg thermo.

Dont buy the cheap one, spend the few xtra bucks and get the good one
http://www.partsamerica.com/ProductD...pe=133&PTSet=A


Excellent pict Jr.
markkleb is offline   Reply With Quote
Old 07-08-2007, 10:46 PM   #12
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That'* not the GOOD one. Go to www.INTENSE-racing.com and get the good one. It outlflows the STANT by a good margin.
willwren is offline   Reply With Quote
Old 07-08-2007, 10:53 PM   #13
Member
Posts like a V-Tak

Join Date: Jul 2007
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
markkleb is on a distinguished road
Default

I saw that one and the id of the opening is the same as the stant.

http://www.stant.com/brochure.cfm?br...ocation_id=168

I would say its "good" but im sure there may be some better.
markkleb is offline   Reply With Quote
Old 07-08-2007, 11:10 PM   #14
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

No, it'* not. You have to look and measure carefully. Side by side.

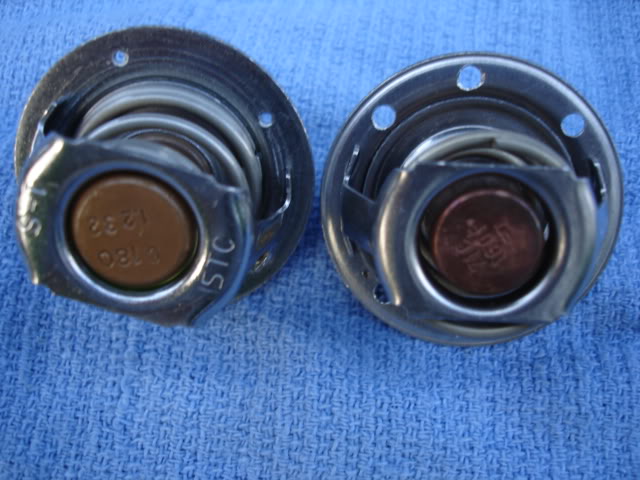

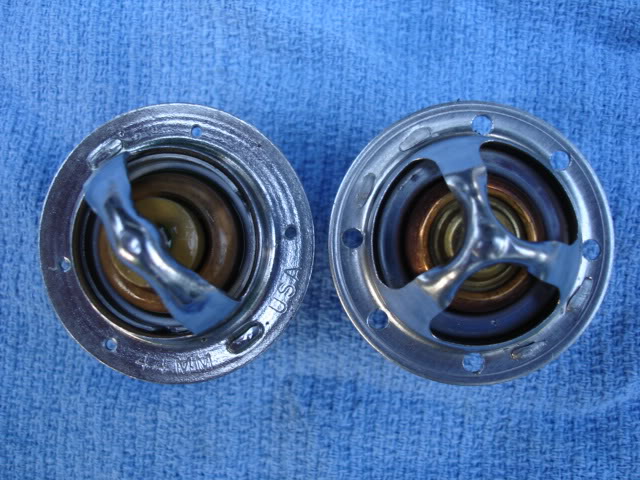

I have, as well as testing them when open. Stant on the left, INTENSE on the right:

Name:  extreme5.jpg
Views: 0
Size:  79.0 KB

Name:  extreme6.jpg
Views: 2
Size:  58.9 KB

When you have them side by side in your hand (as I do right now) the difference is obvious.

The Stant has an open diameter of 1.11", the INTENSE is 1.21". This resoves to an area of .96769" for the Stant and 1.1499 square inches for the INTENSE.

This is an 18.8% difference in flow.
willwren is offline   Reply With Quote
Old 07-08-2007, 11:13 PM   #15
Member
Posts like a V-Tak

Join Date: Jul 2007
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
markkleb is on a distinguished road
Default

I stand corrected.

(.1 may be obvious to you but im old and to my eyes its close. Especially since the one Intense uses to compare against in its pict is MUCH smaller)

PS Will: a big thanks for the pict, it sure is handy to have someone with ur experience to point out this stuff..
markkleb is offline   Reply With Quote
Old 07-09-2007, 12:28 PM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Did you happen to top off your coolant with the "other color" than you had originally?

BTW.. I can't see oil getting pushed into the coolant. In the heads, the oil is not pressurized and the coolant is ~16lbs. Coolant would go into oil..not the other way around.
BillBoost37 is offline   Reply With Quote
Old 07-09-2007, 08:53 PM   #17
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

well im taking it to the dealer tomorrow...unless anybody has a reason why i should not install a 180* thermostat, please speak now.....but i've seen so many with them im feelin pretty confident about getting one
96bonniessei is offline   Reply With Quote
Old 07-09-2007, 11:15 PM   #18
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The dealer will refuse the installation and feed you a line of BS. Plan on doing it afterwards.
willwren is offline   Reply With Quote
Old 07-10-2007, 12:49 AM   #19
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

no this guy is good up there i know him personally...i am very sure he will do it...but if he doesn't, well i guess i've got the stuff to do it myself
96bonniessei is offline   Reply With Quote
Old 07-16-2007, 09:46 PM   #20
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

sorry to dig this up, but i took it to the dealer today, and he believed the coolant looked more red than it should, so he believed that somehow there might have been transmission fluid in the coolant...Is this possible, since I thought that the lines for the transmission cooler and radiator were completely different lines
96bonniessei is offline   Reply With Quote
