Default pic 02 sensor

does anyway have a picture of wha t my front 02 sensor looks like. is it below the thermostat housing.
1992 bonneville sse
161,500
and i love her
strongsun1 is offline   Reply With Quote
Old 09-26-2005, 09:32 PM   #2
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Actually, your O2 sensor is located on the down pipe going into the catalytic convertor. If you look over top of the engine and straight down (parallel to the firewall) you'll see it screwed into the exhaust pipe. It almost looks like a spark plug.

The easiest way to remove it is to rent the O2 Sensor Removal Tool from AutoZone. It'* a slick socket that has a slot in the wall to allow for the wire to hang off to the side.
vital49 is offline   Reply With Quote
Old 09-26-2005, 09:38 PM   #3
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

Quote:
Originally Posted by vital49
Actually, your O2 sensor is located on the down pipe going into the catalytic convertor. If you look over top of the engine and straight down (parallel to the firewall) you'll see it screwed into the exhaust pipe. It almost looks like a spark plug.

The easiest way to remove it is to rent the O2 Sensor Removal Tool from AutoZone. It'* a slick socket that has a slot in the wall to allow for the wire to hang off to the side.
The socket is well worth the money spent
dbeast420 is offline   Reply With Quote
Old 09-26-2005, 09:44 PM   #4
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Pennsylvania
Posts: 5,177
Thanks: 0
Thanked 0 Times in 0 Posts
Twister97 is on a distinguished road
Default Re: pic 02 sensor

Quote:
Originally Posted by strongsun1
does anyway have a picture of wha t my front 02 sensor looks like. is it below the thermostat housing.
1992 bonneville sse
161,500
and i love her

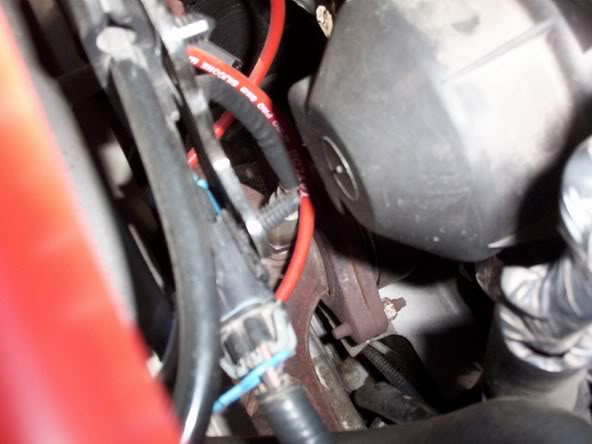

Here is what it looks like from a 97 SE, a year old, but im sure its still there

Name:  02SensorBig.jpg
Views: 0
Size:  34.7 KB
Twister97 is offline   Reply With Quote
Old 09-26-2005, 09:53 PM   #5
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Oh but u cant beat the feeling after you have removed that O2 with a box end wrench, the skinned knuckles, ahh what a good feeling.
SSEimatt93 is offline   Reply With Quote
Old 09-26-2005, 10:35 PM   #6
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Aug 2005
Posts: 124
Thanks: 0
Thanked 0 Times in 0 Posts
strongsun1 is on a distinguished road
Default

man you guys are the best. I'll have my bonnie hooked up in no time.
who wants to race?
strongsun1 is offline   Reply With Quote
Old 09-27-2005, 12:30 AM   #7
Member
Posts like a V-Tak

Join Date: Aug 2005
Location: Central NJ
Posts: 98
Thanks: 0
Thanked 0 Times in 0 Posts
Charliebonn is on a distinguished road
Default

http://www.shop.com/op/aprod-p24028700?sourceid=3

Try these nine different sizes, for just $12.99

Beats knuckle busters!
Charliebonn is offline   Reply With Quote
Old 09-27-2005, 12:37 AM   #8
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Here'* a tip. Give it a good shot of WD40, let it sit for a while (half an hour), run the car for a minute, but no longer. Let it cool for a minute or two, put some gloves on, and put the wrench on the O2 sensor. It'll pop out without too much stress.

BTW, you only have 1 O2 sensor, right below the blower motor. Take the 4 nuts off the strut tower brace and remove it, that'll give you more arm room.
J Wikoff is offline   Reply With Quote
Old 09-27-2005, 01:15 AM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by strongsun1
man you guys are the best. I'll have my bonnie hooked up in no time.
who wants to race?
Not in GA. Too far. And nobody lives close enough for you anyway.

It would help immensely if you put your year and trim level (SE/SLE/SSE/SSEi) in your signature.
willwren is offline   Reply With Quote
Old 09-27-2005, 01:46 AM   #10
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Grand Rapids,MI
Posts: 981
Thanks: 0
Thanked 0 Times in 0 Posts
Masterbm is on a distinguished road
Default

oh you have about the same miles as my 92
