Default P0104B Fault Code

I am having issues with this code. I have gone through everything I can think of. I have changed the EGR, cleaned all the passages with the intake off, changed the PCV, the MAP , both o2'*, and double and triple checked tall the wiring and vacuums. Does anyone have any ideas on what the cause could be. I run the code, clear it then test drive the car and it comes back again. The last time it came back with a fuel trim lean code also. Any help would be greatly appreciated.
TrickRacin is offline   Reply With Quote
Old 02-26-2006, 11:35 PM   #2
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

I don't have a '97 FSM, but my '95 has no such code. If you mean code P0401, (EGR flow test failure) which it sounds like from your description, let me know and I will scan and post the diagnostic procedure for you.

If this is the problem, the only fixes seem to be:

clean the EGR and passages or change it out,
fix short in ckt 435
change out PCM,

There is also a note that says: if dtcs p0101 or p1406 are set with dtc p0401, diagnose and repair in the following order: 101, 1406, 401

If you already have an FSM, I have no other ideas.
bill buttermore is offline   Reply With Quote
Old 02-26-2006, 11:41 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2005
Location: Monticello, Iowa
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
TrickRacin is on a distinguished road
Default

yeah it is code P0401 and our scanner says it is for insuffecient EGR flow. I have cleaned, tested and or replaced everything i can really think of to this point so a flow chart would be awsome. Thanx
TrickRacin is offline   Reply With Quote
Old 02-26-2006, 11:58 PM   #4
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Remember, this is from a '95 FSM. May be different for a '97. Everything is not the same. You may have to figure out a way to cheat on some of the tests assuming you don't have a Tech I tool.

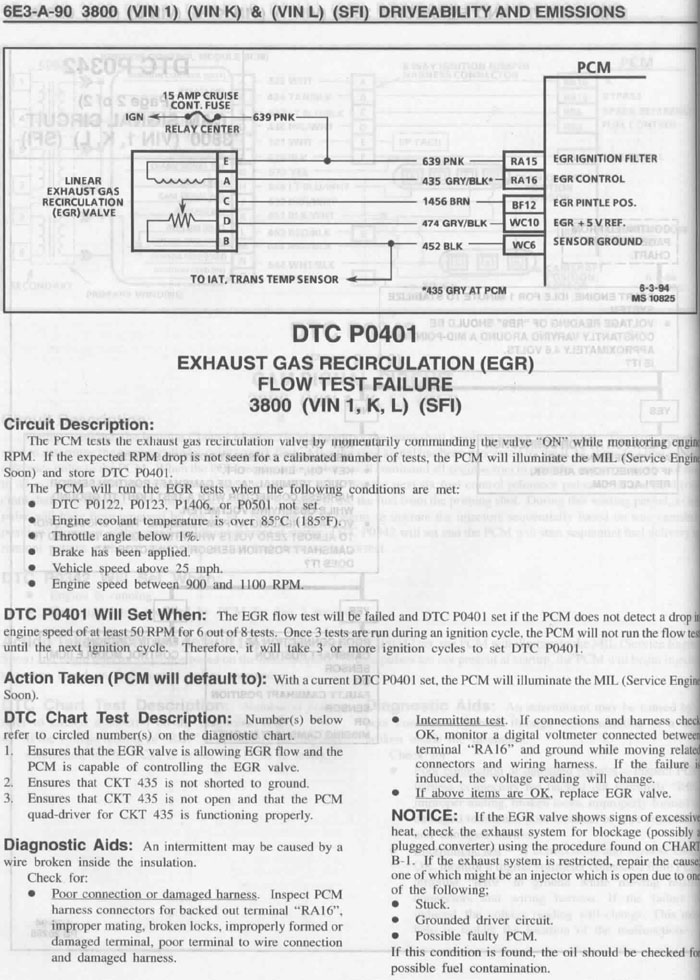

Name:  DTCP0401d.jpg
Views: 0
Size:  173.4 KB

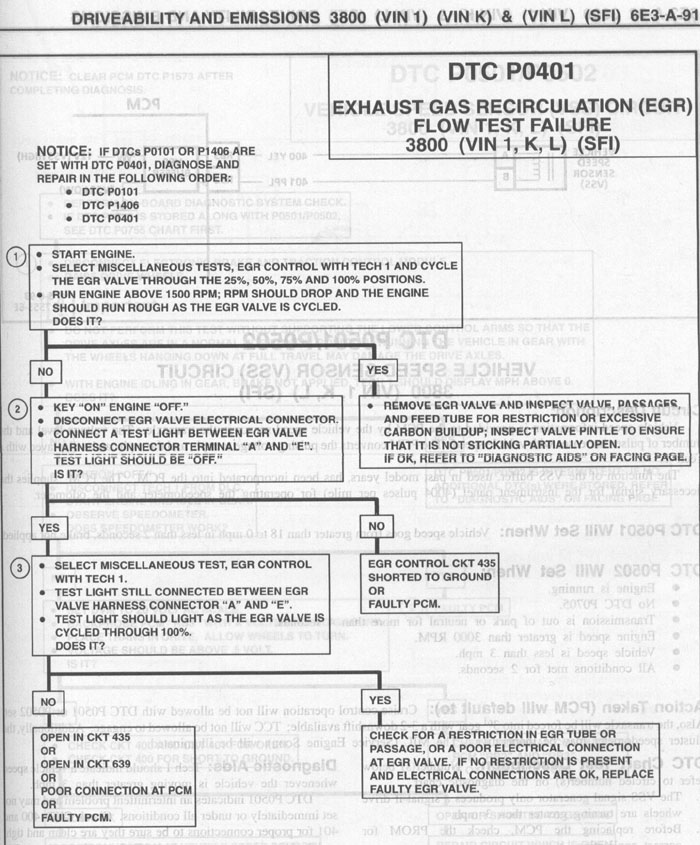

Name:  DTCP0401e.jpg
Views: 0
Size:  152.8 KB
bill buttermore is offline   Reply With Quote
Old 02-27-2006, 12:10 AM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2005
Location: Monticello, Iowa
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
TrickRacin is on a distinguished road
Default

works for me. Thanx for the help. I'll be sure to post how it turns out
TrickRacin is offline   Reply With Quote
