Quote:
Originally Posted by LeifW
This is what I got with my Dorman. Should I have gotten some additional stuff?






LeifW
Hey, Leif, can I have your old, failed UIM? I need some cores for sleeving.

I'll be glad to pay postage. PM me if it'* available.

Thanks!
Bob Dillon is offline   Reply With Quote
Old 02-19-2006, 02:28 PM   #12
Member
Posts like a V-Tak

Join Date: Jan 2005
Location: New Canaan, CT
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
LeifW is on a distinguished road
Default

Quote:
Originally Posted by Bob Dillon
Quote:
Originally Posted by LeifW
This is what I got with my Dorman. Should I have gotten some additional stuff?






LeifW
Hey, Leif, can I have your old, failed UIM? I need some cores for sleeving.

I'll be glad to pay postage. PM me if it'* available.

Thanks!
Sure. When we do the work, I'll make sure to put it aside.

LeifW
LeifW is offline   Reply With Quote
Old 02-19-2006, 10:02 PM   #13
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Yep..that'* a dorman intake. Comes with all the goodies..

I was surprised when I saw it all.
BillBoost37 is offline   Reply With Quote
Old 02-19-2006, 11:17 PM   #14
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2006
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
jmandeville is on a distinguished road
Default

Quote:
Originally Posted by LeifW
Quote:
Originally Posted by corvettecrazy
I also got an instruction sheet but looks like you got everything.
I got the instruction sheet as well, but I didn't include it in the pictures. Did you get any additional O-rings as mentioned in this thread? I did not.

Leif
Sorry for the slow response back. In my Dorman box, there were 5 O-rings. These are shown in the attached photos. Everything below the horizontal line defined by the ruler was supplied with the Dorman. Also shown in the photos is the coolant bypass elbow and the fuel injector O-ring kit, both which I got from the dealer. The two right most Dorman O-rings look a lot like the Fuel Injector O-rings.




Frankley, I'm a bit disappointed in the Dorman folks that they couldn't make the effort to at least put in an itemized parts list detailing what the O-rings went to. I did get the one sheet instruction sheet which talks about the tightening of the UIM.

I'm at a loss as what to do with the EGR tube which was included in the Dorman kit. No directions were included as to what to do with it. At first I was expecting the part to fit inside the existing/original EGR tube and to have an interferance fit. But, the largest diameter of the Dorman tube is about .010" less in diameter than the I.D. of the original tube. See pic'*...





Anybody out there know what I'm supposed to do with this ?
I thought it would have been something like :

http://ken-co.com/manifold/plenumrepair.pdf

Finally, I have one more problem. It looks like I have some pitting on the lower intake manifold gasket surface where the LIM mates with the head, specifically around one of the coolant passages. See attached pic.





I'm worried that there is enough "errosion" of the surface to jepordize good sealing...
I was thinking of using either some J-B Weld epoxy or the epoxy that is reference in the "ken-co" kit referenced in the post earlier.

I need your guys help again.

Thanks,

Jack
jmandeville is offline   Reply With Quote
Old 02-20-2006, 09:38 AM   #15
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Jack, I would definitely want to fill those pitted areas if it were me. I've never used J-B Weld there, but think it should be adequate as long as you use the long cure type (original part no. 8265-*, good for 600*F) and not the rapid cure type.

I'm thinking that maybe that pitting is due to long exposure to coolant under the LIM gaskets, but that'* just a guess at this point.
lash is offline   Reply With Quote
Old 02-20-2006, 12:41 PM   #16
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default


The Orange O rings are actually for the Coolant Elbow... Thge large black O ring id for the PCV valve.... I believe that the other 2 are for the Map Sensor...

I agree with Lash... If you use JB weld to seal it up use the long cure... It should be pretty resistant to the heat changes and will be as hard as a rock when it cures...

Any chance on having a machine shop repair that spot on the intake?

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 02-20-2006, 02:14 PM   #17
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Having repaired a Ford with Highlander with JB weld...I'm sure a spot would be fine. We actually machined it..then drilled and tapped it.. Stuff is great.
BillBoost37 is offline   Reply With Quote
Old 02-20-2006, 02:35 PM   #18
Member
Posts like a V-Tak

Join Date: Jan 2006
Location: D-troit
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
nimrodtoo is on a distinguished road
Default

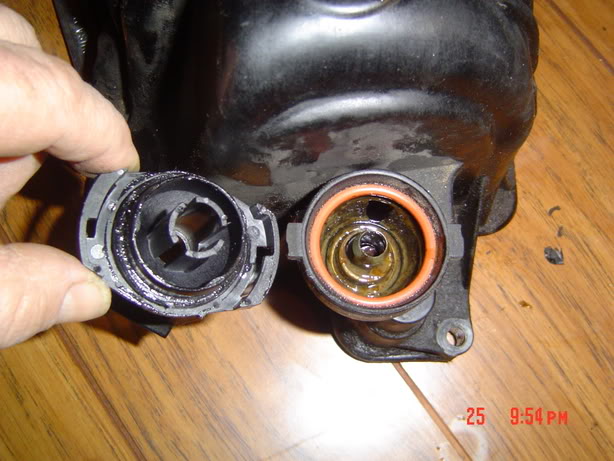

Once you get it apart, you'll easily see where all the o-rings belong. Here'* a pic showing where the big o-ring goes...
Nim
Name:  DSC03247.jpg
Views: 7
Size:  57.5 KB
nimrodtoo is offline   Reply With Quote
Old 02-20-2006, 02:50 PM   #19
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2006
Posts: 26
Thanks: 0
Thanked 0 Times in 0 Posts
jmandeville is on a distinguished road
Default

How about this thing ? I would guess it has something to do with the EGR tube but since it fits so loose in the existing tube which is pressed into the lower intake manifold section, I'm confused as to what to do with it.

jmandeville is offline   Reply With Quote
Old 02-20-2006, 03:21 PM   #20
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

bonus?

CorvetteCrazy'* didn't have it.
The dormans don't seem to have a sleeve with them. it'* already part of the lower intake and the upper is merely composite.

Bob Dillion or Jr'* might know. They've seen tons of these.
BillBoost37 is offline   Reply With Quote
