Default O-rings in Dorman UIM PN# 615-180 for 1997 Pontiac Bonny

I bought the Dorman PN# 615-180 Upper intake manifold. The only documentation included is about the tightening sequence and torque specs for UIM. There are 5 loose O-rings included in the package, but there is no documentation as to what they go to.

My guess is as follows:

1.) Two of the O-rings are orange in color and look like they must go to the coolant bypass elbow.... I did buy the coolant bypass elbow from the dealer.

2.) There are two small black O-rings which appear to go to the fuel injector, where one would be for the injector to fuel rail connection and the other for the fuel injector to intake manifold connection... What bothers me is why only include O-rings for just one of the six fuel injectors.

3.) The fifth and last O-ring is black in color and has an ID of about 3/4" to 7/8" in diameter and has a thickness of about 1/8". I have no idea as to what this is for.


In fact, I am not certain about ANY of these 5 loose O-rings. Does anybody know?
Did the other folks out there get what I got ? Does it sound like my box didn't come with a parts list ?

Thanks for the help,

Jack
jmandeville is offline   Reply With Quote
Old 02-17-2006, 01:40 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Came with the dorman huh?

I know a couple of those rings go on the vacuum port that hooks into the back of the intake. Technically you'd probably call it a dickfer. I don't remember them giving coolant elbow rings. There'* a gasket for the endcap on the trans end of the intake. I know there'* one other..having trouble remembering...

Where are the L36 guys on this one? HEY YOU [email protected]!!!!!!!
BillBoost37 is offline   Reply With Quote
Old 02-17-2006, 01:41 PM   #3
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

mine came with all of those...if I recall correctly they are all in my toolbox
corvettecrazy is offline   Reply With Quote
Old 02-17-2006, 01:46 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

1 or 2 more go on the PCV ...one down in .and one on the cover I think.

Ok....I think I have one left...hmmmmmmmm

Not bad for an SC'd owner
BillBoost37 is offline   Reply With Quote
Old 02-17-2006, 03:11 PM   #5
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Quote:
3.) The fifth and last O-ring is black in color and has an ID of about 3/4" to 7/8" in diameter and has a thickness of about 1/8". I have no idea as to what this is for.
This o-ring goes on the vacuum tube that runs to the power booster.

I'm not sure about the other 5. I currently run a sleeved UIM from Bob Dillon so I'm not as familiar with the Dorman kits.
vital49 is offline   Reply With Quote
Old 02-17-2006, 03:36 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I think I got it.

Vacuum tube for booster is actually 2 rings I think
PCV is another 2 rings
and er uh...I'll come up with the last one.
BillBoost37 is offline   Reply With Quote
Old 02-17-2006, 07:31 PM   #7
Member
Posts like a V-Tak

Join Date: Jan 2005
Location: New Canaan, CT
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
LeifW is on a distinguished road
Default

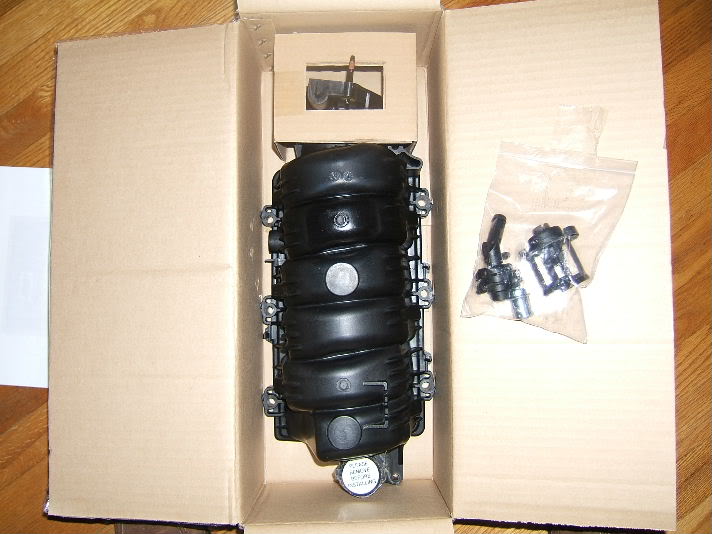

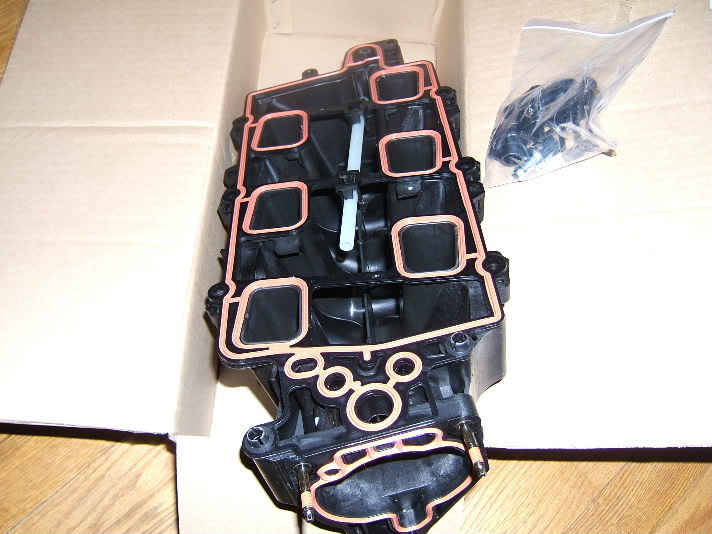

This is what I got with my Dorman. Should I have gotten some additional stuff?

Name:  Dorman1.jpg
Views: 11
Size:  56.5 KB

Name:  Dorman2.jpg
Views: 14
Size:  67.1 KB


LeifW
LeifW is offline   Reply With Quote
Old 02-17-2006, 08:15 PM   #8
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

I also got an instruction sheet but looks like you got everything.
corvettecrazy is offline   Reply With Quote
Old 02-17-2006, 08:42 PM   #9
Member
Posts like a V-Tak

Join Date: Jan 2005
Location: New Canaan, CT
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
LeifW is on a distinguished road
Default

Quote:
Originally Posted by corvettecrazy
I also got an instruction sheet but looks like you got everything.
I got the instruction sheet as well, but I didn't include it in the pictures. Did you get any additional O-rings as mentioned in this thread? I did not.

Leif
LeifW is offline   Reply With Quote
Old 02-17-2006, 11:01 PM   #10
Senior Member
Posts like a Northstar

Join Date: Jan 2005
Location: Richfield, MN
Posts: 781
Thanks: 0
Thanked 0 Times in 0 Posts
alec_b is on a distinguished road
Default

My dorman had thse extra o-rings. The only ones i used were for the PCV valve. The rest got tossed.
