Default No heat.

Hi guys,

I can see the passenger actuator working.

I was wondering where the driver side is. I get 0 heat in this beast only ICE cold air.

Thanks!
ggenovez is offline   Reply With Quote
Old 01-13-2011, 08:30 PM   #2
Member
Posts like a V-Tak

Join Date: Dec 2010
Location: Colorado Springs, Co., USA
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
96sseiCo is on a distinguished road
Default

A 94 should have only 1 actuator for the hot/cold; the blend door actuator. Its on top of the heater box, in front of the glove box. If you search for blend door, there are some DIY threads showing pics. You can see the blend door rod after removing the glove box liner.
96sseiCo is offline   Reply With Quote
Old 01-13-2011, 08:32 PM   #3
Member
Posts like a V-Tak

Join Date: Dec 2010
Location: Colorado Springs, Co., USA
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
96sseiCo is on a distinguished road
Default

Also, I was assuming you've already checked and both heater core hoses are hot???
96sseiCo is offline   Reply With Quote
Old 01-13-2011, 08:34 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

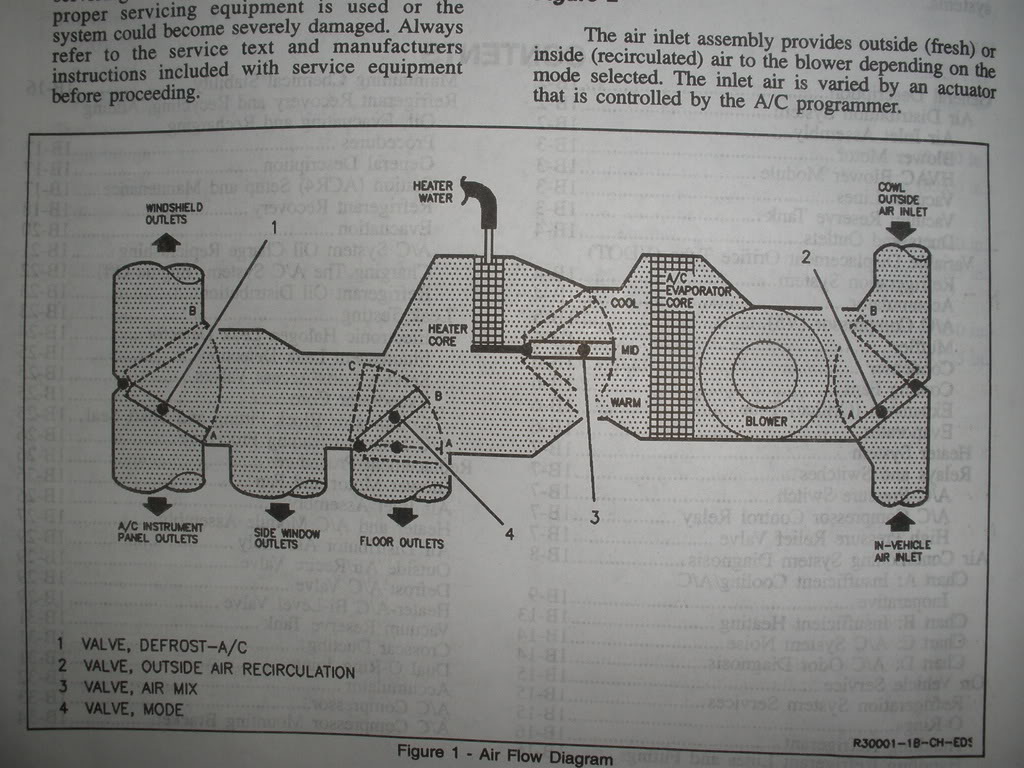

Does this help?
Name:  P1190001.jpg
Views: 4
Size:  151.5 KB
Danthurs is offline   Reply With Quote
Old 01-14-2011, 12:11 AM   #5
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: May 2009
Posts: 161
Thanked 4 Times in 4 Posts
ggenovez is on a distinguished road
Default

Quote:
Originally Posted by 96sseiCo View Post
Also, I was assuming you've already checked and both heater core hoses are hot???
You know what happens when you assume. I'll check it out tomorrow.
If the heater core is clogged, I'm guessing the only remedy is to replace it correct? how bad is the job?

Dan, yes that helps a lot! thanks
ggenovez is offline   Reply With Quote
Old 01-14-2011, 12:26 AM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

How bad is that job? How cold is it? If it'* really cold, then it'* not so bad. But it is a real pain.
Danthurs is offline   Reply With Quote
