Default Name that LIM gasket

I recently bought a ported and polished L36 LIM, and I'm just going over it once, mostly cleaning off some dirt and grime. (Not much else to do. Justin did a great job on this.)

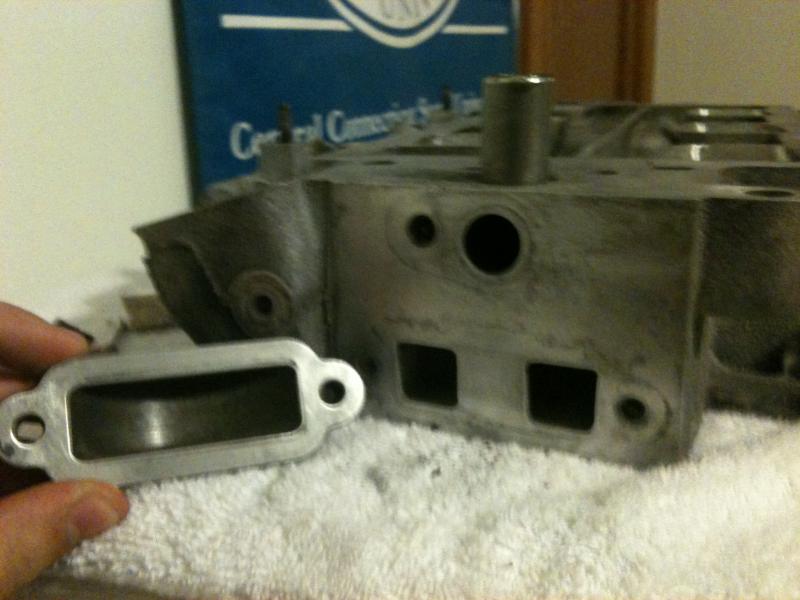

One thing I noticed was a worn gasket. Rectangular thing, just behind and below the thermostat port. (See attachment.) What'* that called, and is there a premade gasket or do I have to squeeze my own?
Attached Thumbnails
Name that LIM gasket-img_0267.jpg
SignOfZeta is offline   Reply With Quote
Old 05-06-2010, 07:07 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I don't see anywhere you could buy the gasket itself. But I noticed on rockauto that the intake plenum gasket kit comes with the gasket you need. $33 for your year.

Mike is offline   Reply With Quote
Old 05-06-2010, 07:53 AM   #3
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

It'* called the coolant manifold gasket. I'm not sure of the part number and can't find it alone anywhere. If you're swapping LIM'* you'll need the gasket kit anyway
Black Pearl is offline   Reply With Quote
Old 05-06-2010, 08:46 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Stop in to a dealer. They usually have them. Cheap too.
BillBoost37 is offline   Reply With Quote
Old 05-06-2010, 08:50 AM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

They sell that gasket at ZZP, if your planning to order other stuff, just order it. If that'* all you need, go to a dealer and save the shipping.
Danthurs is offline   Reply With Quote
Old 05-06-2010, 11:36 AM   #6
Senior Member
Certified GM nut
Thread Starter

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Thanks! I don't have immediate plans to swap in that new LIM, but I'll definitely keep RockAuto and ZZP in mind when it'* time. (ZZP calls it the intake manifold end cap gasket.)

That kit, metal LIM gaskets, and a set of coolant elbows are all I need for a LIM swap, correct?
SignOfZeta is offline   Reply With Quote
Old 05-06-2010, 11:38 AM   #7
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Quote:
Originally Posted by SignOfZeta View Post
Thanks! I don't have immediate plans to swap in that new LIM, but I'll definitely keep RockAuto and ZZP in mind when it'* time. (ZZP calls it the intake manifold end cap gasket.)

That kit, metal LIM gaskets, and a set of coolant elbows are all I need for a LIM swap, correct?
And RTV silicone to do the LIM gaskets
yutzybrian is offline   Reply With Quote
Old 05-06-2010, 12:25 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

IMO, I wouldn't get LIM gaskets from ZZP again. They didn't fit properly. Not sure how that'* possible, they didn't and I had two engines in pieces at the time.

GM'* fit great on both. ZZP'* didn't sit right on the end seals, felt different......cheap.
BillBoost37 is offline   Reply With Quote
Old 05-06-2010, 12:30 PM   #9
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

I used ZZP ones on mine and they seemed to fit fine but then again there may have been a minor detail I didn't noticed since I do have a very limited experience with cars.
yutzybrian is offline   Reply With Quote
Old 05-06-2010, 01:58 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

It was the end seals on the ones I experienced. They bowed up and wouldn't stay in the pin holes. Made it difficult to get the LIM situated properly while trying to use a third and fourth hand to hold them.
BillBoost37 is offline   Reply With Quote
