I knew these pics would come in handy someday....

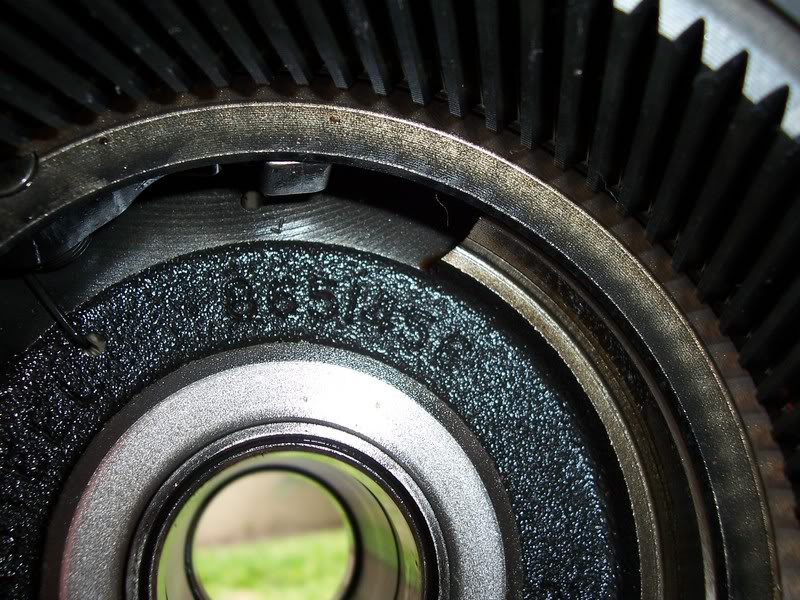

First picture shows the parking tang as it would when the trans is in gear

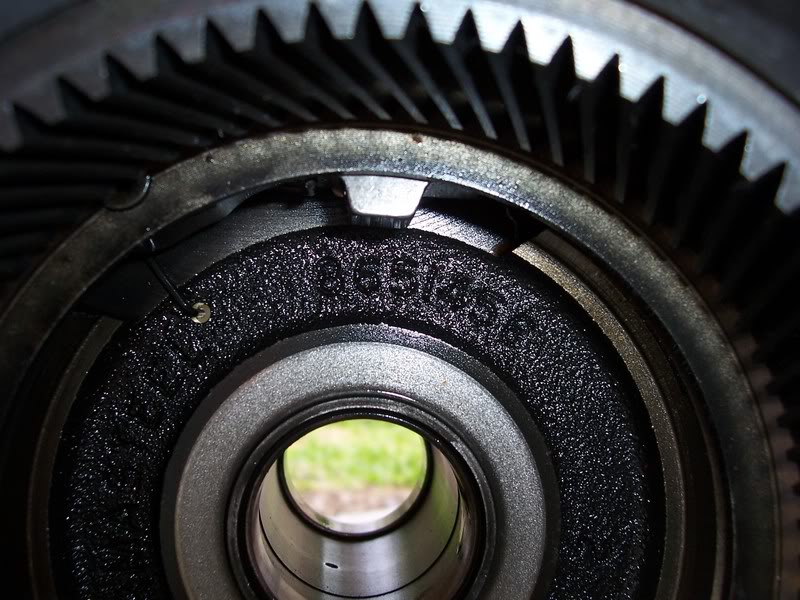

Second pic shows the same tang when gear selector is in park.

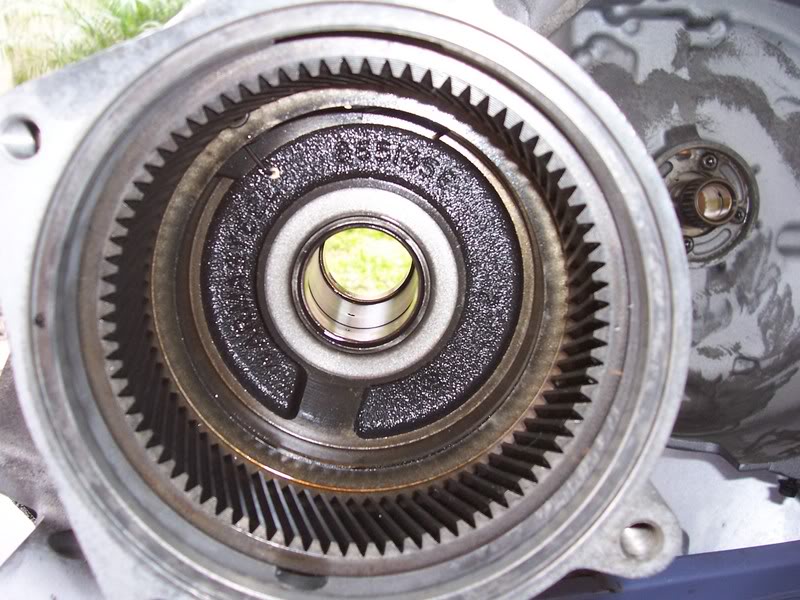

Third is just an overall pic...the parking gear is missing, but is the first thing to place in this trans, then goes the diff, bearing, and finally the cover. The parking gear is slid onto the output shaft, as is the differential. That is what enables the trans to "park".
First picture shows the parking tang as it would when the trans is in gear
Second pic shows the same tang when gear selector is in park.
Third is just an overall pic...the parking gear is missing, but is the first thing to place in this trans, then goes the diff, bearing, and finally the cover. The parking gear is slid onto the output shaft, as is the differential. That is what enables the trans to "park".
#13
Senior Member
True Car Nut
Thread Starter
Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Likes: 0
Received 0 Likes
on
0 Posts
thats cool to see!
thanks for sharing, I believe I got a better understanding of it now.
So when its in park and you rev the engine is it putting force on this piece?
thanks for sharing, I believe I got a better understanding of it now.
So when its in park and you rev the engine is it putting force on this piece?
