Default Left head vs. right head?

Hey guys I made it up to the heads now. I'm a little confused at this point and I have two questions.

1. My head gasket set differentiates the left and the right head. Probably a dumb question but to clarify, is the direction orientation like this?

Front
Left Right
Rear

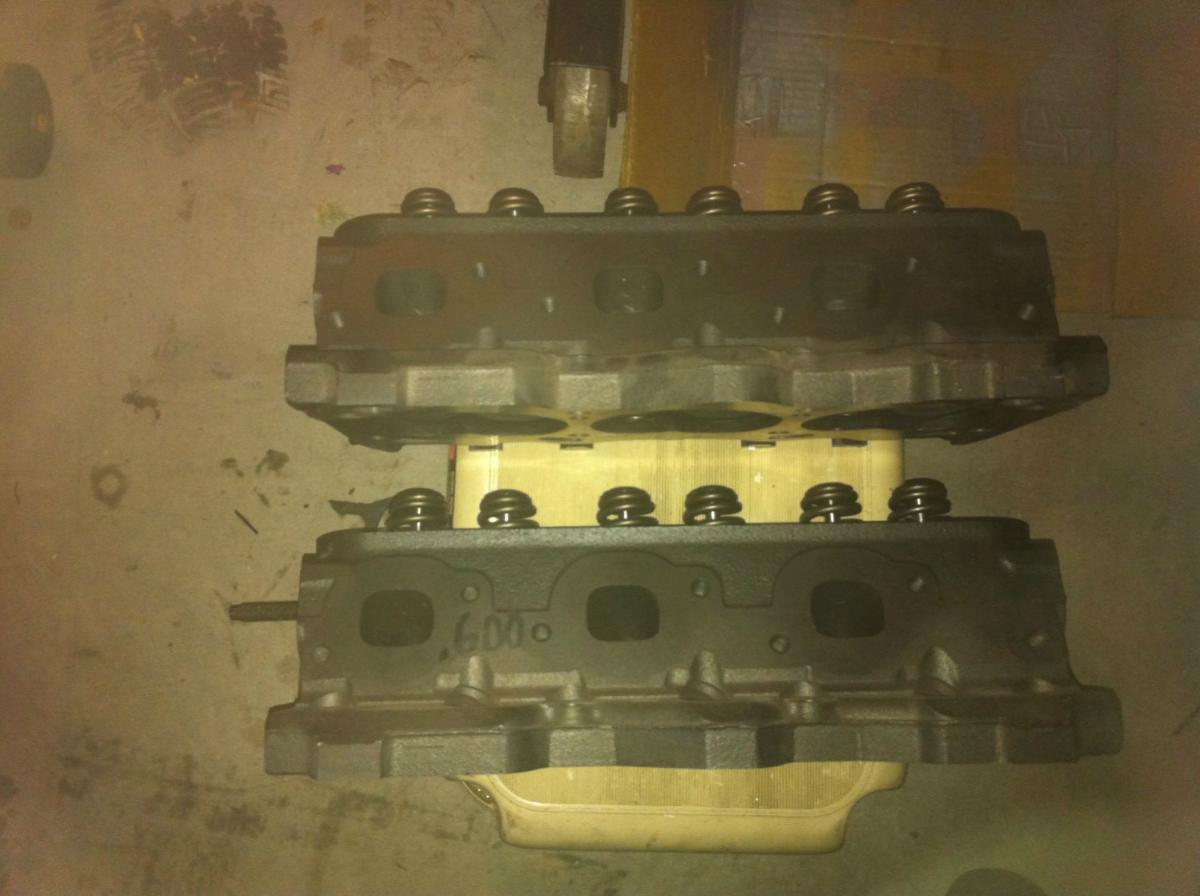

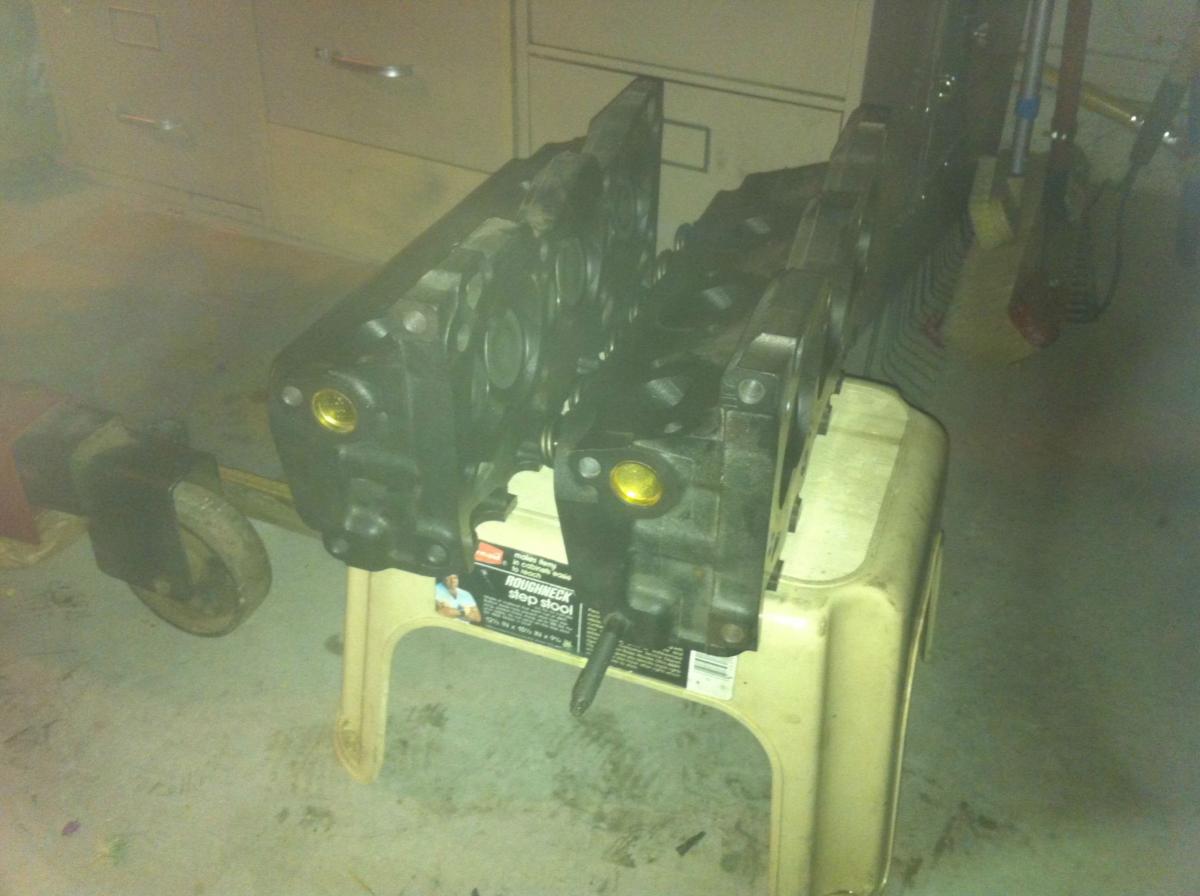

2. The two heads look absolutely identical to me, except one has a stud sticking out. Which one should I put on the left and which one is right? Sorry for the bad pictures


Attached Thumbnails
Left head vs. right head?-xt4ti.jpg   Left head vs. right head?-bilae.jpg
eazhar is offline   Reply With Quote
Old 04-09-2012, 01:53 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Apr 2011
Location: Kaukauna
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
wachs is on a distinguished road
Default

Not an expert here but Id believe the head with the stud sticking out would have been the front head. There should be another stud screwed into that head and the ECM mounts on them. As for the gaskets the felpros I used were the exact same just flip one so the arrow points toward the front ,passenger, side of the engine.
wachs is offline   Reply With Quote
Old 04-09-2012, 03:15 AM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2005
Location: Tempe, AZ
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
eazhar is on a distinguished road
Default

So the stud should be sticking out to the front and not to the rear of the engine? Thanks a lot!
eazhar is offline   Reply With Quote
Old 04-09-2012, 09:59 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

both heads are identical. That stud would have been on the radiator or left side. On the gaskets, just point the arrow to the front and you are all set.
