Default Handhold Removal

How do I remove the handholds which are attached to the headliner on the front passenger and rear passenger sides. Do they just pull out, or is there some technique to getting them off? Also does the electrical wire which supplies power to the reading lights just plug in?
laydbaak is offline   Reply With Quote
Old 12-17-2004, 03:04 PM   #2
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

This might help a little:

http://www.bonnevilleclub.com/forum/...ic.php?t=25055

Name:  DSC01005_edit.jpg
Views: 1
Size:  66.8 KB

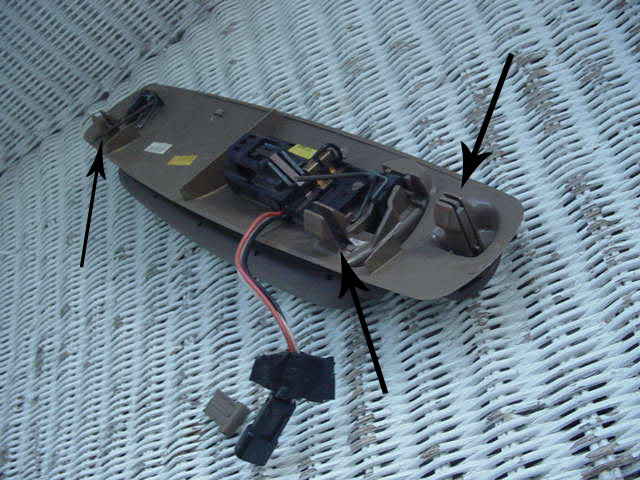

Name:  DSC01004_edit.jpg
Views: 1
Size:  70.7 KB

The wires do have a connector but typically it is duct taped and stapled to the headliner. I gave mine a couple of yanks and it came loose enough to get at the connector.
randman1 is offline   Reply With Quote
Old 12-18-2004, 01:21 AM   #3
Senior Member
Posts like a Camaro

Join Date: Aug 2003
Location: Oshkosh, WI
Posts: 819
Thanks: 0
Thanked 0 Times in 0 Posts
glorkar is on a distinguished road
Default

It'* really simple. The part inside that holds the pull-out piece tends to break though.
glorkar is offline   Reply With Quote
Old 12-19-2004, 10:25 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2003
Location: jacksonville, florida
Posts: 221
Thanks: 0
Thanked 0 Times in 0 Posts
laydbaak is on a distinguished road
Default

Thanks guys.
laydbaak is offline   Reply With Quote
Old 12-20-2004, 01:44 PM   #5
Senior Member
Posts like a 4 Banger

Join Date: Aug 2004
Posts: 104
Thanks: 0
Thanked 0 Times in 0 Posts
CrazyDaveFYM is on a distinguished road
Default

what size/kind of bulb goes in there? both of mine are out and i'd rather have the bulbs before I start tearing out my interior

Dave
CrazyDaveFYM is offline   Reply With Quote
Old 12-20-2004, 02:15 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

sylvania PN# DE3175
1993 SLE is offline   Reply With Quote
