Default Fuel Rail Discussion/Help

i have a L67 fuel rail from a 95 L67 Buick Riv

here is what the connector from the vehicle to the rail looks like


and then there is another quick connect on the nylon Fuel Lines shown here


here is the Rail with the Metal quick connects removed





here is the problem....

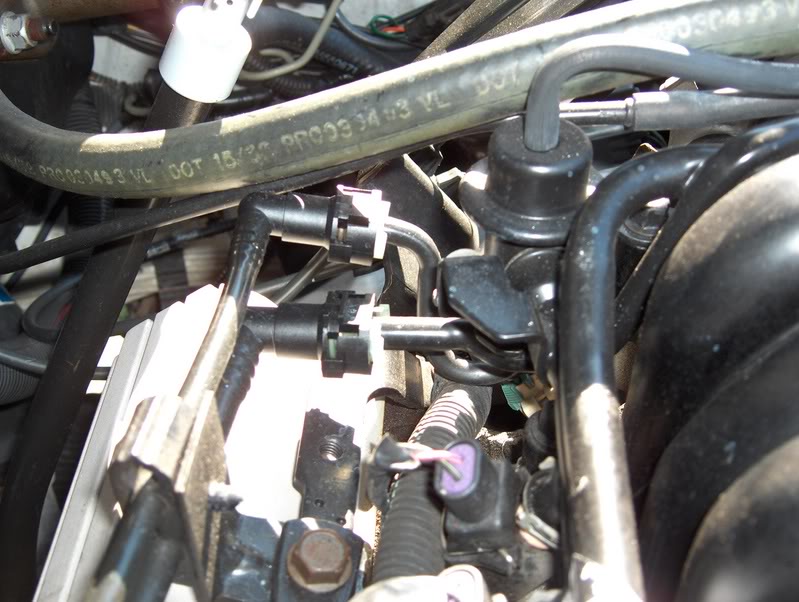

On my car i have this different quick connects at the fuel rail shown here
Name:  L67hybridswap014.jpg
Views: 41
Size:  83.8 KB

and the nylon fuel lines are one piece there is not another quick connect as there is on the L67 fuel lines

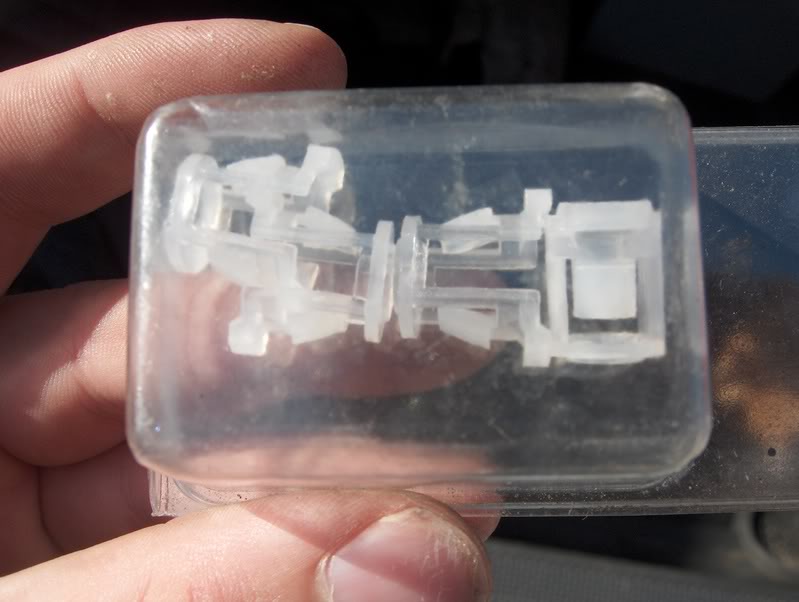

So i thought that i have some of the Fuel line connectors and i though i would see if they would work
Name:  L67hybridswap016.jpg
Views: 41
Size:  50.3 KB

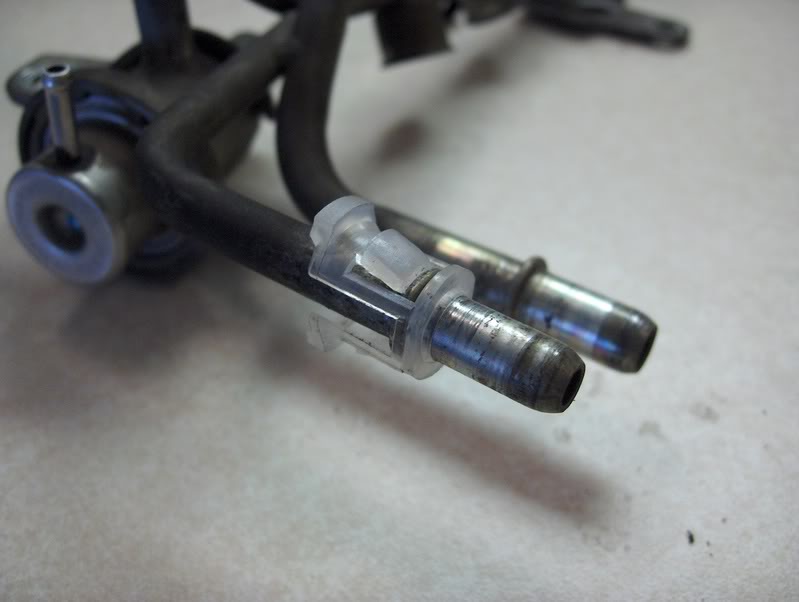

here is the quick connect on the L67 Rail
Name:  L67hybridswap019.jpg
Views: 38
Size:  37.4 KB

NOW...the important part....

will the nylon fuel lines that i have on my car currently, accept the L67 fuel rail with the new quick connect clips on??
1993 SLE is offline   Reply With Quote
Old 02-05-2007, 04:37 PM   #2
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

I believe it will... Take the L67 nylon line and try the other side and see if that works..

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 02-05-2007, 04:55 PM   #3
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

ok Well did slip on on but didnt totally connect it because i was worried that i couldnt get it off again

does any one have pics of the Series One L67 Fuel LINES and where they connect to the rail

im wondering why the Buick Lines are so different, or is this the case on the Bonnevilles as well.....

remember the L27 dont have a second disconnect like the Lines i have...the lines run in one piece all the way to the fuel filter....is the L67 this way as well?
1993 SLE is offline   Reply With Quote
Old 02-05-2007, 05:04 PM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Pat, mine look like yours. I have a fuel rail of a 95 SSEi as well with the same connectors. I don't know why the Buick rail would be different.
J Wikoff is offline   Reply With Quote
Old 02-05-2007, 05:18 PM   #5
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by J Wikoff
Pat, mine look like yours. I have a fuel rail of a 95 SSEi as well with the same connectors. I don't know why the Buick rail would be different.
When you say they look like mine, do you mean the Lines that are on my car currently or the Lines that are on the L67 Rail

just trying to get everything organized.....
1993 SLE is offline   Reply With Quote
Old 02-05-2007, 06:44 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Others have done this.. I remember hearing the only thing they had to do was weasel the lines to the different location for the connection. Pretty sure they'll click right on.
BillBoost37 is offline   Reply With Quote
Old 02-05-2007, 07:40 PM   #7
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

FYI (without measuring) your rail looks exactly the same as the 93 L67 fuel rail I have in hand.
BonneMeMN is offline   Reply With Quote
Old 02-05-2007, 08:25 PM   #8
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

I know the fuel rails are the same for the L67'*....


im more concerned about the quick connects that are on the car and that they look like

can anyone with a Series 1 L67 please get pics of their fuel line quick connects at the fuel rail?
1993 SLE is offline   Reply With Quote
Old 02-05-2007, 08:46 PM   #9
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

ok.......doing my own research here

looking thru zillamotorsports.com

i found the following pics

here i can see a part of the TOP of the fuel line, even though the fuel rail is gone


here is another pic....look at the blue glove


here is the fuel rail, and it appears as the clips are on the fuel rail like i have experimented with in the first post

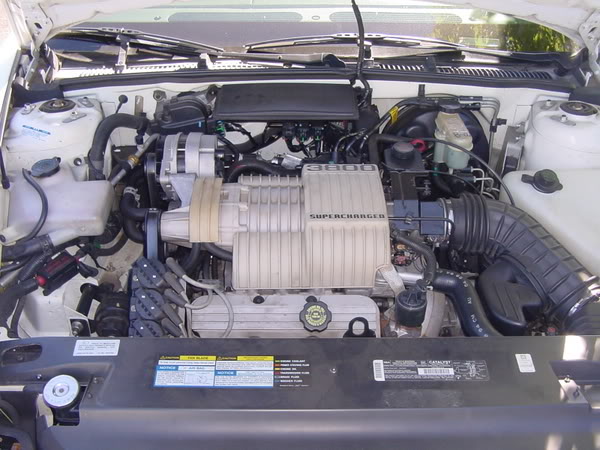

now the interesting part....Bill has pics from a 95 Riv...you can see the fuel lines and the metal clips, and the yellow retainers.....



now it appears as teh fuel lines on a Riv go towards the drivers side
Name:  riv3.jpg
Views: 36
Size:  65.4 KB


this would explain the difference in the connector and why the Riv Fuel lines have another quick connect in line

i hope im on the right track, but would like Bill W to confirm since i took the pics from Him and he has personal experience in this
1993 SLE is offline   Reply With Quote
Old 02-05-2007, 09:18 PM   #10
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I've got the same quick connectors on my car as on your car.
J Wikoff is offline   Reply With Quote
