Default firing order?

could anyone pls help me with the firing order on a 94 SC??
Brad_94 is offline   Reply With Quote
Old 12-03-2007, 08:57 PM   #2
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

on the coils, from top to bottom it goes,6-3-2-5-4-1

on the eng, the front or side thats closest to the rad it is 1-3-5, starting on the pass side.

in the back eng side, is 2-4-6. also starting on pass side

that help?
samueljackson is offline   Reply With Quote
Old 12-03-2007, 08:59 PM   #3
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

1-6-5-4-3-2

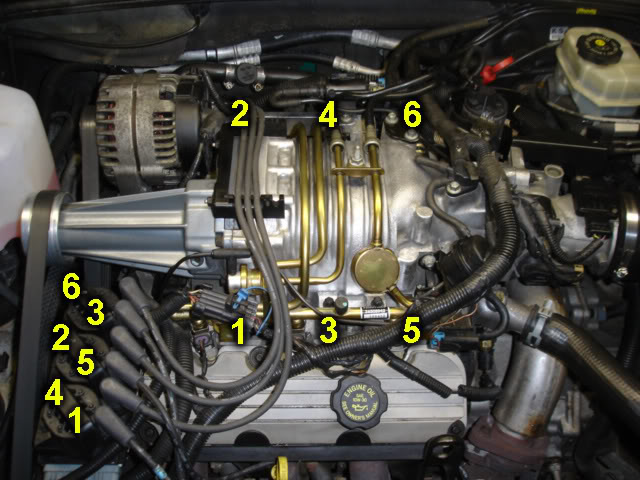

Name:  plugwires.jpg
Views: 173
Size:  73.9 KB
Technical Ted is offline   Reply With Quote
Old 12-03-2007, 09:05 PM   #4
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by Technical Ted
1-6-5-4-3-2

thats much more helpful. nice job ted. a lil ms paint can goa long way.
samueljackson is offline   Reply With Quote
Old 12-03-2007, 09:15 PM   #5
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

IIRC it was Harofreak that made that image.
Technical Ted is offline   Reply With Quote
Old 12-03-2007, 09:51 PM   #6
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

yup thats mine.. but feel free to use it!

I saw this post as I was heading out the door before and I couldn't find the image.. thanks Ted
harofreak00 is offline   Reply With Quote
Old 12-04-2007, 09:32 AM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2006
Location: southwestern Ontario, Canada
Posts: 94
Thanks: 0
Thanked 0 Times in 0 Posts
Brad_94 is on a distinguished road
Default

thanx allo t, for your help, is there any coil pack upgrades for my 94 SC?
Brad_94 is offline   Reply With Quote
Old 12-04-2007, 10:46 AM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Yes. 97 and newer L67 (GTP, RegalGS, SSEi) coils are a little bit warmer than yours, and the MSD 8224 coils are slightly warmer than those.

But for the cost vs. benefit, it'* not worth upgrading until you crap a coil or two. Some people don't even notice the difference, and a majority of the top-25 cars here are still running on stock coils.
willwren is offline   Reply With Quote
Old 12-04-2007, 01:52 PM   #9
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2006
Location: southwestern Ontario, Canada
Posts: 94
Thanks: 0
Thanked 0 Times in 0 Posts
Brad_94 is on a distinguished road
Default

cool thanx for the reply ,are roller rockers worth the money? or only with a higher duration cam??
Brad_94 is offline   Reply With Quote
