Default Engine blew up...debris in intake.

Hello all,my question is, I've had a total engine failure and when I went to remove the lower intake manifold under the supercharger I noticed that there was metal debris strewn throughout the manifold. Can I clean out the manifold and re-use it on a new long block without risking destruction of the new block, or should I source a replacement manifold and not risk it.

Any thoughts?


Jason

1998 Bonneville SSei SC3800 v6
138k kilometers
new longblock from 03 Grand Prix GTP
Mantras is offline   Reply With Quote
Old 03-05-2008, 09:21 AM   #2
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Debris in your LIM on a SC car? That'* a first for us.

Can you post some pics?
vital49 is offline   Reply With Quote
Old 03-05-2008, 09:35 AM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

what was the failure?

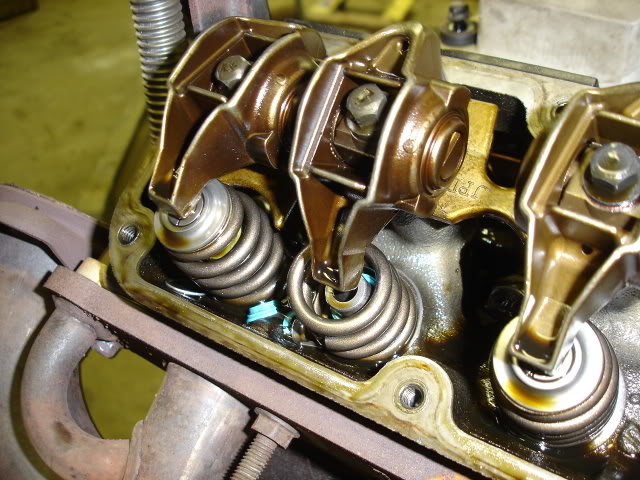

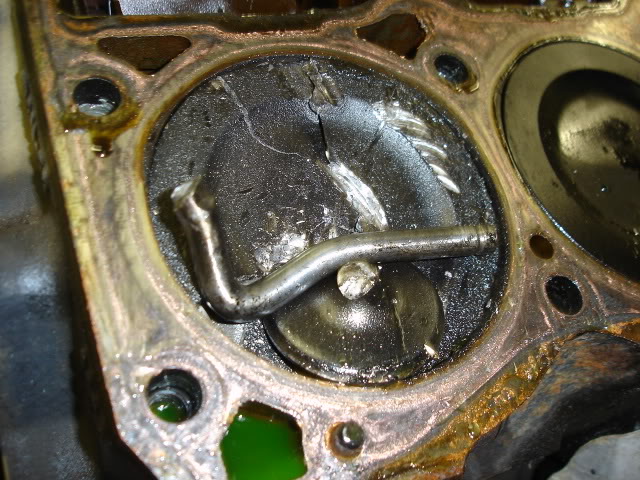

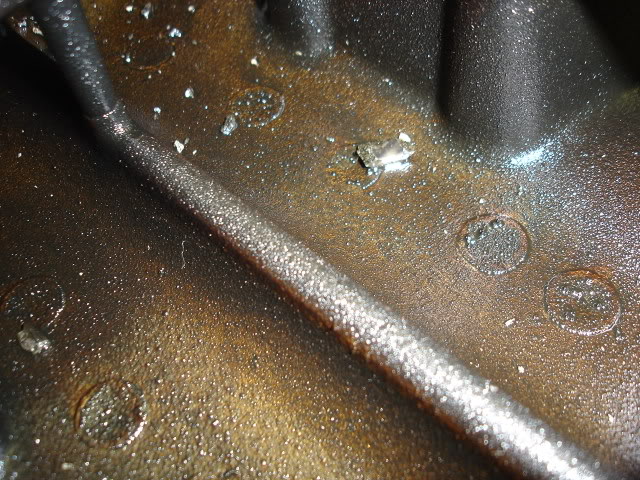

When my valve spring broke and caused a valve to drop, I had metal shavings in my LIM
Name:  DSC06951.jpg
Views: 9
Size:  88.8 KB
Name:  DSC06969.jpg
Views: 15
Size:  95.2 KB
Name:  DSC06925.jpg
Views: 10
Size:  110.6 KB

You should be able to clean out the LIM and reuse it. Castrol Super Clean works best.

Don't forget to use the new aluminum LIM gaskets on your buildup
harofreak00 is offline   Reply With Quote
Old 03-05-2008, 01:44 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2007
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Mantras is on a distinguished road
Default

Thanx for looking guys. Here are some pix of the debris inside the manifold. What happened was the cam broke, ripped a piece out of the cylinder wall and shattered the piston. There'* even a little bit of debris in the supercharger that I'm going to have to remove
by taking it apart.

Pictures are here, here, here, here and here.
Mantras is offline   Reply With Quote
Old 03-05-2008, 01:53 PM   #5
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

I would assume those are pieces of either a valve or a piston.

As was said, I'd think you could reuse the LIM...just be sure it wasn't severely damaged in whatever runner(*) goes to the failed cylinder(*), and make sure you get every single piece of loose metal shaving out.

You didn't mention, but have you looked at your */c rotors and the rotor bores in the casing?
agrazela is offline   Reply With Quote
Old 03-05-2008, 01:53 PM   #6
Senior Member
Posts like a Northstar

Join Date: Feb 2003
Location: Sacramento, CA WCBF '06, '07 survivor
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
rrounds is on a distinguished road
Default

Little bit of JB weld and it will be good for another 100,000 miles.
what the hel let loose? A valve or spring?

ROD
rrounds is offline   Reply With Quote
Old 03-05-2008, 01:54 PM   #7
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Dang. I see piston rings in the oil pan.
J Wikoff is offline   Reply With Quote
Old 03-05-2008, 01:59 PM   #8
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Wow! I have never heard of a cam breaking
harofreak00 is offline   Reply With Quote
Old 03-05-2008, 09:18 PM   #9
Junior Member

Join Date: May 2006
Location: BonnevilleHell
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
clm2112 is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
Wow! I have never heard of a cam breaking
I have, but not like this..usually busting a connecting rod or crank will break the cam just by impact of the rod flopping around.

My advice is to assume the worse with that much trash inside the motor. I'd be looking for an entire replacement motor. You may be able to salvage some parts off the old grenade, but you got to inspect every inch of every part to ensure you got all the trash out and discarded all the damaged parts.
clm2112 is offline   Reply With Quote
Old 03-05-2008, 09:34 PM   #10
Senior Member
Posts like a Camaro

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

Holy Crap.

That'* all I have to say about that...

EDIT: What did that sound/feel like when it happened?
