Default empty bolt hole, unplugged connector

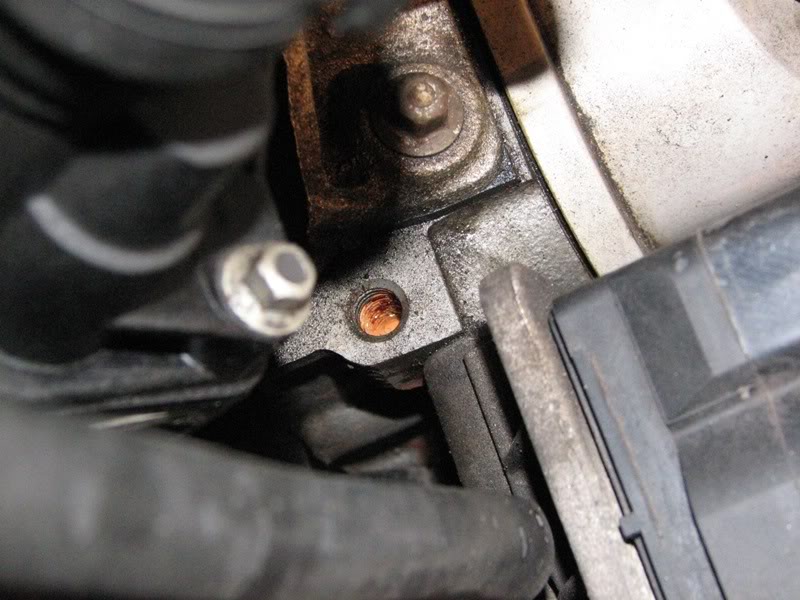

would this be a problem? looks like there was a bolt there at one time...
(pcv valve in top left for orientation purposes)
Name:  hole.jpg
Views: 1
Size:  82.4 KB

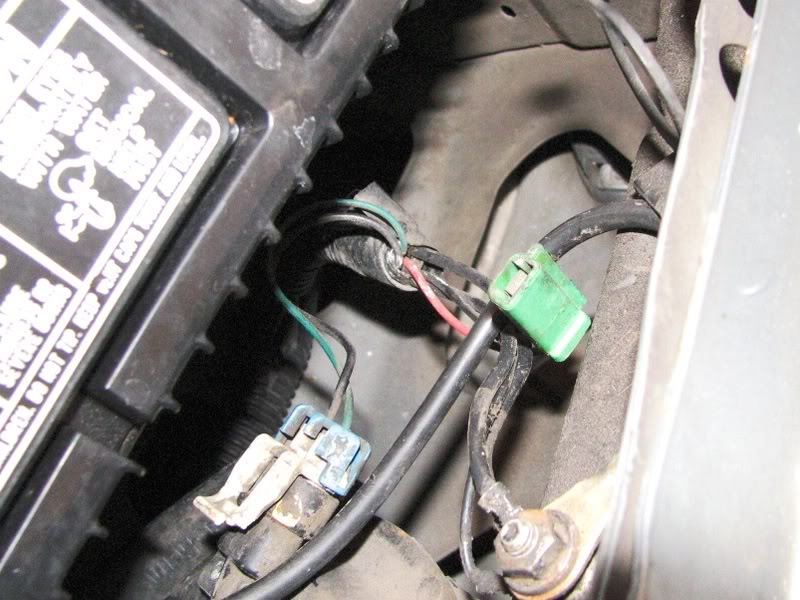

what is this green connector next to the battery for? nothing in sight that looks like it should plug into

Name:  connector.jpg
Views: 1
Size:  101.9 KB
Bonnevillan is offline   Reply With Quote
Old 03-24-2008, 05:49 PM   #2
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

Bolt hole, nothing goes in that one.

Green connector...I'm guessing horn? (I really don't know)
agrazela is offline   Reply With Quote
Old 03-24-2008, 05:50 PM   #3
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

that'* a relief. it just looks like loc-tite or something was in there.

no, that blue and white harness goes to the horn. it works fine.
Bonnevillan is offline   Reply With Quote
Old 03-24-2008, 05:53 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Nothing ever went into that threaded hole in your cylinder head. The two heads are interchangeable, so that may be used if you flip it to the rear. I'd have to check.

The green connector is your fuel pump jumper. Apply 12V to it (jumper to the positive terminal of the battery) and your pump will run. It'* been talked about in several topics recently.
willwren is offline   Reply With Quote
Old 03-24-2008, 05:56 PM   #5
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

ah, thanks
built in diagnostics
