Wait a minute......if you're going to do an override, let me steer you in the direction of the PCM wiring harness instead of sending you through the firewall to the relay.

That'* how I did my SSEi the last time. Much better, easier wiring, same effect. If you want to do this, send me a PM to remind me, and when I get home, I'll give you the exact wire to tap into on the PCM wiring harness, including taking a very detailed pic of it on my 95. I have no hushpanel installed right now (awaiting a new airmix actuator), so it'* perfect timing.
willwren is offline   Reply With Quote
Old 05-07-2007, 10:18 PM   #32
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Please note that this is for 94/95 Bonnevilles ONLY:

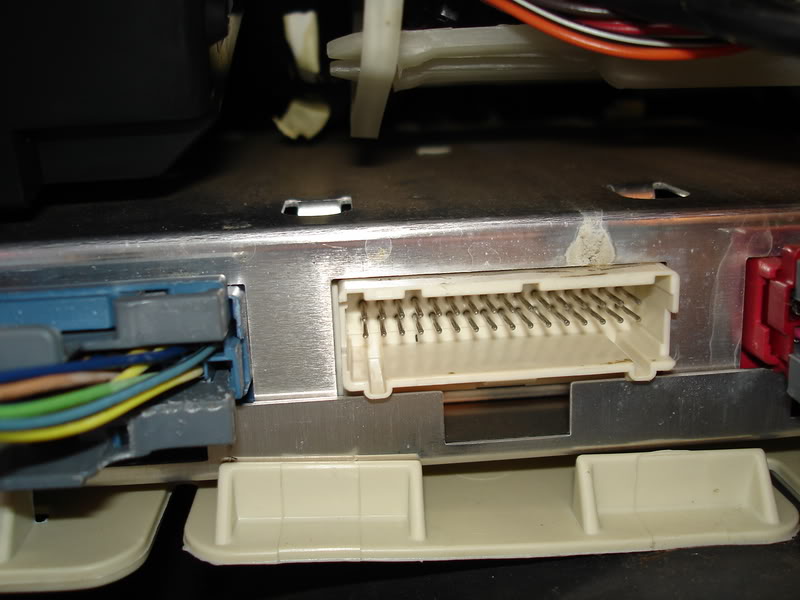

Remove the passenger side hush panel. Pull the CENTER WHITE connector. Blue on the left, red on the right, white in the center:

Name:  DSC04026.jpg
Views: 1
Size:  61.0 KB
In this pic, the rear of the car is TOP, the front of the car is BOTTOM, the driver'* side is LEFT, and the passenger side is RIGHT. You're looking UP, facing forward.



After you pull the connector, you're looking for a dark blue wire in slot D10. One side of the connector ONLY will have a blue wire in hole #10. In these pics, if you look at the top row (not marked, but not the C side), you can count from left to right 1-whatever. My thumb is next to slot 1.
Name:  DSC04027.jpg
Views: 1
Size:  47.8 KB

Name:  DSC04028.jpg
Views: 1
Size:  57.1 KB

Name:  DSC04029.jpg
Views: 1
Size:  44.3 KB

Provide an ALTERNATE ground through a switch for this wire. Don't cut it and leave it dangling on either end. Tap INTO it, providing another path to ground through a switch. When you turn the switch on, the fans will come on high.
willwren is offline   Reply With Quote
Old 05-07-2007, 11:38 PM   #33
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2005
Location: Brampton, Ontario
Posts: 3,014
Thanks: 0
Thanked 0 Times in 0 Posts
Maymybonnieliveforevr is on a distinguished road
Default

Will, thanks so much for the great write up.

Now just so there'* no misunderstanding since if I wire this up wrong, I'm not going to NEBF due to the fact that the Bonne probably won't start.


I tap into the dark blue wire in slot D10 (the wire that is actually touching the grey plastic clip on the white connector to the PCM. (see picture below) I'm taping into it with the Blue splice connector on my white wire (I've supplied). I must NOT cut D10. since it must remain one solid piece. My white wire continues to a switch and the other side of the switch (black wire) goes to ground.

What the switch is actually doing when turned on is supplying ground to D10 (dark blue) wire on the PCM.

Once installed and the switch is turned on, both cooling fans will turn on.

I will place electrical tape at the end of the switch so as to not have exposed connectors.

Is all this information correct?

D10 is the raised dark blue wire, it has an empty slot to the left and green wire to the right




White wire taps into D10 (dark blue wire) on PCM


Black wire to ground on car.
