Default That Don't Look Right?!?!

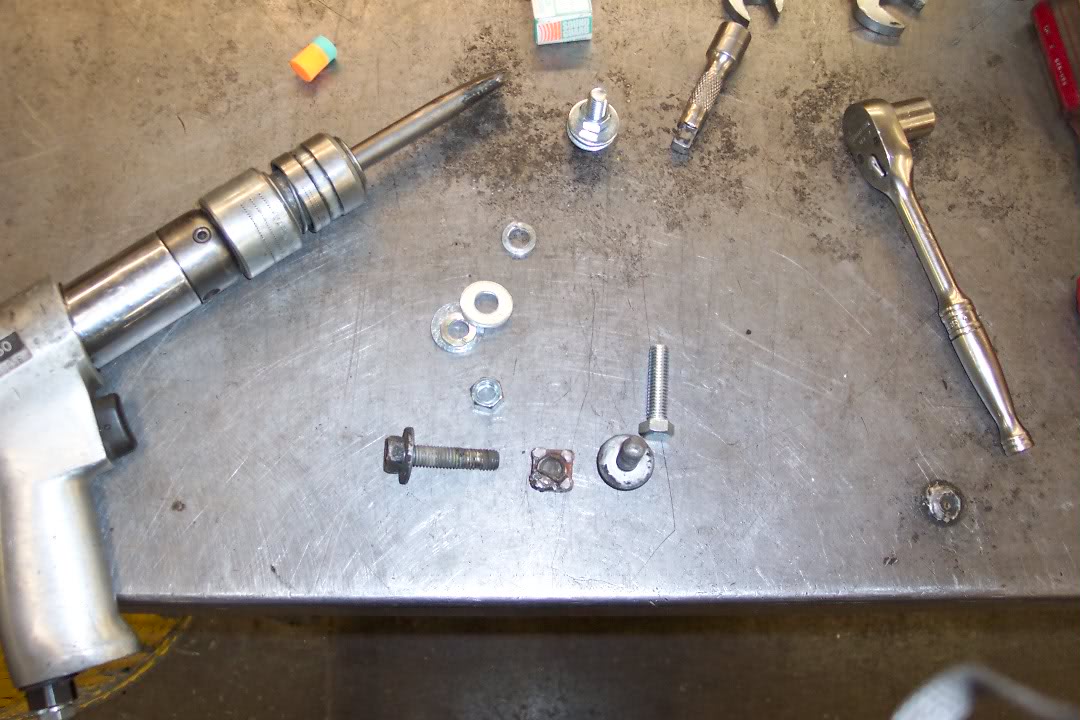

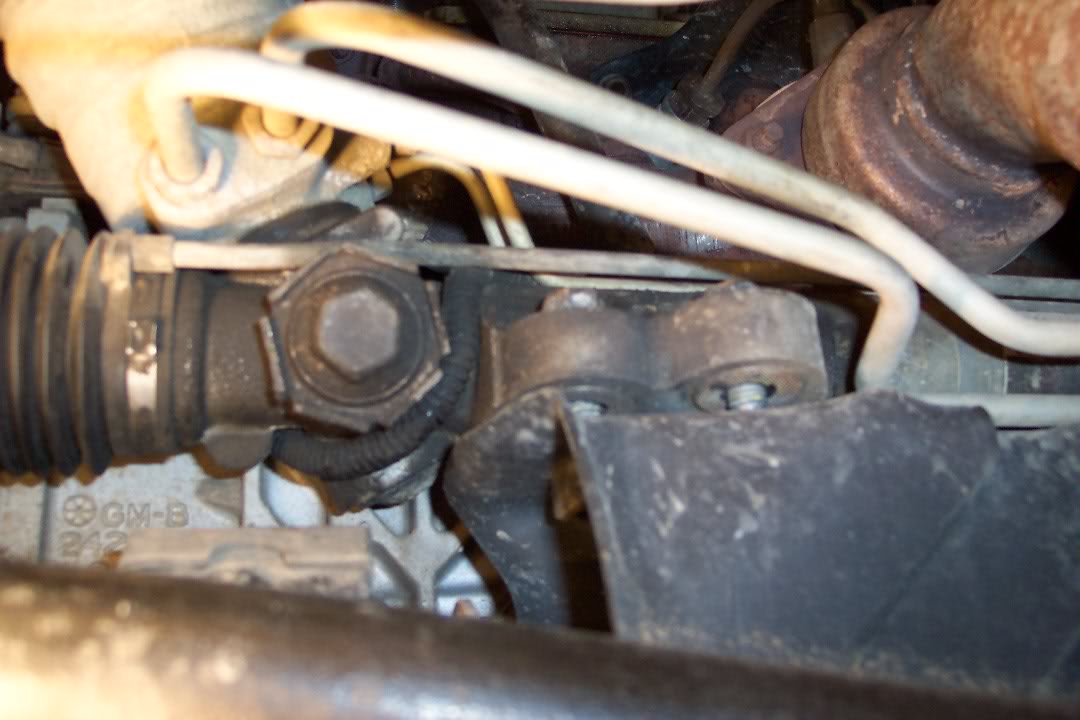

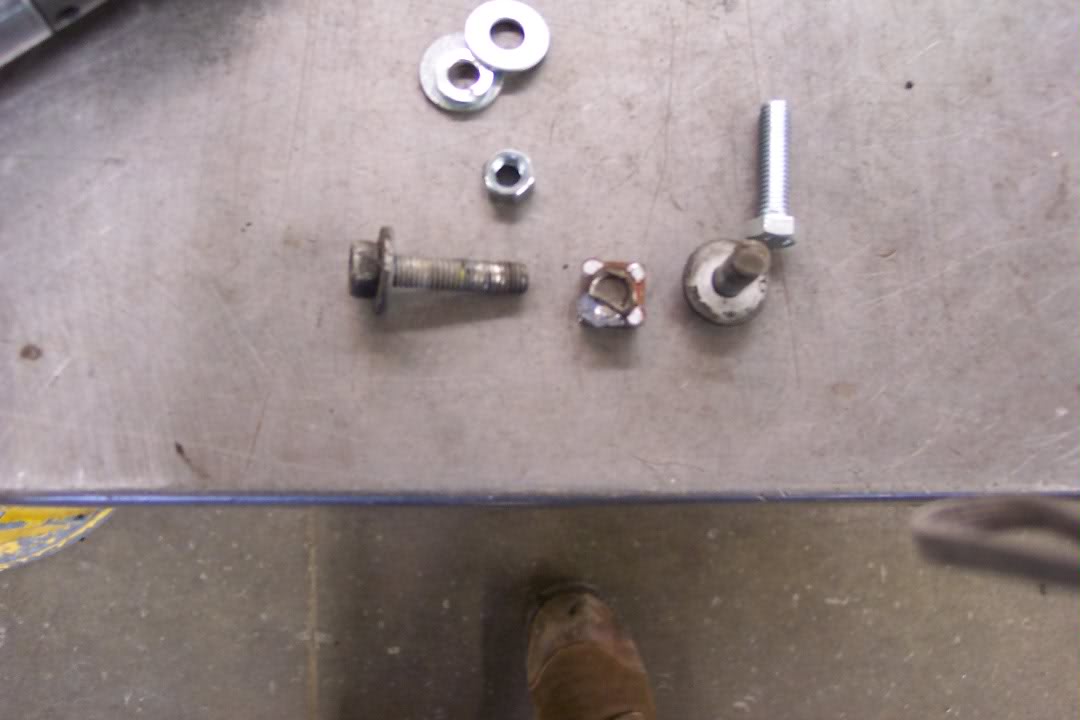

Every time I turned the sttering wheel, I kept hearing a clunking sound and could never figure out what it was until today. There are 4 bolts that hold the p/* steering gearbox in place, 2 main bolts that are righ under the steering gear and 2 on the passenger side for extra support. The 2 bolts on the drivers side broke and stripped. While I was standing under the car, facing forward, I grabbed the drivers side tire, pullde on it and was able to make the gearbox pick up off the frame about 1.5". The 2 nuts that were welded on the underside of the frame had a bolt broken out of it, but still attached and the other was broken off theframe with the bolt strripped in it, but still holding on. I used an air impact hammer and chisel to pop the one nut that was still attached to the frame and and removed the other stripped bolt and nut with all new hardware. Phew.

http://s74.photobucket.com/albums/i2...t=000_0013.flv :o
Name:  000_0015.jpg
Views: 10
Size:  75.7 KB
Name:  000_0014.jpg
Views: 10
Size:  71.2 KB
Name:  000_0018.jpg
Views: 10
Size:  53.8 KB
Name:  000_0016.jpg
Views: 10
Size:  132.4 KB
Cheetah is offline   Reply With Quote
Old 10-23-2006, 01:10 AM   #2
Senior Member
Posts like a 4 Banger

Join Date: Oct 2006
Posts: 141
Thanks: 0
Thanked 0 Times in 0 Posts
motorhead is on a distinguished road
Default

I've seen that once before. No idea what the root cause is, but this should not happen.
motorhead is offline   Reply With Quote
Old 10-23-2006, 02:13 AM   #3
Senior Member
Posts like a Camaro

Join Date: Apr 2006
Location: Coon Rapids, Minnesota
Posts: 936
Thanks: 0
Thanked 0 Times in 0 Posts
GreenMachine98 is on a distinguished road
Default

good thing you got that fixed! im going to take a look at mine, helps me slep at night!
GreenMachine98 is offline   Reply With Quote
Old 10-23-2006, 08:19 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I think I know the root cause


Good find Greg.. Good fix.. Grade 8 or better bolts with lock washers right?
BillBoost37 is offline   Reply With Quote
Old 10-23-2006, 11:31 AM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
I think I know the root cause


Good find Greg.. Good fix.. Grade 8 or better bolts with lock washers right?
The dealer had to replace that entire sub asembly so I am gussing that they did a *%&^ job putting it back in. No Grade 8!! It will be remidied as soon as I get back from my TDY, but just 5 in there right now. Home Depot did not have #8 in the size that I needed. I am guessing that this is why my front end felt so loose when driving it at WCBF
